Toyota C-hr(CHINA)

2018-08 → present · chassis MAXA10,MAXH10 · catalogue 533310 · General

Supported model Data version 2021-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Interior Lamp

10 part groups · 6 illustrations

Illustrations

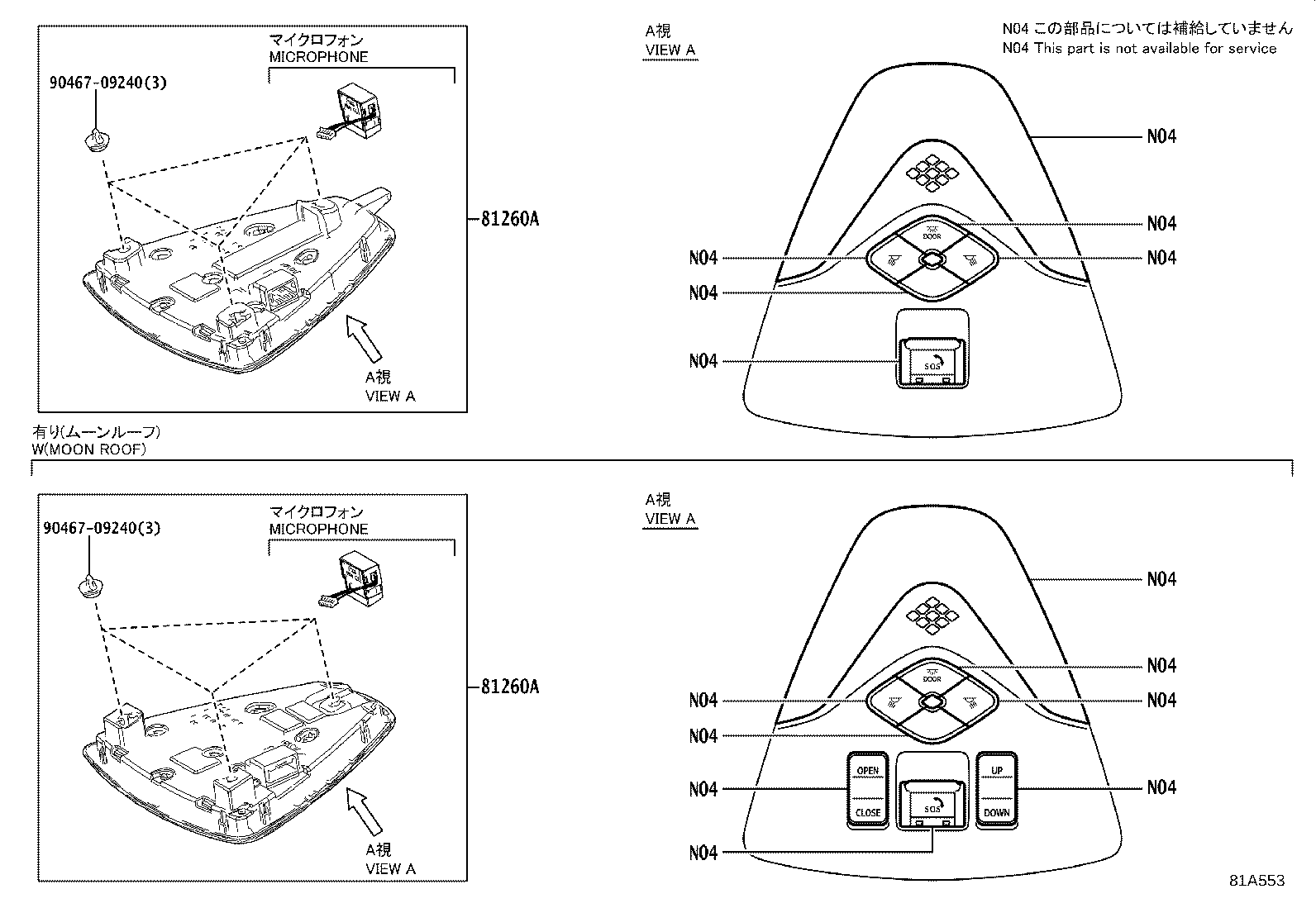

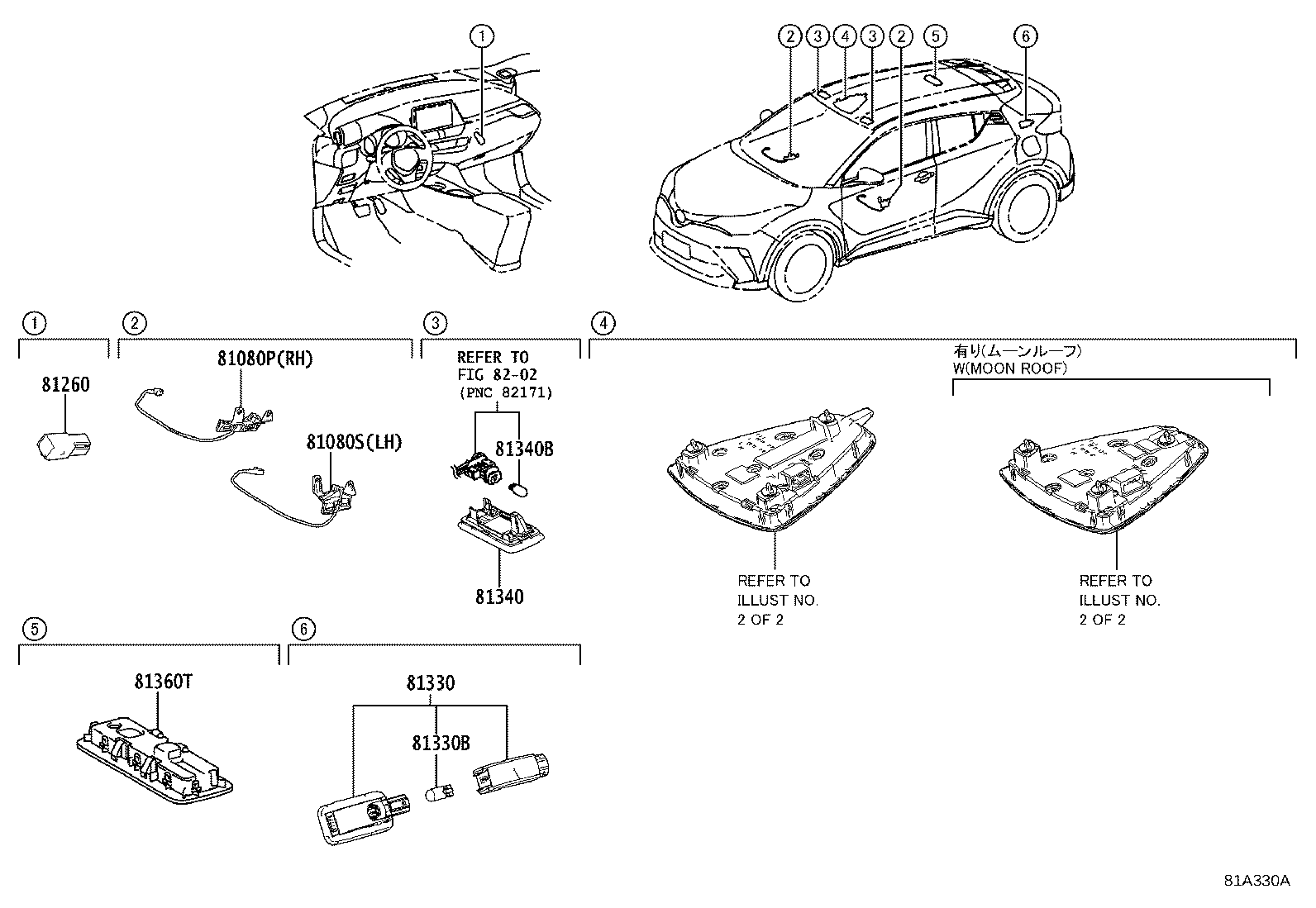

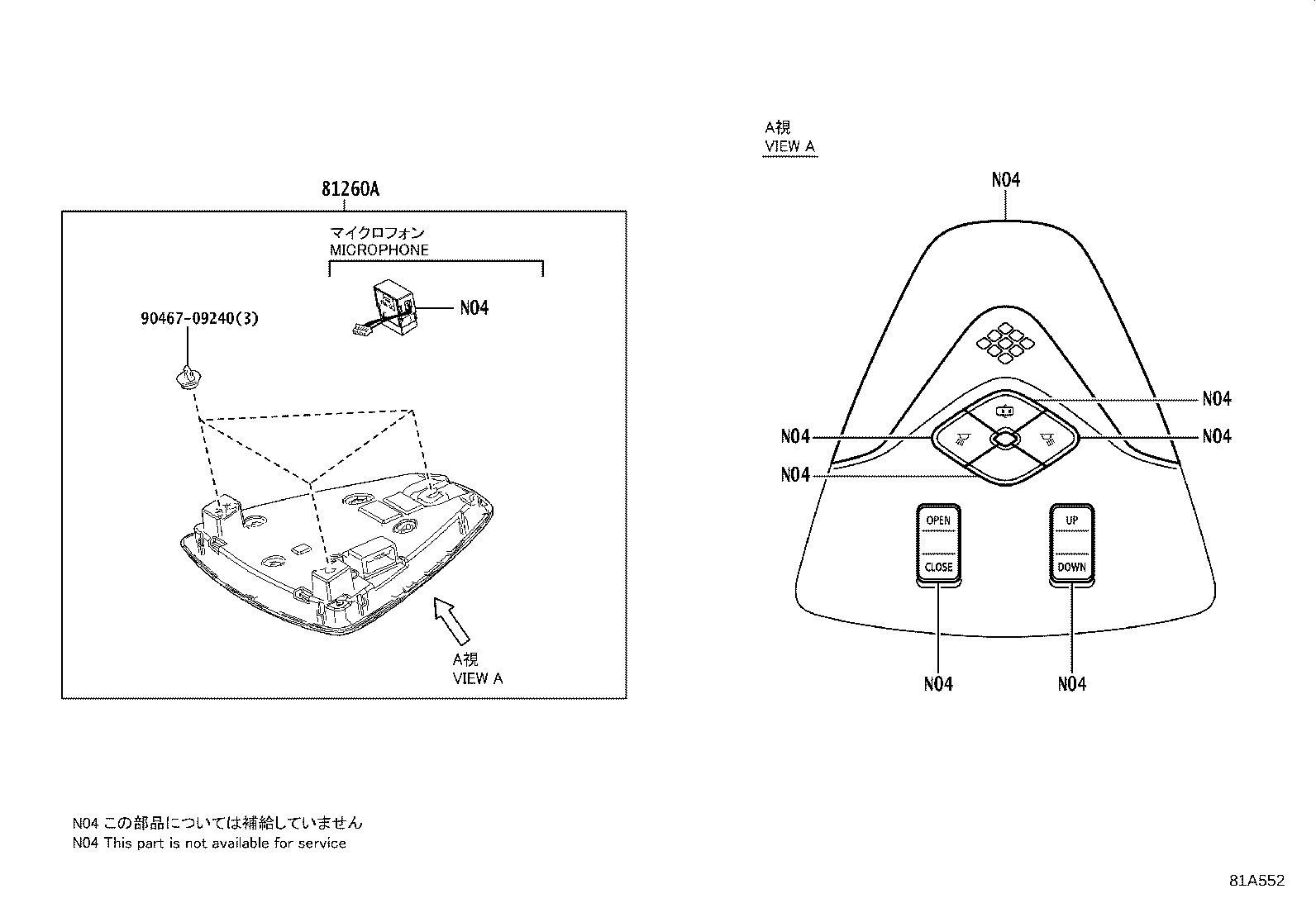

Figure 818666C 818666C 2018-08 → 2021-06 Figure 818666C 818666C 2018-08 → — Figure 81A552 81A552 2018-08 → 2021-06 Figure 81A552 81A552 2018-08 → — Figure 81A330A 81A330A 2021-06 → — Figure 81A553 81A553 2021-06 → —

Part groups

PNCDescription
81080P Lamp Assy, Interior Illumination, NO.1 RH
81080S Lamp Assy, Interior Illumination, NO.1 LH
81260 Lamp Assy, Glove Box
81260A Lamp Assy, Map
81330 Lamp Assy, Luggage Compartment, NO.1
81330B Bulb, Luggage Compartment Lamp
81340 Lamp Assy, Vanity
81340B Bulb (FOR VANITY LAMP)
81360T Lamp Assy, Spot
81391D Holder, Lamp Bulb
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
