Toyota C-hr(CHINA)
2018-08 → present · chassis MAXA10,MAXH10 · catalogue 533310 · General
Supported model
Data version 2021-05
Battery & Battery Cable
23 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|

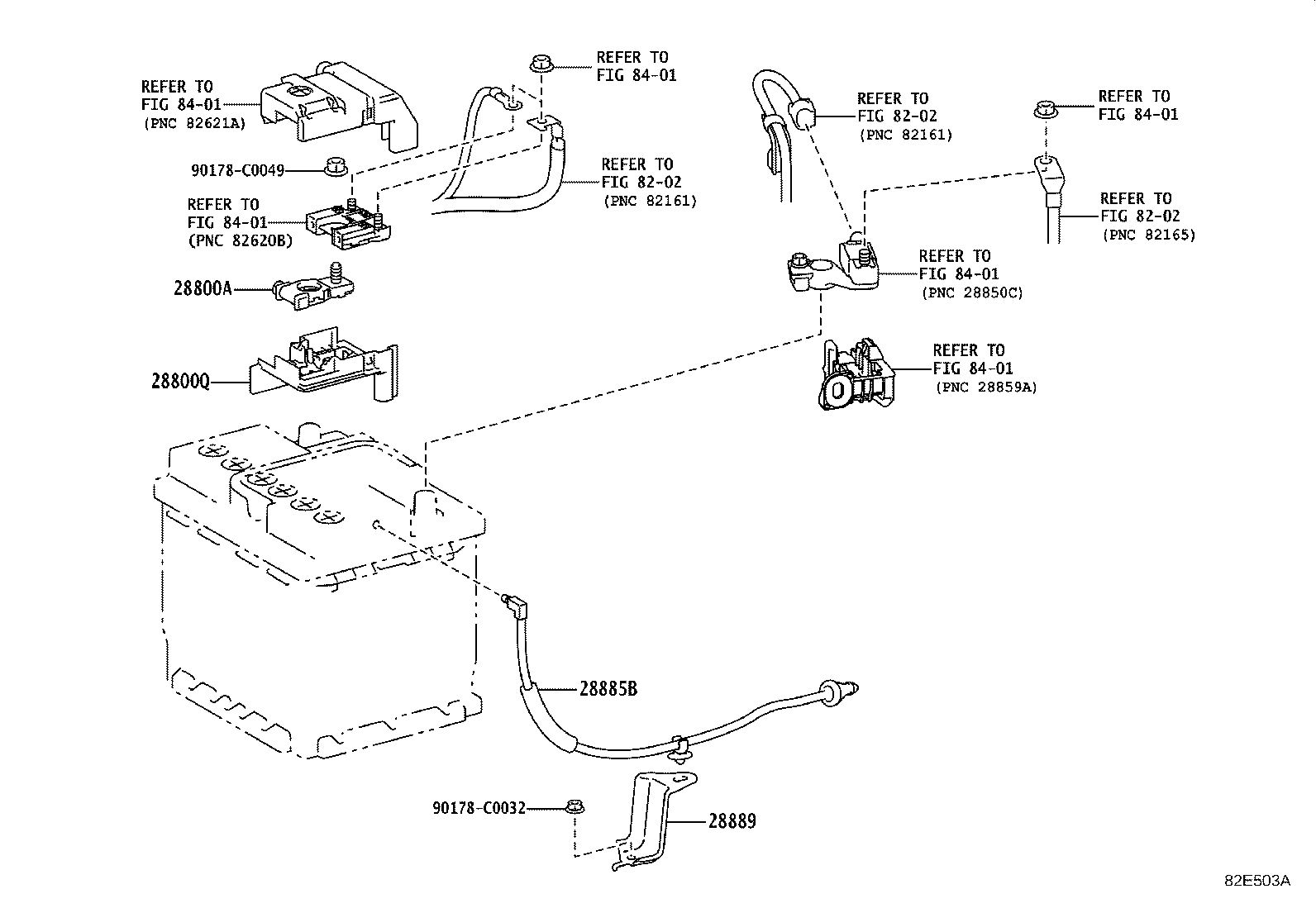

| 28800A | Terminal, Battery Positive |
| 28800Q | Cover, Connector(FOR BATTERY) |
| 28885B | Hose, Battery |
| 28889 | Bracket, Battery Wire Clamp |
| 82651E | Block, Terminal |
| 82685E | Plate, Service Plug Caution |
| 82818P | Protector, Wiring Harness |
| 89892A | Sensor, Battery Voltage |
| G3834 | Grip, Service Plug |

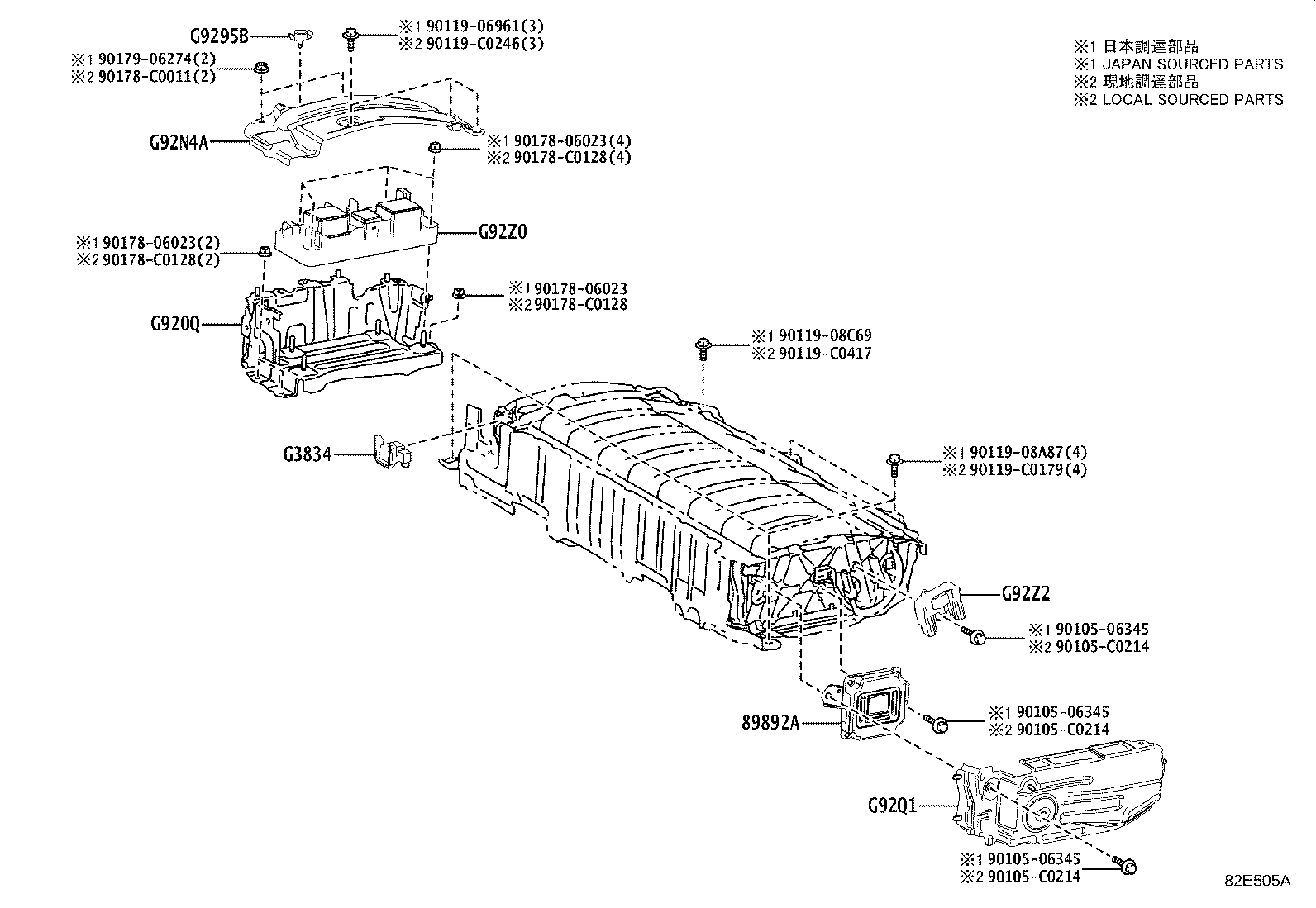

| G920Q | Shield Sub-assy, Hybrid Battery, NO.1 |

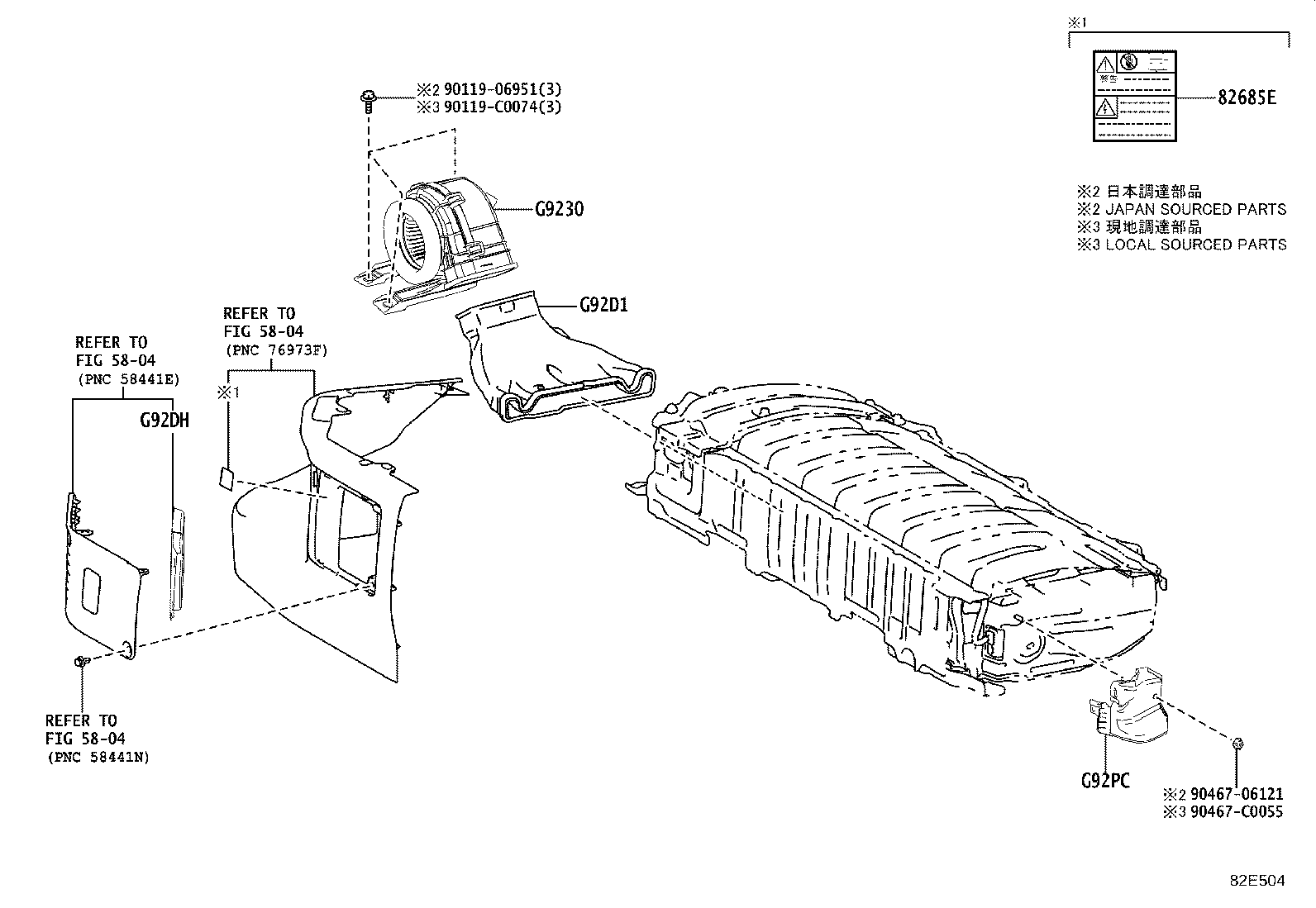

| G9230 | Blower Assy, Battery Cooling |
| G9282 | Thermistor, Hybrid Battery |
| G9289A | Label, Battery Caution |
| G9295B | Striker, Battery Cover Lock |
| G9298 | Clamp, HV Battery |
| G92D1 | Duct, Hybrid Battery Intake, NO.1 |
| G92DH | Filter, HV Battery Intake, NO.1 |
| G92N4A | Panel, HV Battery RH Cover, NO.1 |
| G92PC | Protector, HV Battery, NO.1 |
| G92Q1 | Panel, HV Battery Shield, NO.1 |
| G92Z0 | Block Assy, HV Battery Junction |
| G92Z2 | Block, Hybrid Battery Terminal |

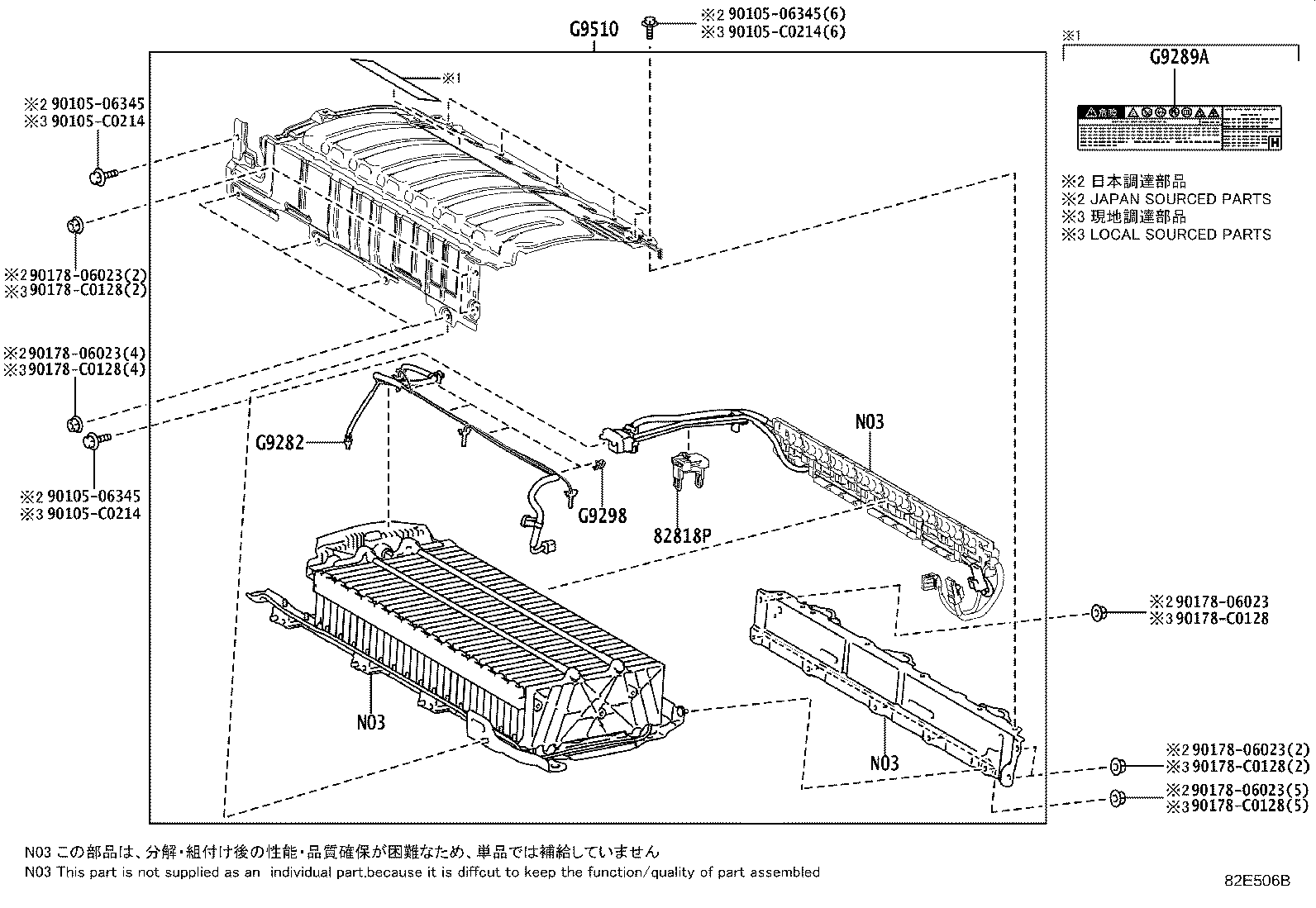

| G9510 | Battery Assy, HV Supply |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
