Toyota C-hr(CHINA)

2018-08 → present · chassis MAXA10,MAXH10 · catalogue 533310 · General

Supported model Data version 2021-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Antenna

7 part groups · 5 illustrations

Illustrations

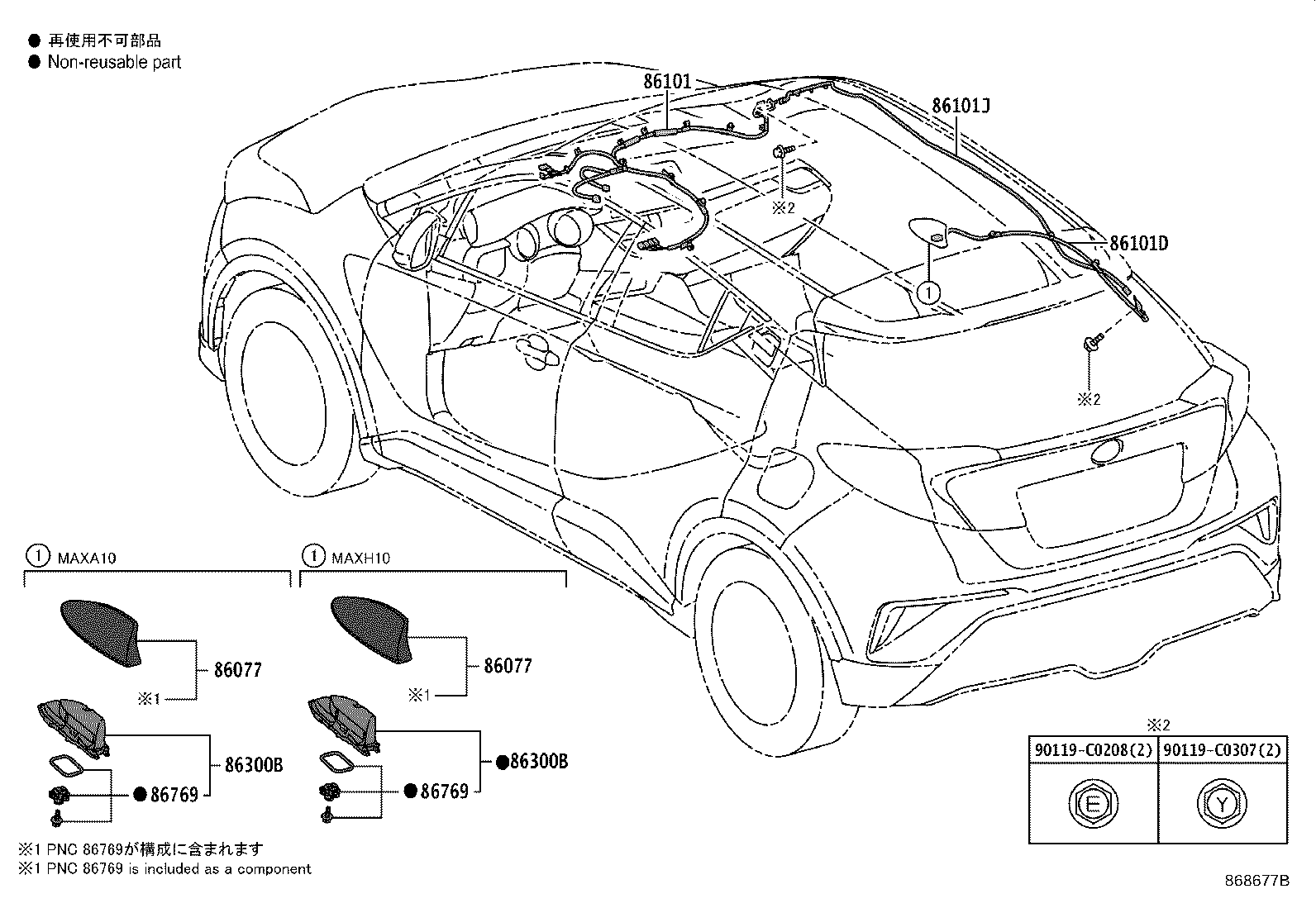

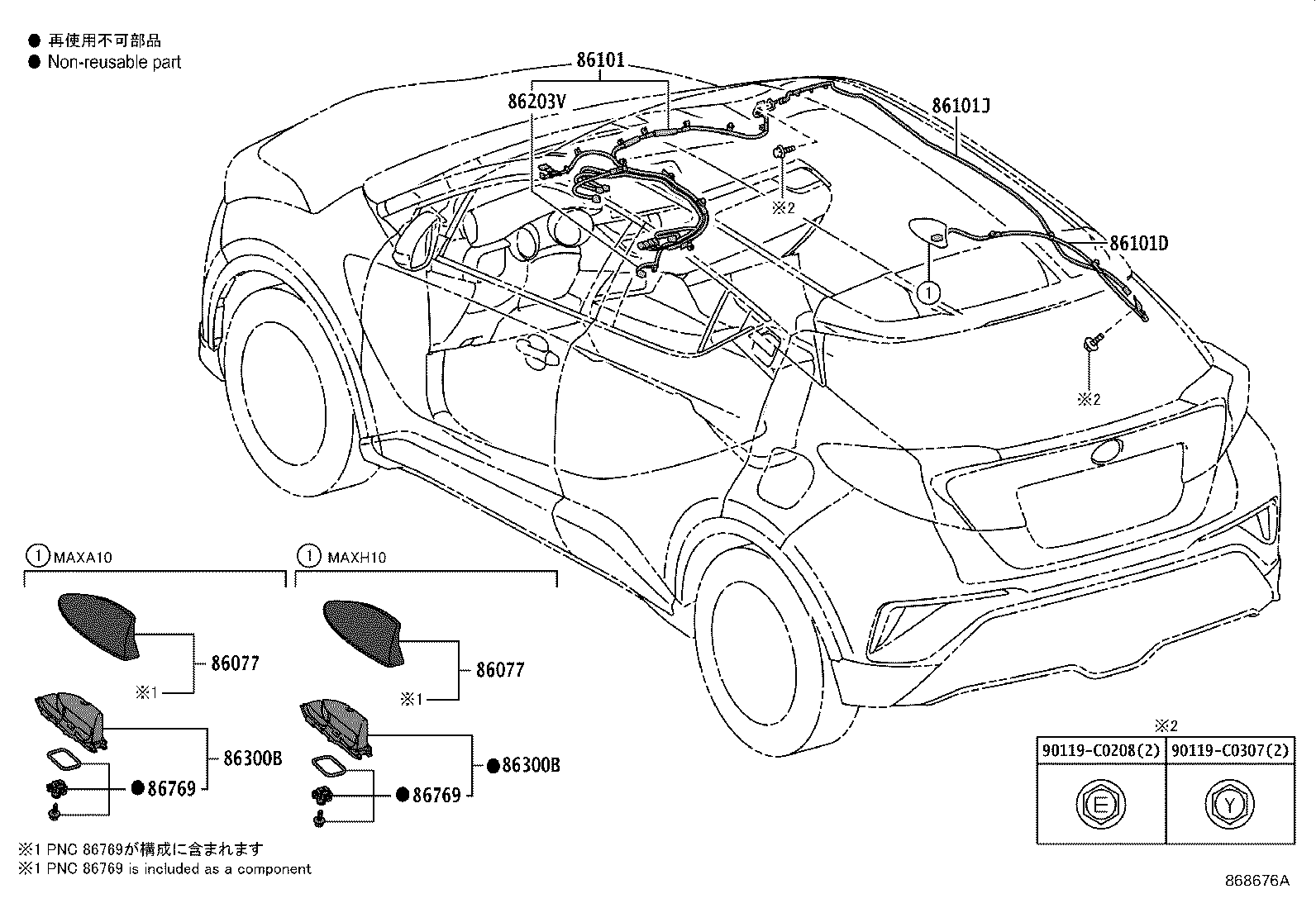

Figure 867300C 867300C 2018-08 → 2021-06 Figure 867300C 867300C 2018-08 → — Figure 868676A 868676A 2021-06 → — Figure 868676A 868676A 2022-03 → — Figure 868677B 868677B 2021-06 → —

Part groups

PNCDescription
86077 Cover Kit, Antenna
86101 Cord Sub-assy, Antenna
86101D Cord Sub-assy, Antenna, NO.3
86101J Cord Sub-assy, Antenna, NO.2
86203V Wire Sub Assy, Radio
86300B Antenna Assy, Amplifier, NO.1
86769 Housing, Roof Antenna
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
