Toyota C-hr(CHINA)
2018-08 → present · chassis MAXA10,MAXH10 · catalogue 533310 · General
Supported model
Data version 2021-05

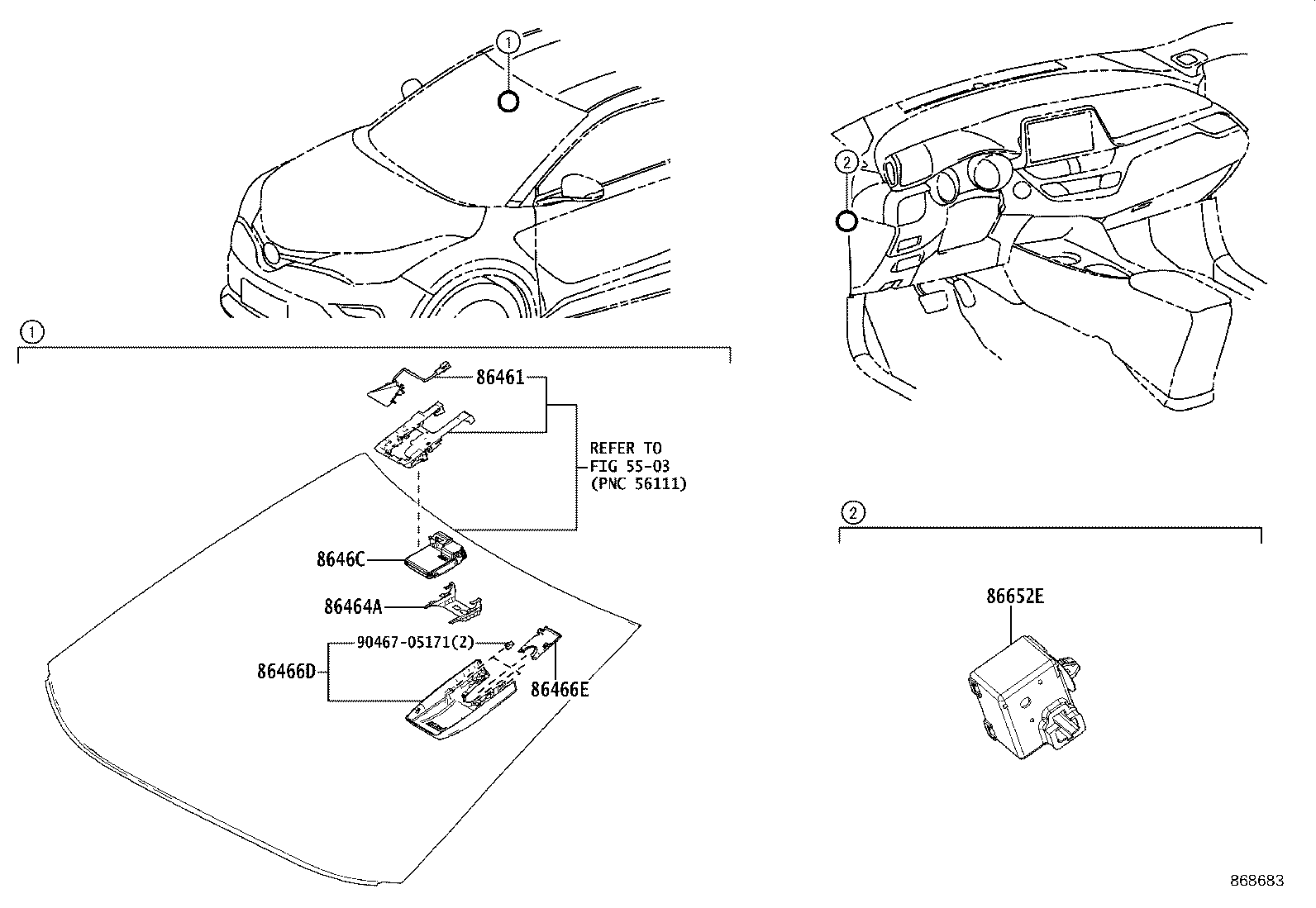

Pre-collision System
6 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 86461 | Hood, Forward Recognition |
| 86464A | Latch, Forward Recognition |
| 86466D | Cover, Forward Recognition, NO.1 |
| 86466E | Cover, Forward Recognition, NO.2 |
| 8646C | Camera, Forward Recognition |
| 86652E | Buzzer, Pre-collision City |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
