Heating & Air Conditioning - Cooler Piping

18 part groups · 5 illustrations

Illustrations

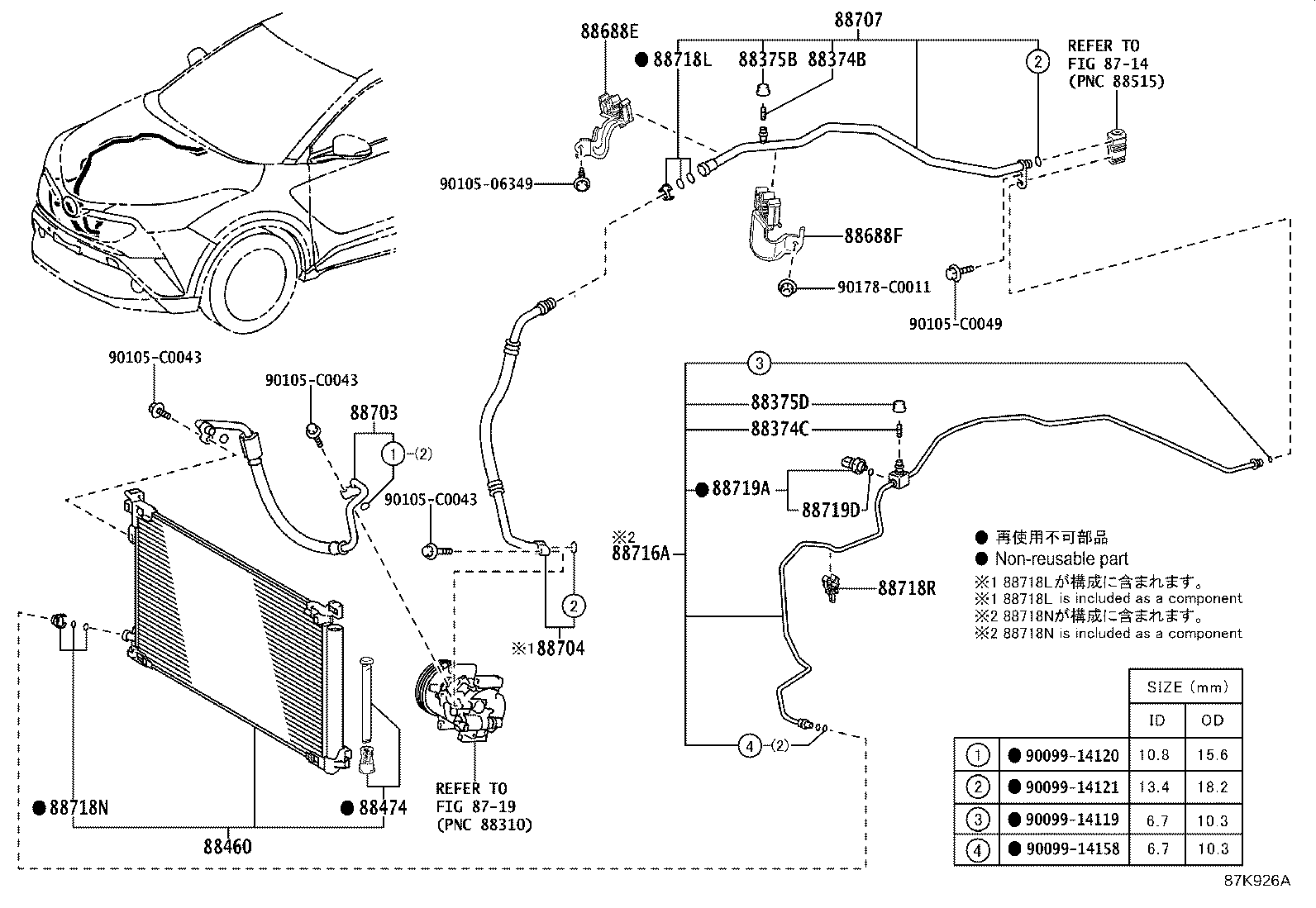

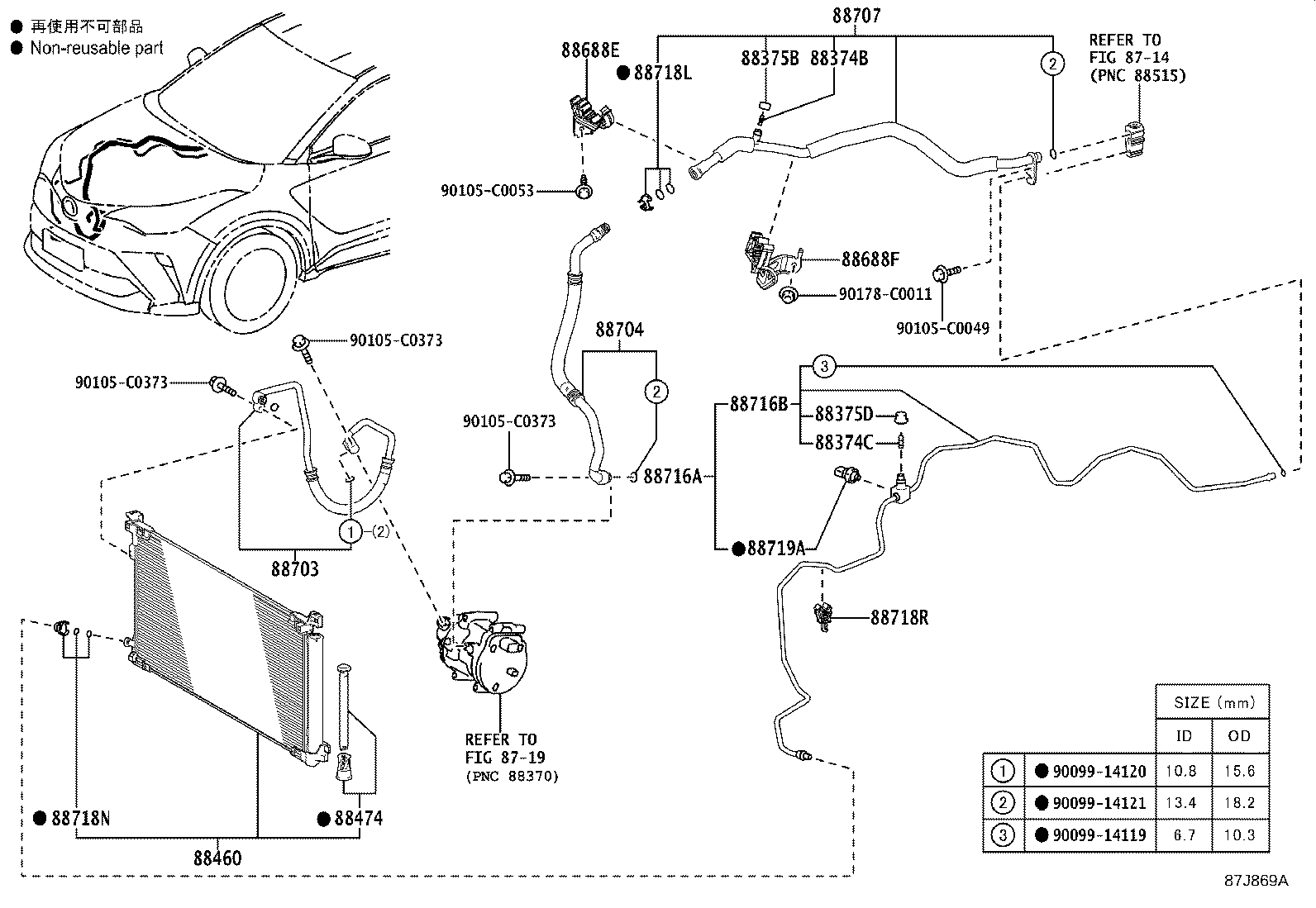

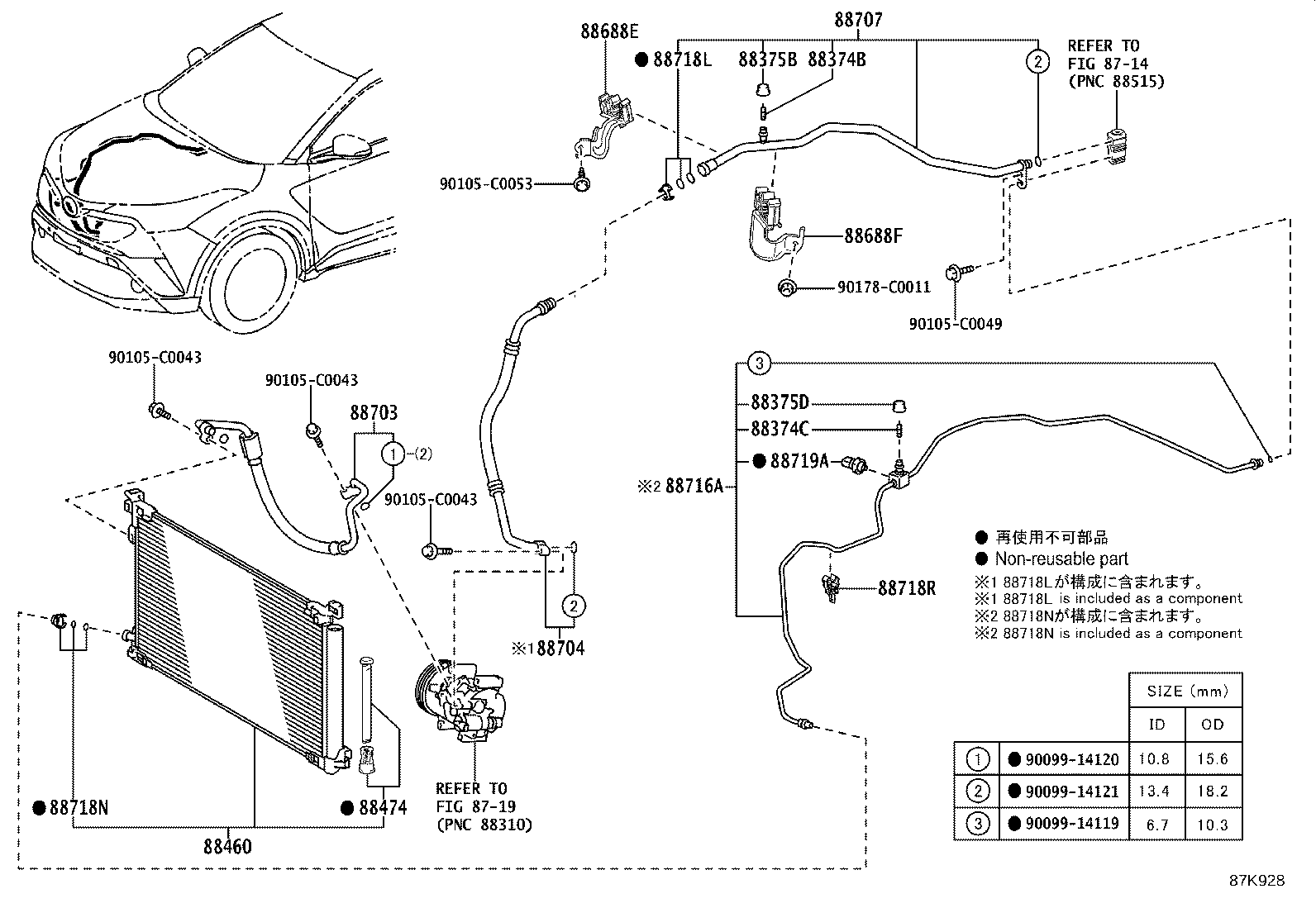

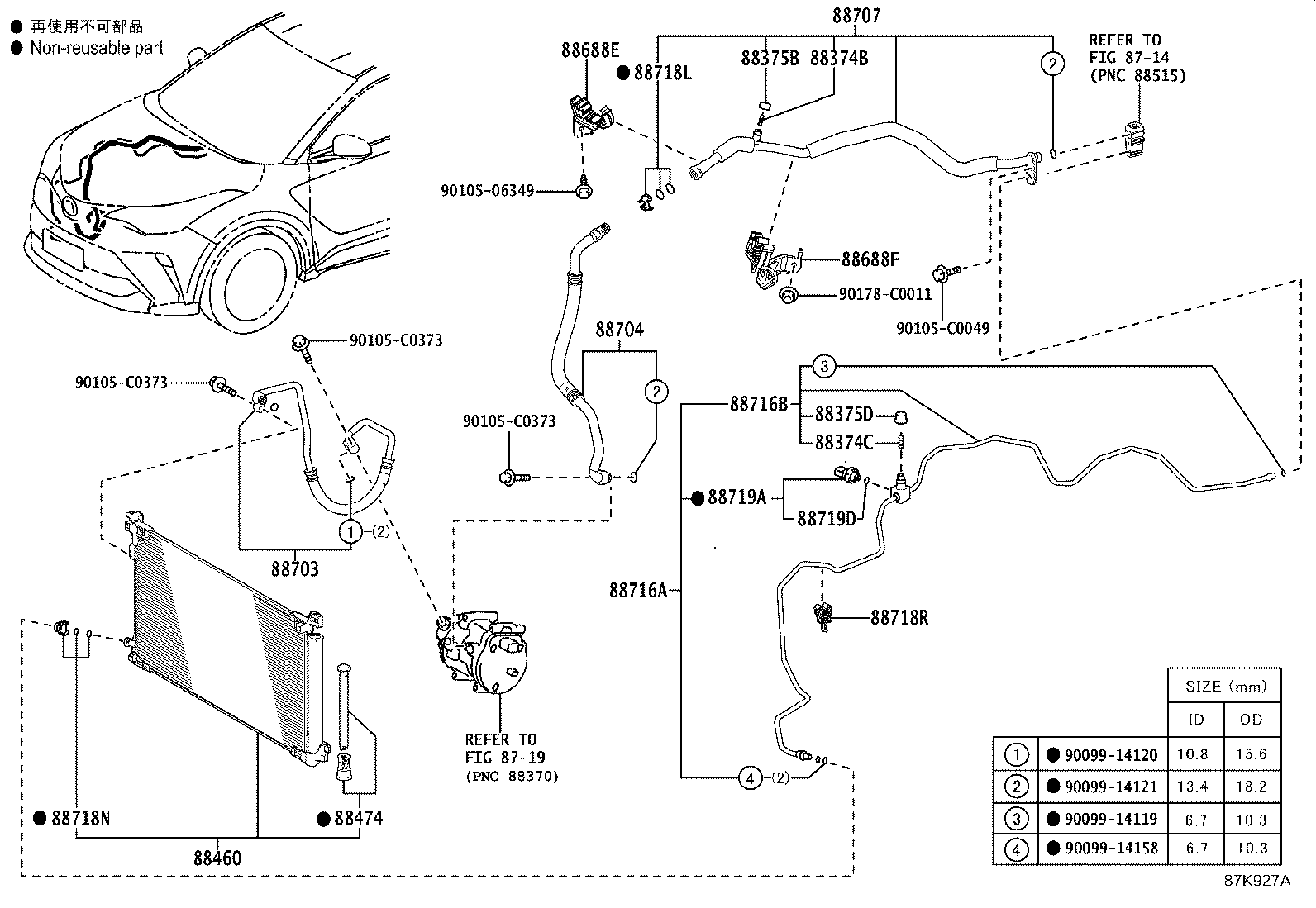

Figure 87H332F 87H332F 2018-08 → 2021-12 Figure 87K928 87K928 2022-01 → — Figure 87K926A 87K926A 2022-01 → — Figure 87J869A 87J869A 2021-06 → 2021-12 Figure 87K927A 87K927A 2022-01 → —

Part groups

PNCDescription
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88375B Cap, Service Valve, NO.1
88375D Cap, Service Valve, NO.2
88460 Condenser Assy, Cooler
88474 Dryer, Cooler
88688E Bracket, Cooler Refrigerant Hose, NO.1
88688F Bracket, Cooler Refrigerant Hose, NO.2
88703 Hose Sub-assy, Discharge
88704 Hose Sub-assy, Suction
88707 Pipe Sub-assy, Suction
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88718L Clamp, Piping
88718N Clamp, Piping
88718R Clamp, Piping
88719A Sensor, Air Conditioner Pressure
88719D Ring, O(FOR AIR CONDITIONER PRESSURE SENSOR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
