Toyota Lexus UX200/2##H
2018-10 → 2022-07 · chassis MZAA10,MZAH1# · catalogue 537210 · General
Supported model
Data version 2023-09

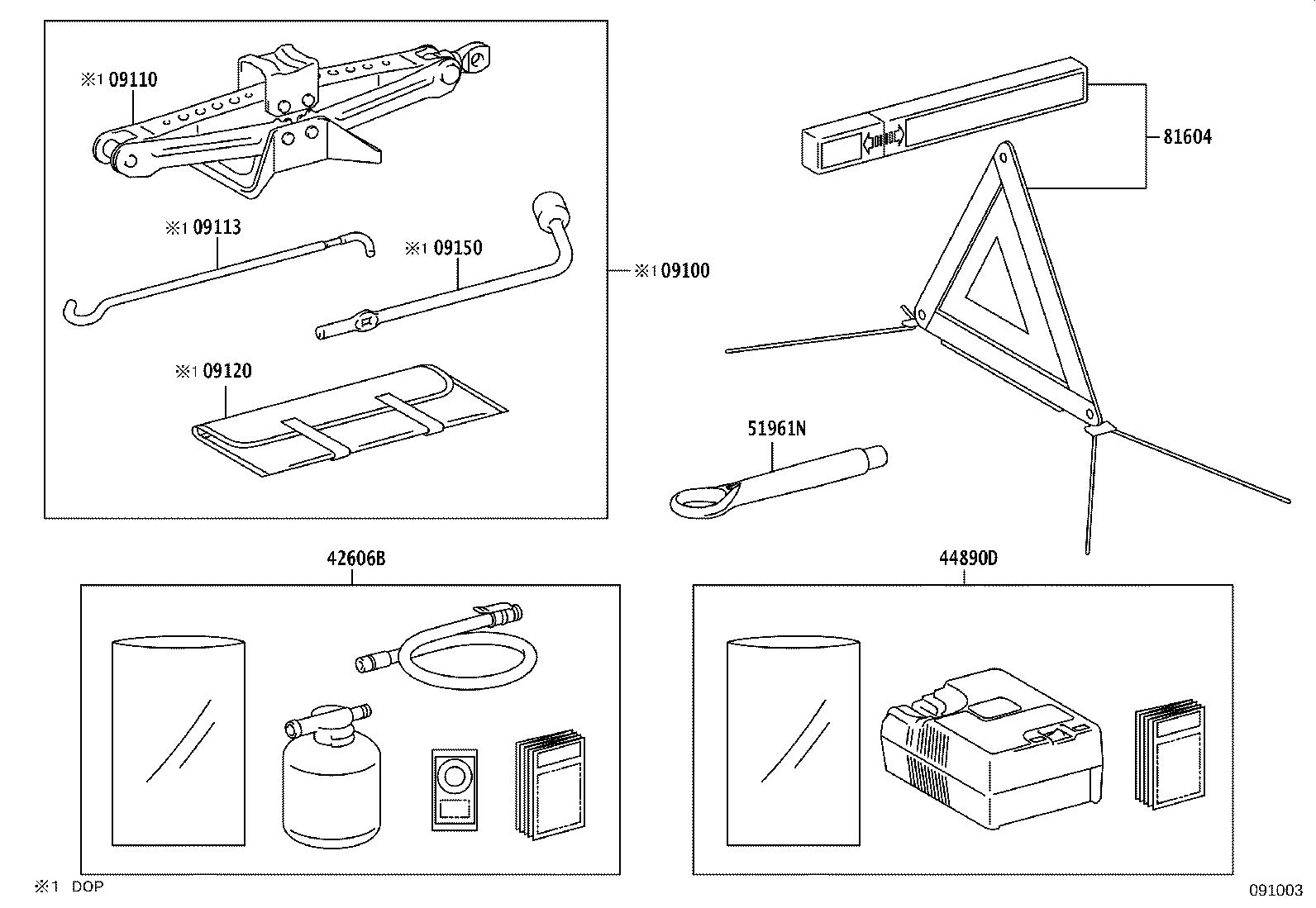

Standard Tool
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 09100 | Tool Set, Standard |
| 09110 | Jack Assy |
| 09113 | Handle, Jack |
| 09119 | Label, Jack Caution |
| 09120 | Bag, Tool |
| 09150 | Wrench, Hub Nut Box |
| 42606B | Repair Kit, Tubeless Tire |
| 44890D | Compressor Assy, Air |
| 51961N | Hook, Transport |
| 81604 | Reflector Set, Triangle |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
