Toyota Lexus UX200/2##H

2018-10 → 2022-07 · chassis MZAA10,MZAH1# · catalogue 537210 · General

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

14 part groups · 3 illustrations

Illustrations

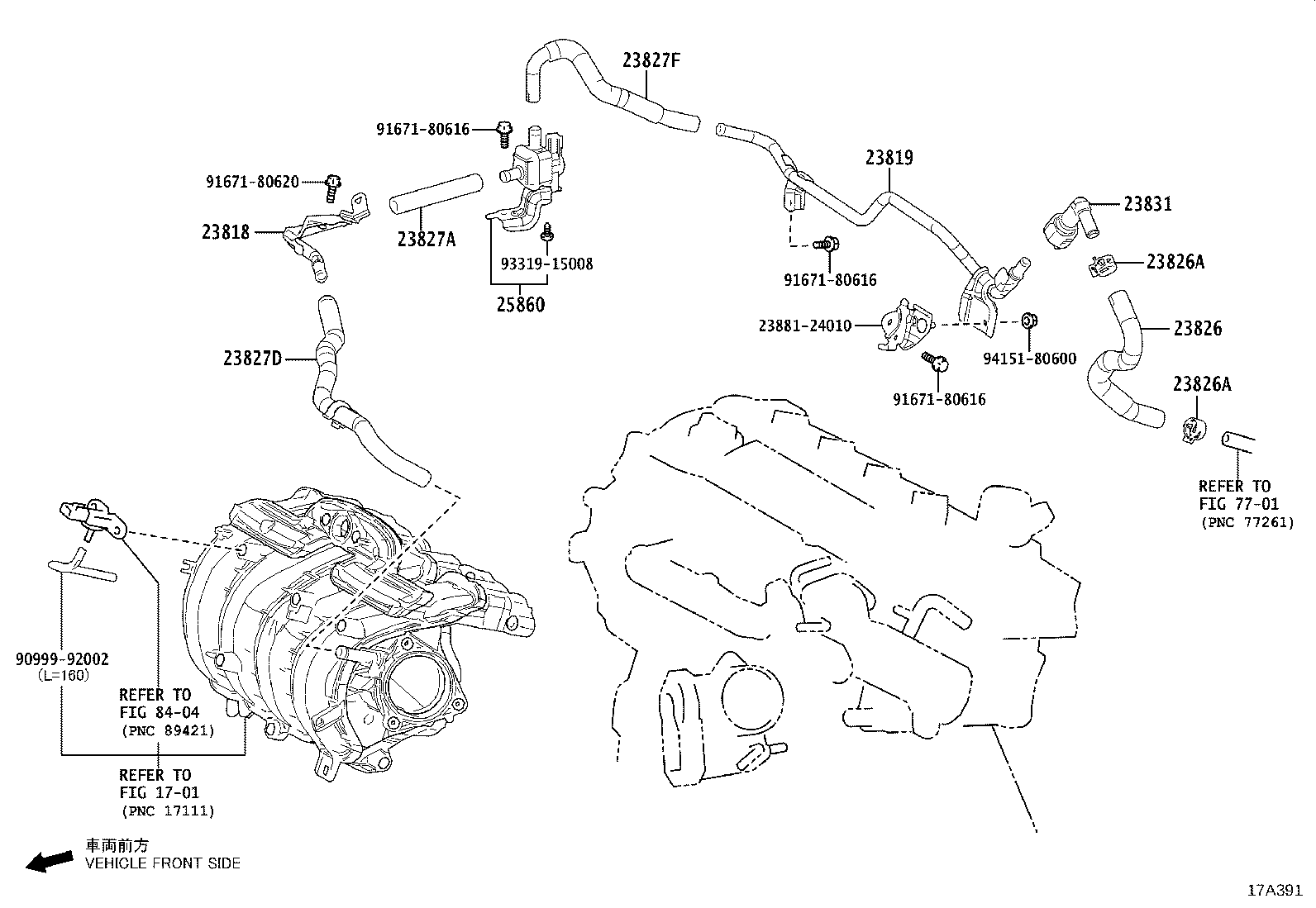

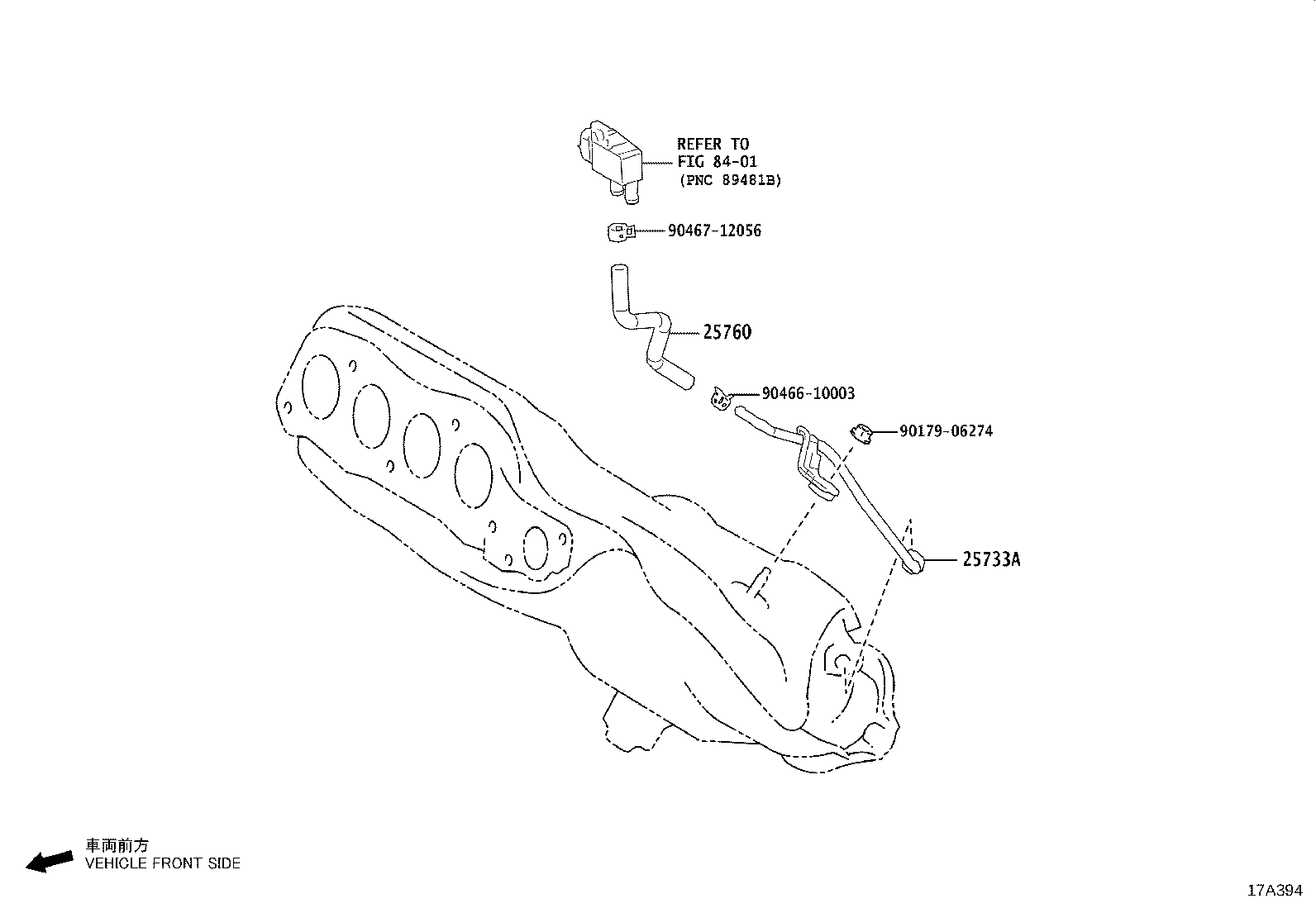

Figure 17A392 17A392 2018-10 → — Figure 17A391 17A391 2018-10 → — Figure 17A394 17A394 2018-10 → —

Part groups

PNCDescription
23818 Pipe, Fuel Vapor Feed
23819 Pipe, Fuel Vapor Feed, NO.2
23826 Hose, Fuel Vapor Feed, NO.1
23826A Clip(FOR FUEL VAPOR FEED HOSE, NO.1)
23827A Hose, Fuel Vapor Feed, NO.2
23827B Clip(FOR FUEL VAPOR FEED HOSE, NO.2)
23827D Hose, Fuel Vapor Feed, NO.2
23827F Hose, Fuel Vapor Feed, NO.3
23827G Clip(FOR FUEL VAPOR FEED HOSE, NO.3)
23831 Connector, Fuel Vapor Feed, NO.1
25719 Tank, Vacuum Surge
25733A Pipe, Vacuum, NO.1
25760 Hose Assy, Vacuum Transmitting
25860 Valve Assy, Vacuum Switching, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
