Toyota Lexus UX200/2##H

2018-10 → 2022-07 · chassis MZAA10,MZAH1# · catalogue 537210 · General

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Shift Lever & Retainer

9 part groups · 4 illustrations

Illustrations

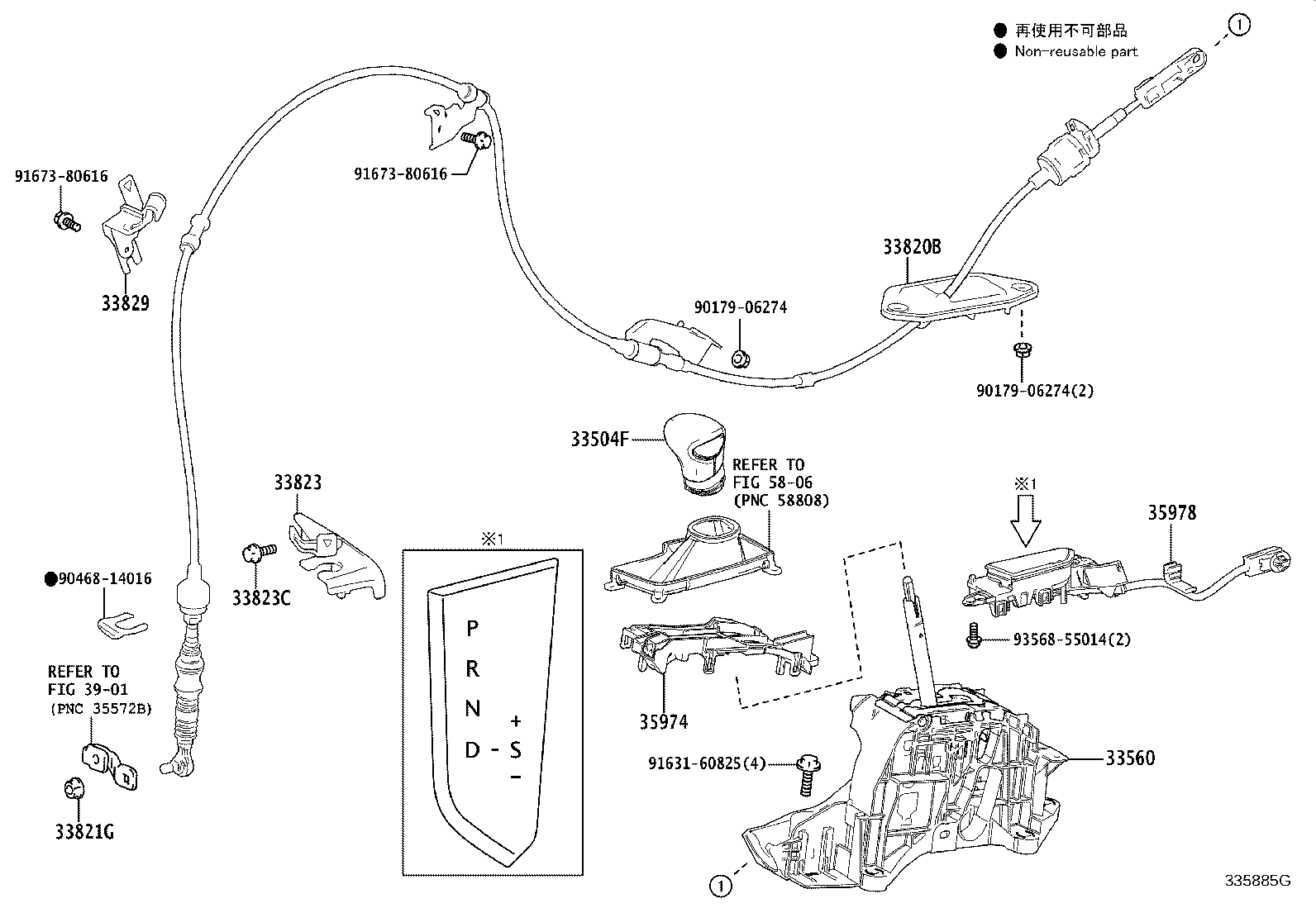

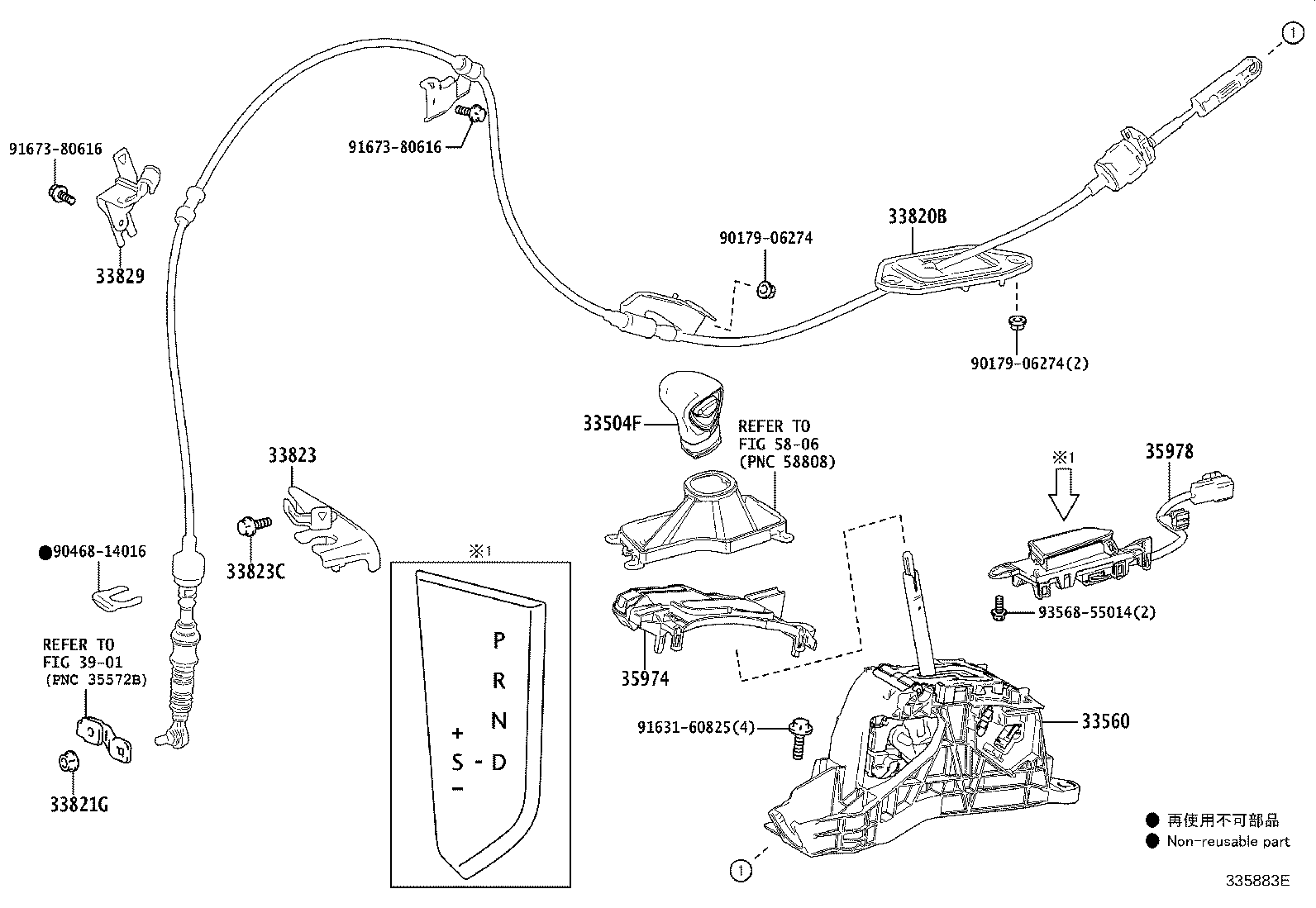

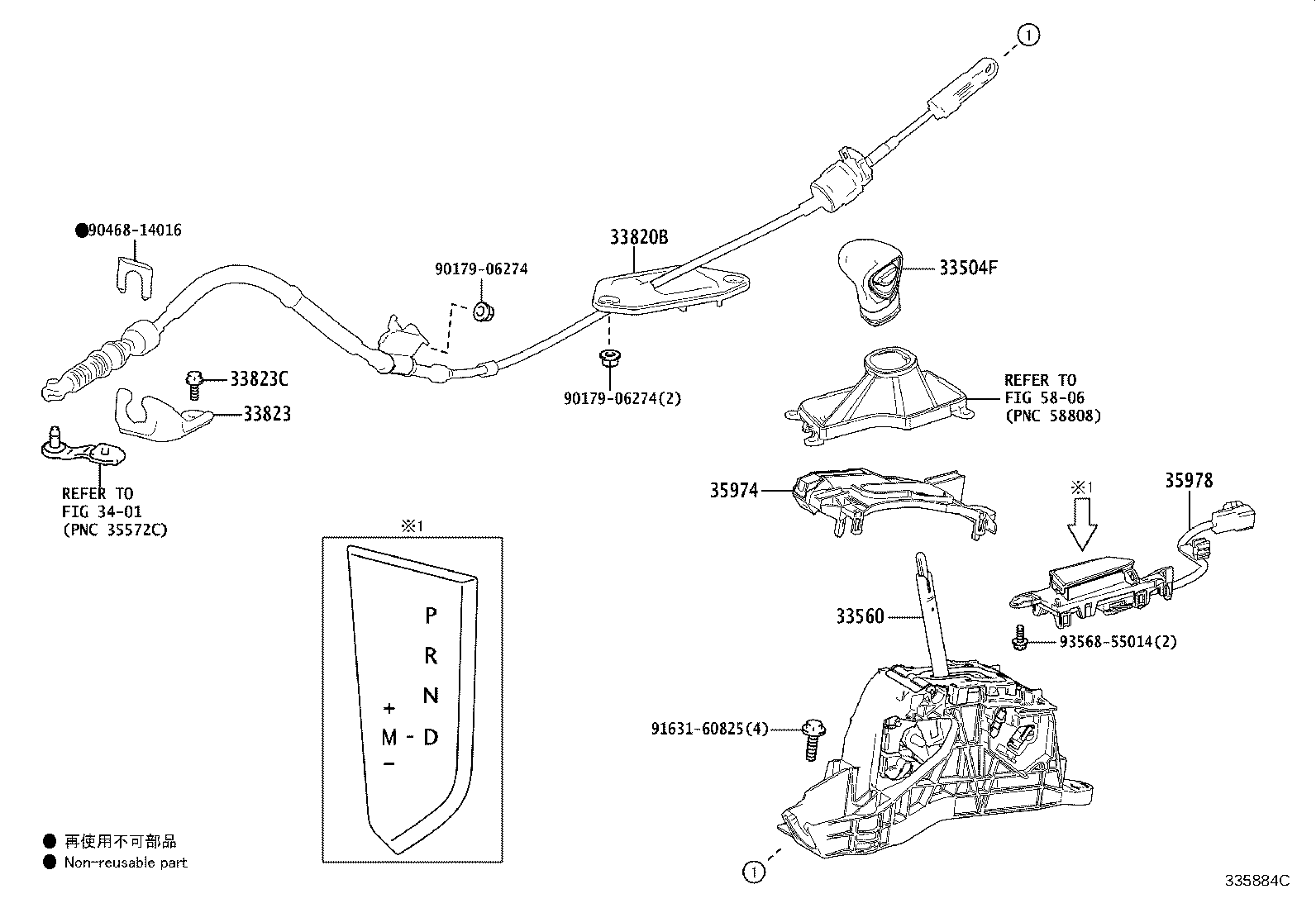

Figure 335886E 335886E 2018-10 → — Figure 335885G 335885G 2018-11 → — Figure 335884C 335884C 2018-10 → — Figure 335883E 335883E 2018-11 → —

Part groups

PNCDescription
33504F Knob Sub-assy, Shift Lever
33560 Unit Assy, Shift Lock Control
33820B Cable Assy, Transmission Control
33821G Nut (FOR TRANSMISSION CONTROL CABLE)
33823 Bracket, Transmission Control Cable, NO.1
33823C Bolt (FOR TRANSMISSION CONTROL CABLE BRACKET)
33829 Support, Transmission Control Cable
35974 Housing, Position Indicator, Lower
35978 Indicator, Shift Position
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
