Brake Pedal & Bracket

5 part groups · 4 illustrations

Illustrations

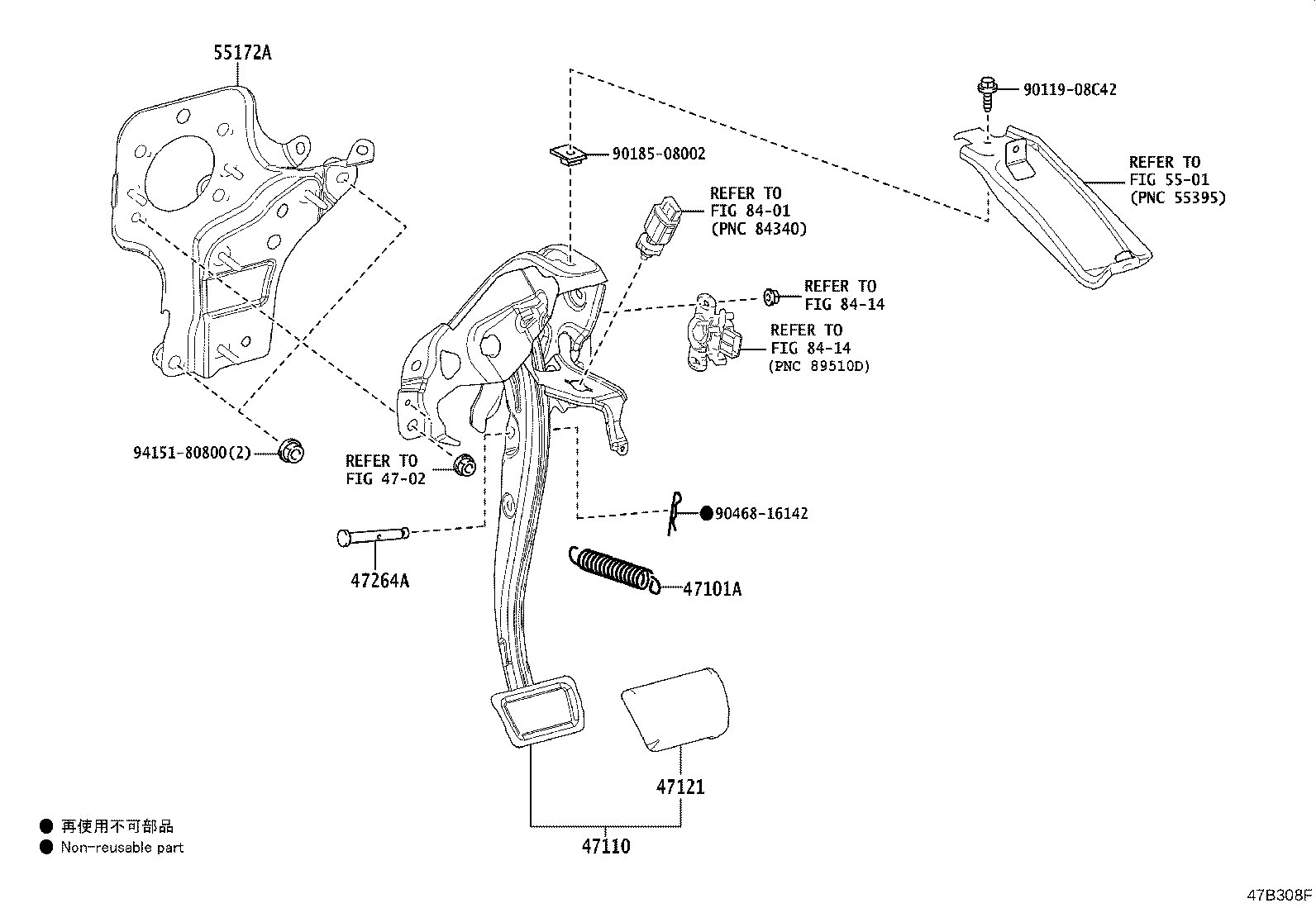

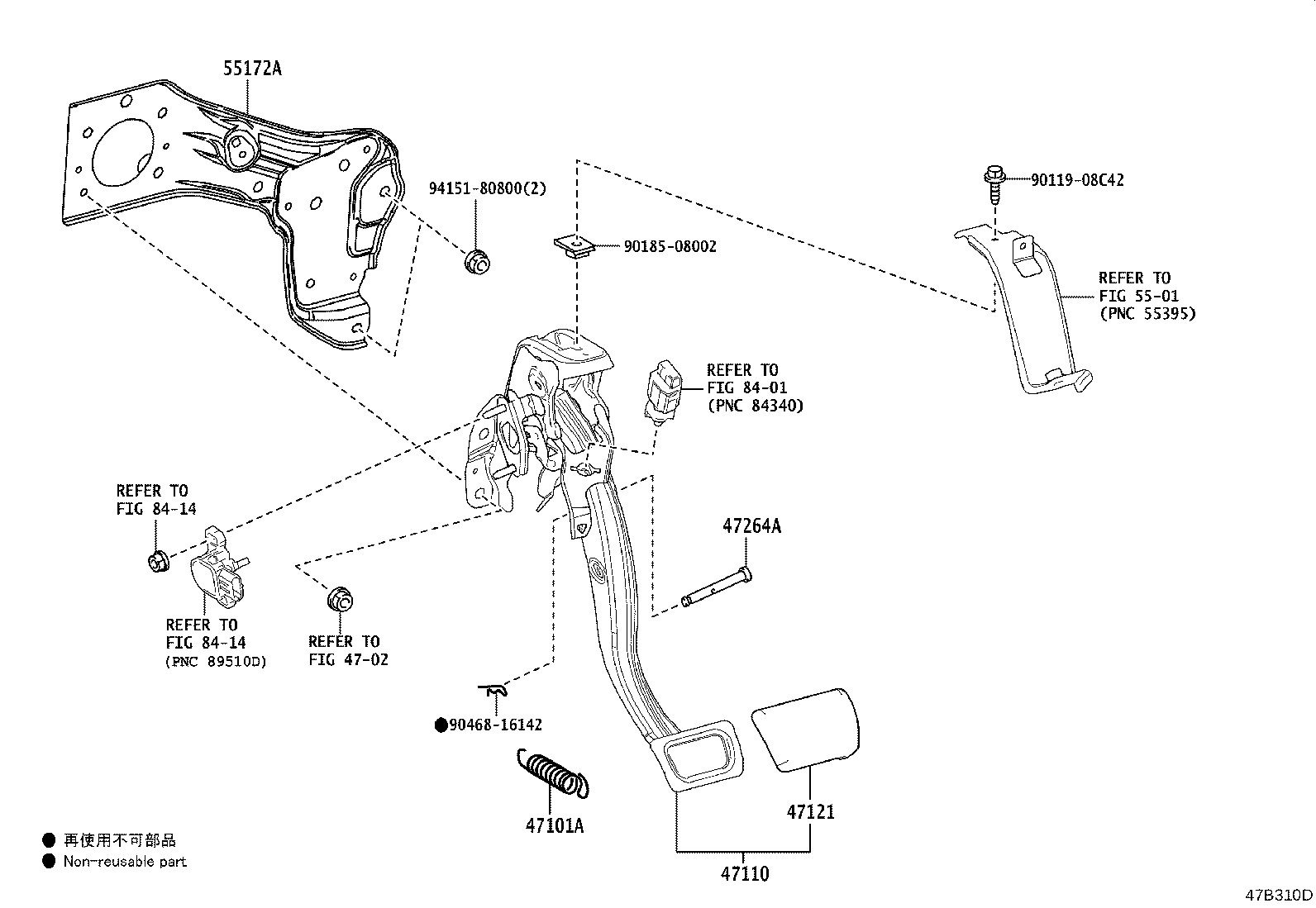

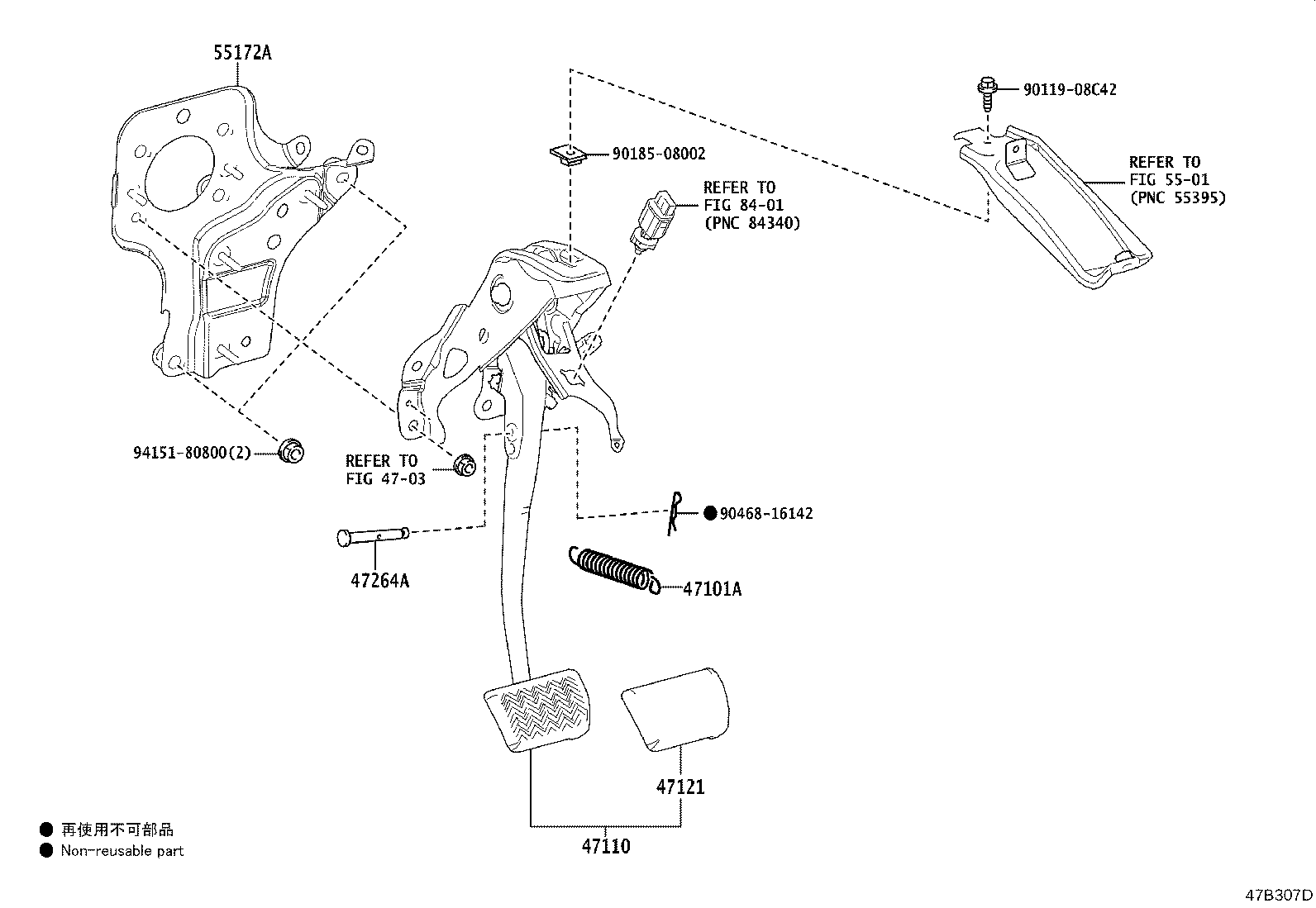

Figure 47B309C 47B309C 2018-10 → — Figure 47B307D 47B307D 2018-10 → — Figure 47B310D 47B310D 2018-11 → — Figure 47B308F 47B308F 2018-11 → —

Part groups

PNCDescription
47101A Spring(FOR BRAKE PEDAL RETURN)
47110 Support Assy, Brake Pedal
47121 Pad, Brake Pedal
47264A Pin(FOR PUSH ROD)
55172A Base, Brake Pedal Support
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
