Toyota Lexus UX200/2##H

2018-10 → 2022-07 · chassis MZAA10,MZAH1# · catalogue 537210 · General

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

8 part groups · 2 illustrations

Illustrations

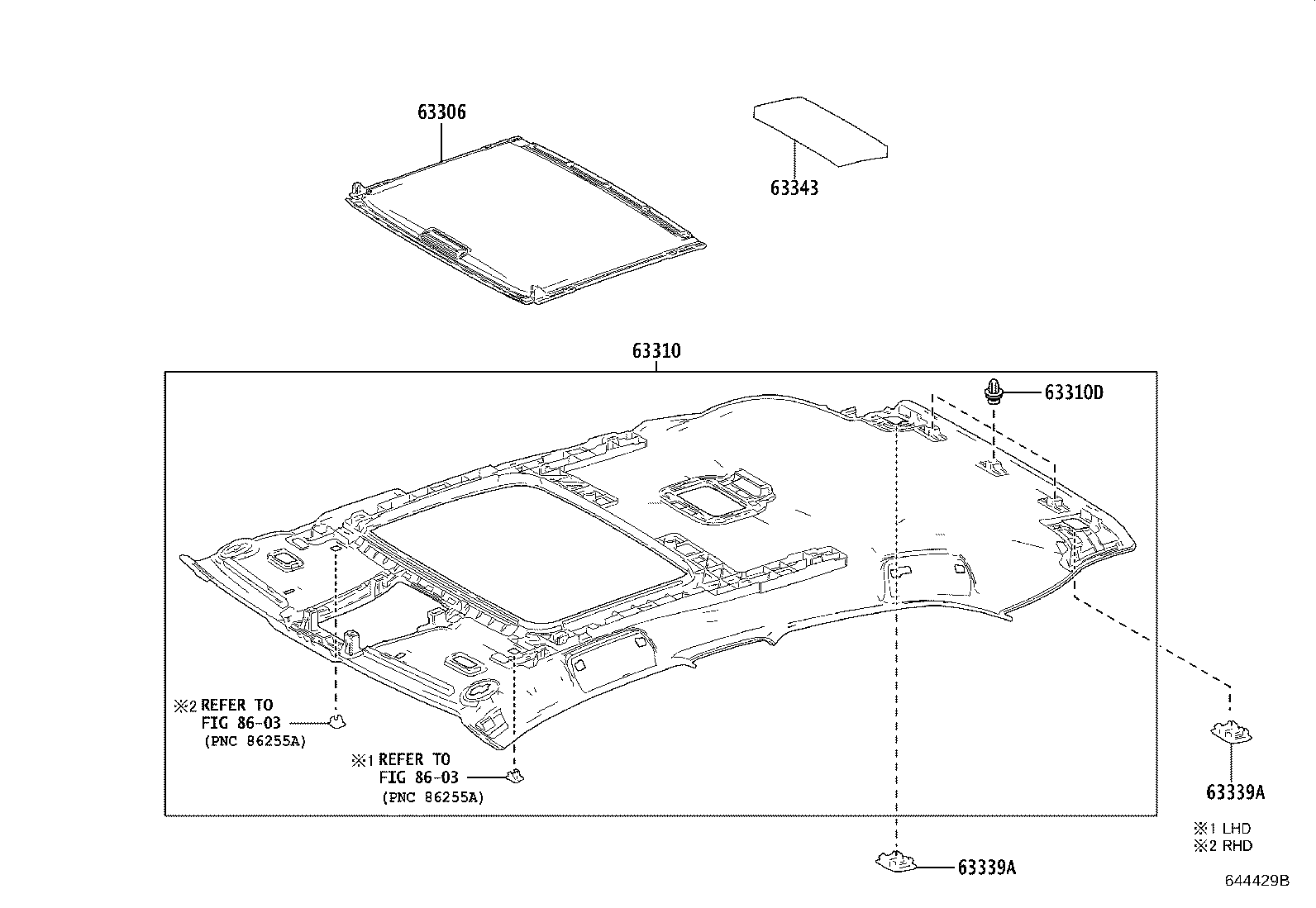

Figure 644428B 644428B 2018-10 → — Figure 644429B 644429B 2018-10 → —

Part groups

PNCDescription
63306 Trim Sub-assy, Sunshade
63310 Headlining Assy, Roof
63310D Clip, Roof Headlining
63339A Cover, Roof Headlining Service Hole
63341 Pad, Roof Silencer, NO.1
63342 Pad, Roof Silencer, NO.2
63343 Pad, Roof Silencer, NO.3
63357B Silencer, Roof
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
