Toyota Lexus UX200/2##H
2018-10 → 2022-07 · chassis MZAA10,MZAH1# · catalogue 537210 · General
Supported model
Data version 2023-09

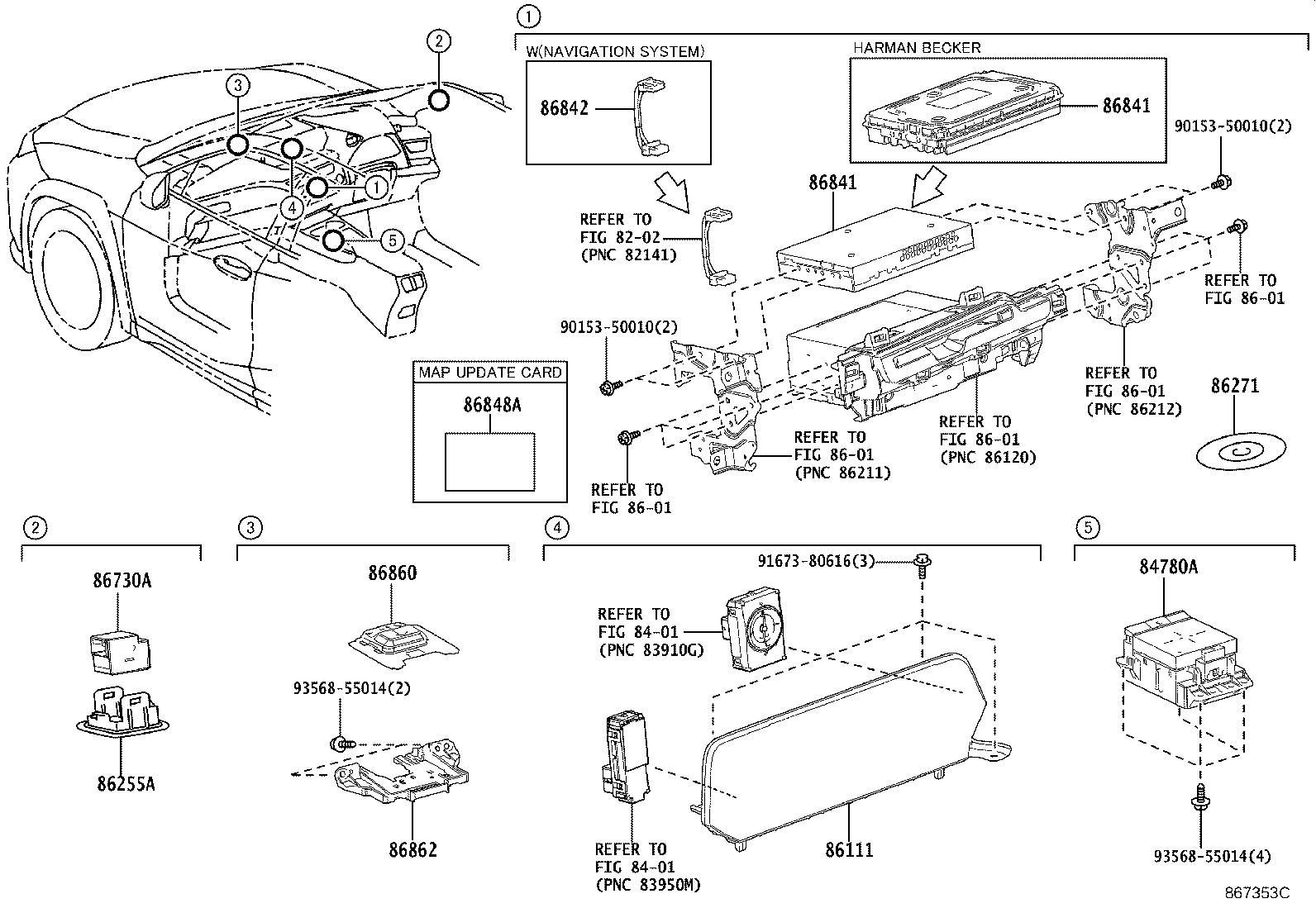

Navigation & Front Monitor Display
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 84780A | Controller Assy, Remote Operation |
| 86111 | Multi-display |
| 86255A | Case, Microphone, NO.1 |
| 86271 | Disc, Disc Player |
| 86730A | Microphone Assy, Telephone |
| 86841 | Computer, Navigation |
| 86842 | Wire, Navigation, NO.1 |
| 86848A | Card, Serial Number Map Update |
| 86860 | Antenna Assy, Navigation |
| 86862 | Bracket, Navigation Antenna |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
