Toyota Lexus UX200/2##H
2018-10 → 2022-07 · chassis MZAA10,MZAH1# · catalogue 537210 · General
Supported model
Data version 2023-09
Telephone & Mayday
12 part groups · 4 illustrations

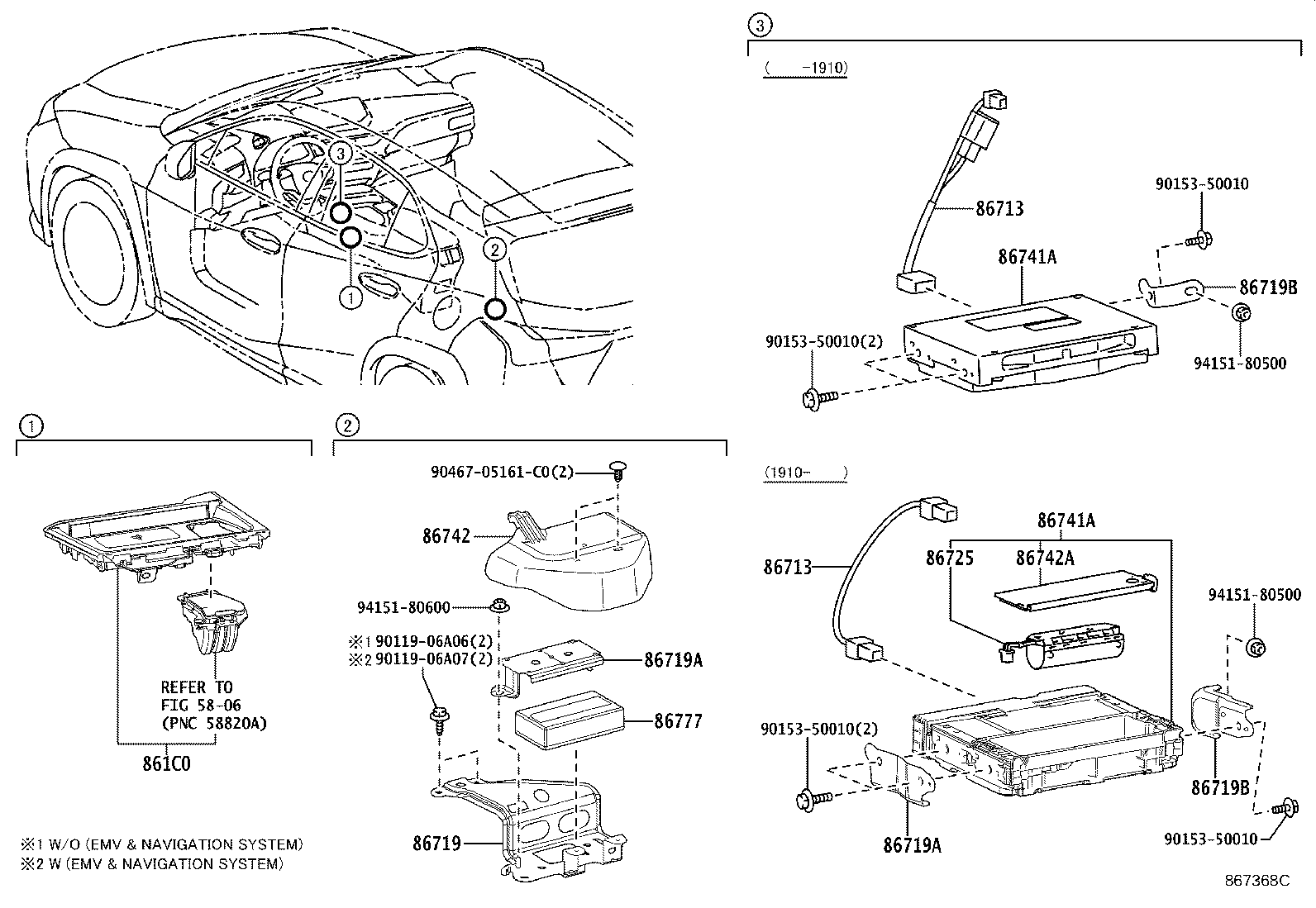

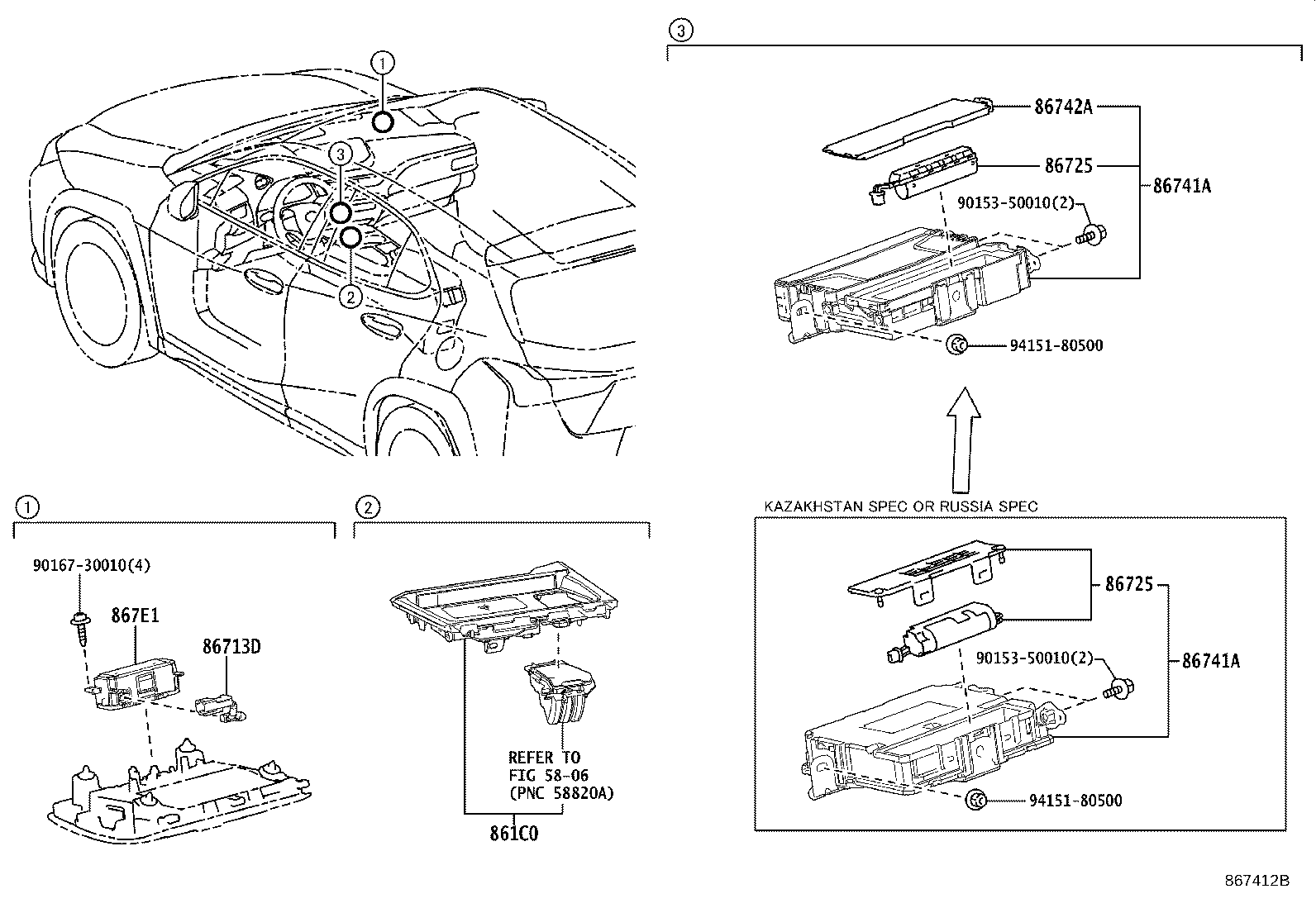

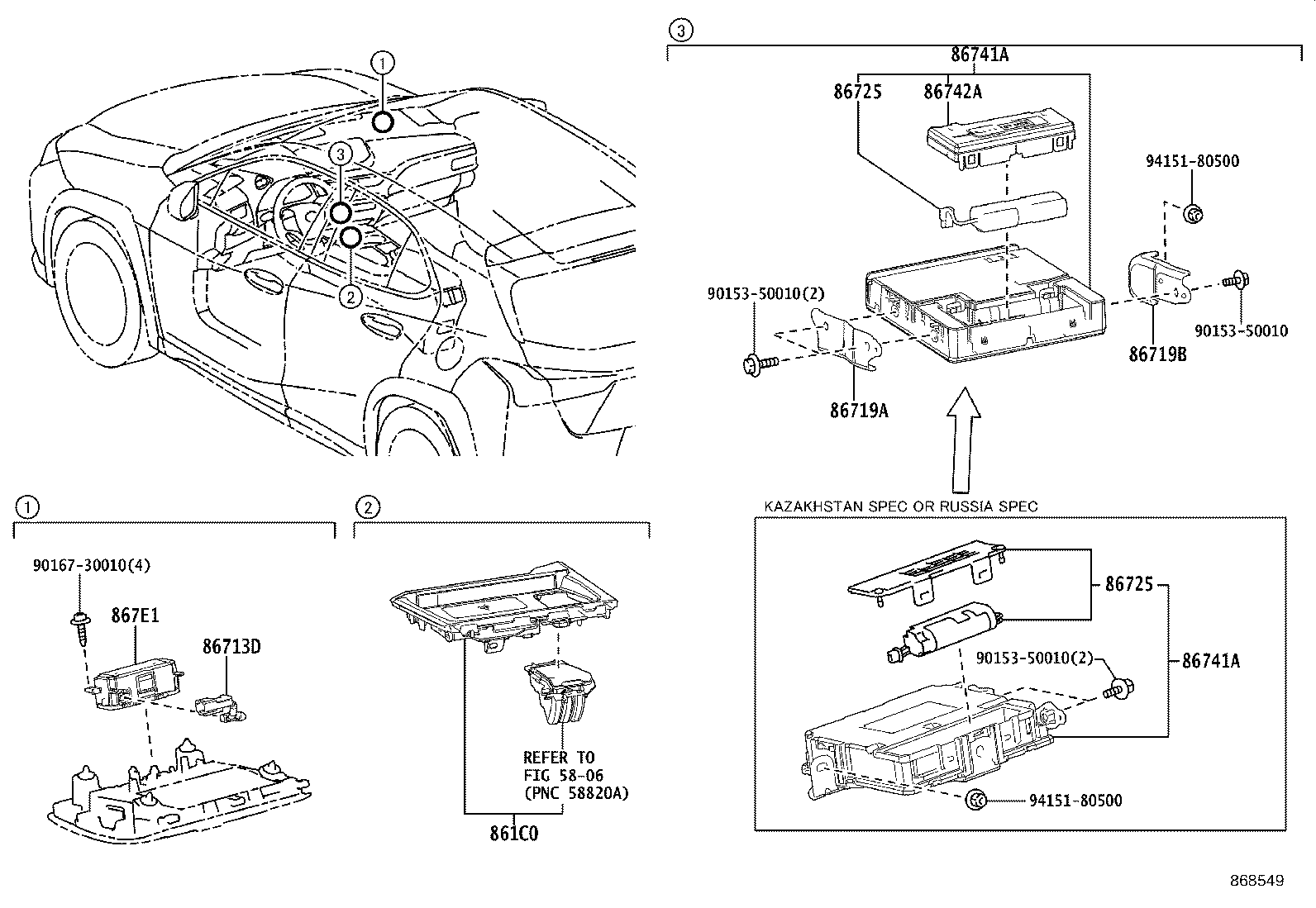

Part groups
| PNC | Description |
|---|---|
| 861C0 | Cradle Assy, Mobile Wireless Charger |
| 86713 | Wire, Telephone Computer |
| 86713D | Wire, Mayday |
| 86719 | Bracket, Telephone |
| 86719A | Bracket, Telephone NO.1 |
| 86719B | Bracket, Telephone NO.2 |
| 86725 | Battery, Mobilephone |
| 86741A | Transceiver, Telematics |
| 86742 | Cover, Transceiver |
| 86742A | Cover, Transceiver |
| 86777 | Battery, Mayday |
| 867E1 | Box, Communication Telematics |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
