Heating & Air Conditioning - Water Piping

10 part groups · 3 illustrations

Illustrations

Figure 87H405A

87H405A 2018-10 → —

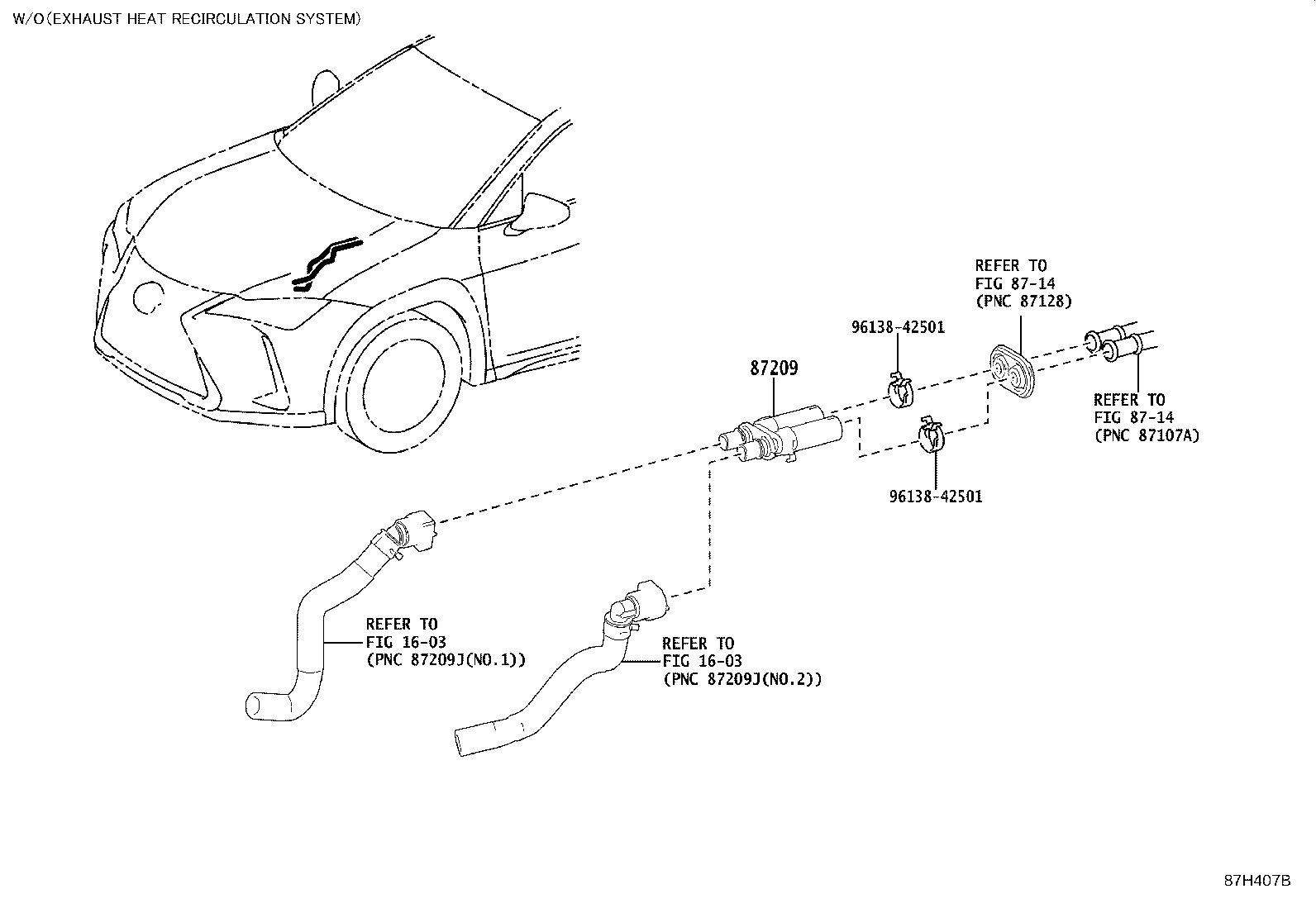

Figure 87H407B

87H407B 2018-11 → —

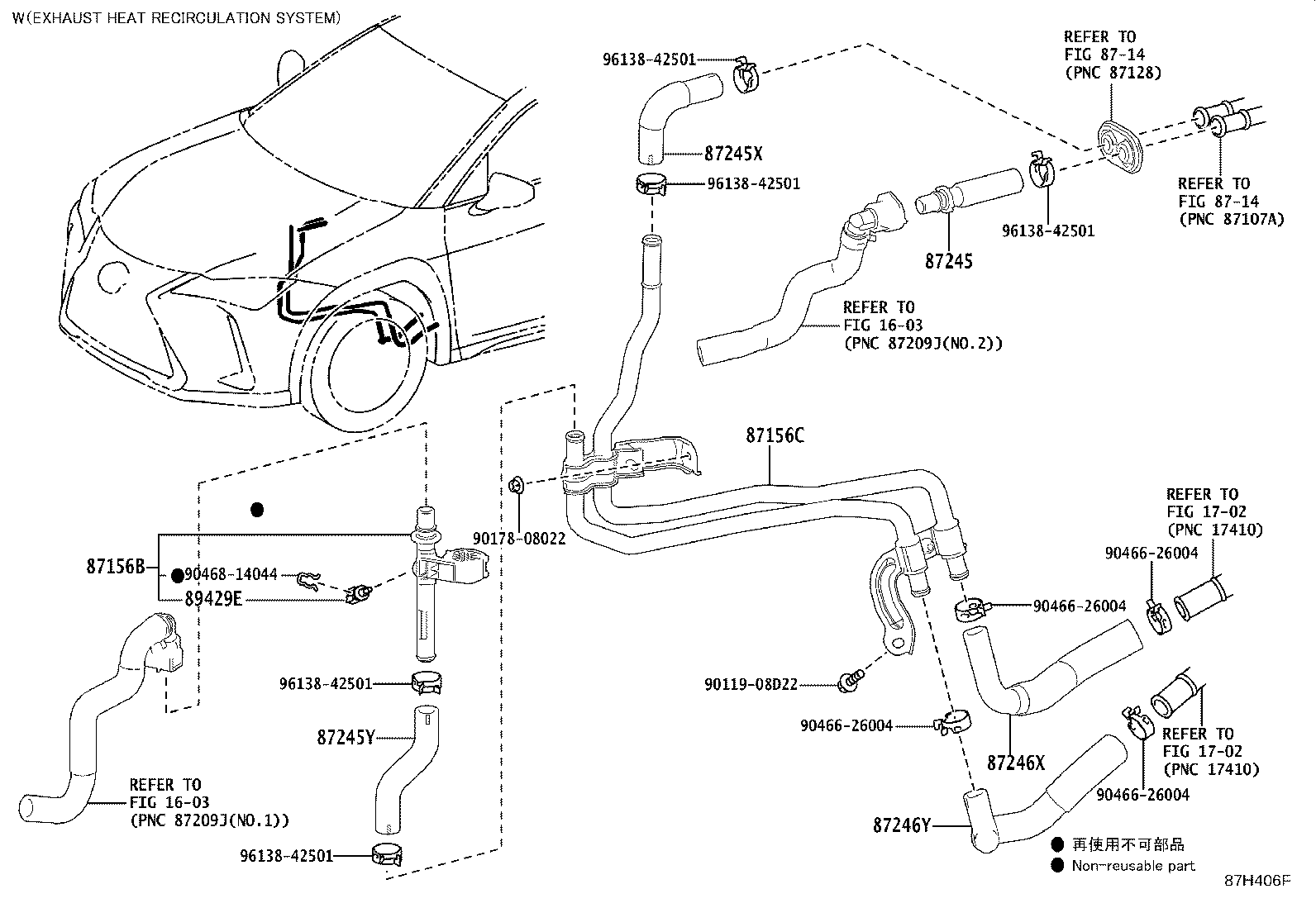

Figure 87H406F

87H406F 2018-11 → —

Part groups

PNC	Description
87156B	Pipe, Heater Water, NO.2
87156C	Pipe, Heater Water, NO.1
87209	Hose Sub-assy, Water
87245	Hose, Heater Water, Inlet
87245X	Hose, Heater Water
87245Y	Hose, Heater Water
87246	Hose, Heater Water, Outlet
87246X	Hose, Heater Water
87246Y	Hose, Heater Water
89429E	Sensor, Water Temperature
