Toyota Izoa
2020-05 → 2022-07 · chassis KPX10 · catalogue 539310 · General
Supported model
Data version 2023-05

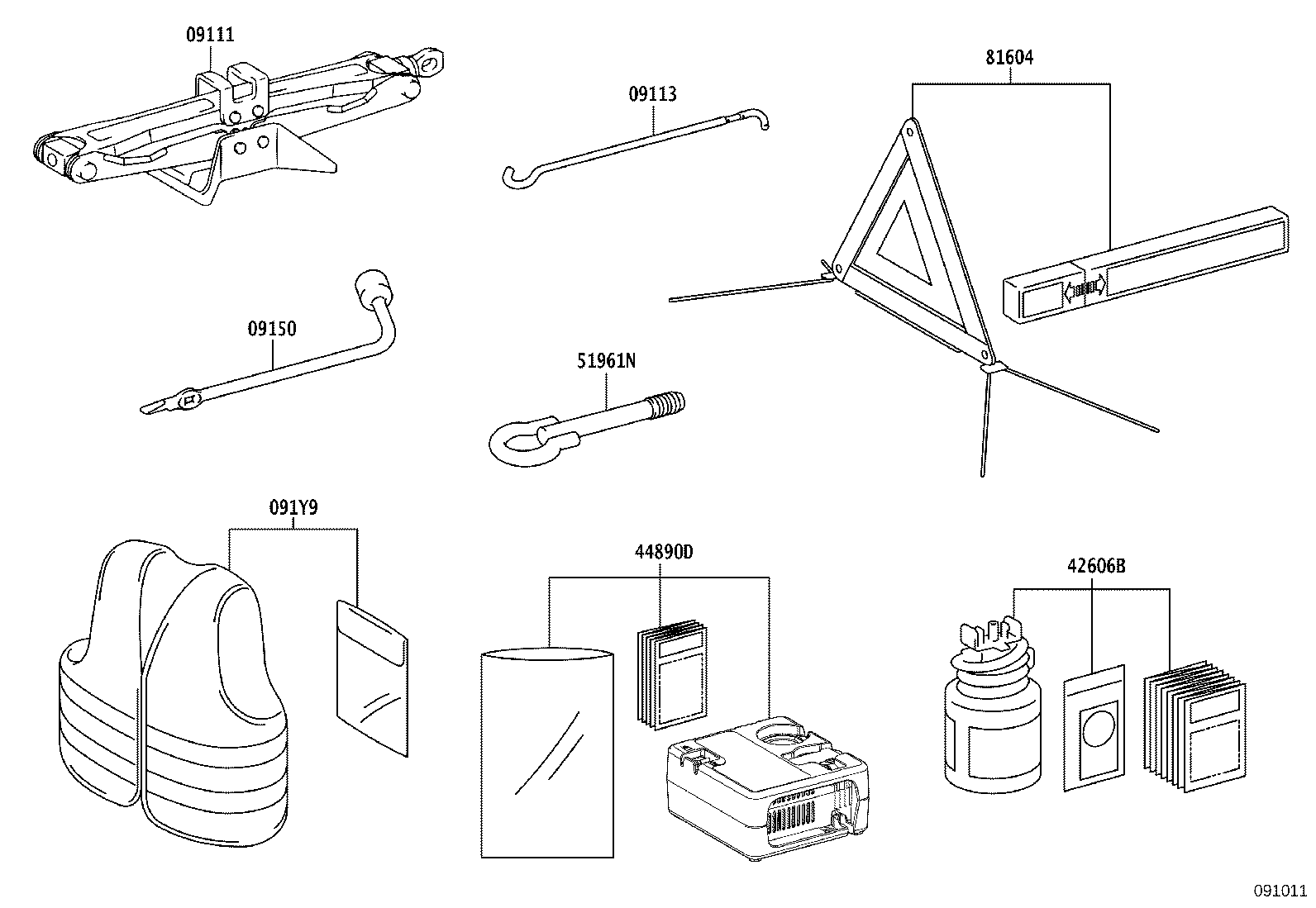

| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 09111 — Jack Sub-assy | ||||
| 09111-F4031 |
Jack Sub-assy
2020-05 → —
|
KPX10 | — | |
| 09113 — Handle, Jack | ||||
| 09113-0R030 |
Handle, Jack
2020-05 → —
|
KPX10 | — | |
| 09150 — Wrench, Hub Nut Box | ||||
| 09150-0R020 |
Wrench, Hub Nut Box
2020-05 → —
|
KPX10 | — | |
| 091Y9 — Jacket, W/Reflector | ||||
| 091Y9-02020 |
Jacket, W/Reflector
2020-05 → —
|
KPX10 | — | |
| 42606B — Repair Kit, Tubeless Tire | ||||
| 42606-F4060 note |
Repair Kit, Tubeless Tire
2020-05 → 2022-08
ended
|
KPX10 | — | |
| 42606-F4060 |
Repair Kit, Tubeless Tire
2020-05 → —
|
KPX10 | — | |
| 44890D — Compressor Assy, Air | ||||
| 44890-F4020 |
Compressor Assy, Air
2020-05 → —
|
KPX10 | — | |
| 51961N — Hook, Transport | ||||
| 51960-F4020 |
Hook, Transport
2020-05 → —
|
KPX10 | — | |
| 81604 — Reflector Set, Triangle | ||||
| 81604-02030 |
Reflector Set, Triangle
2020-05 → —
|
KPX10 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
