Toyota Izoa
2020-05 → 2022-07 · chassis KPX10 · catalogue 539310 · General
Supported model
Data version 2023-05

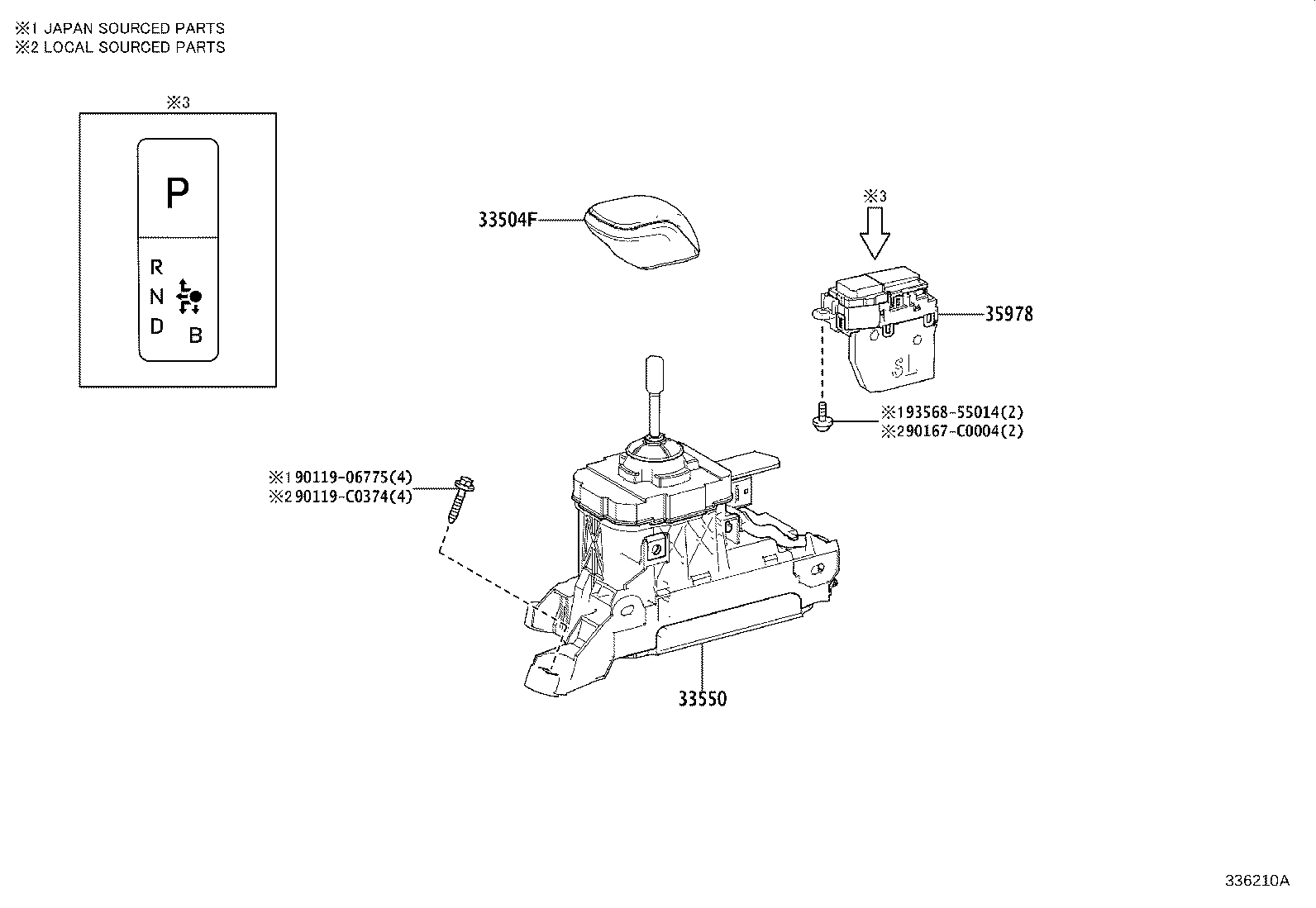

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 33504F — Knob Sub-assy, Shift Lever | ||||
| 33504-F4050-C0 note |
Knob Sub-assy, Shift Lever
2020-05 → —
|
KPX10 E | — | |
| 33504-F4050-C0 note |
Knob Sub-assy, Shift Lever
2020-05 → —
|
KPX10 D,N | — | |
| 33550 — Floor Shift Assy, Transmission | ||||
| 33550-F4140 |
Floor Shift Assy, Transmission
2020-05 → —
|
KPX10 | — | |
| 35978 — Indicator, Shift Position | ||||
| 35978-F4100 |
Indicator, Shift Position
2020-05 → —
|
KPX10 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
