Toyota Izoa

2020-05 → 2022-07 · chassis KPX10 · catalogue 539310 · General

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

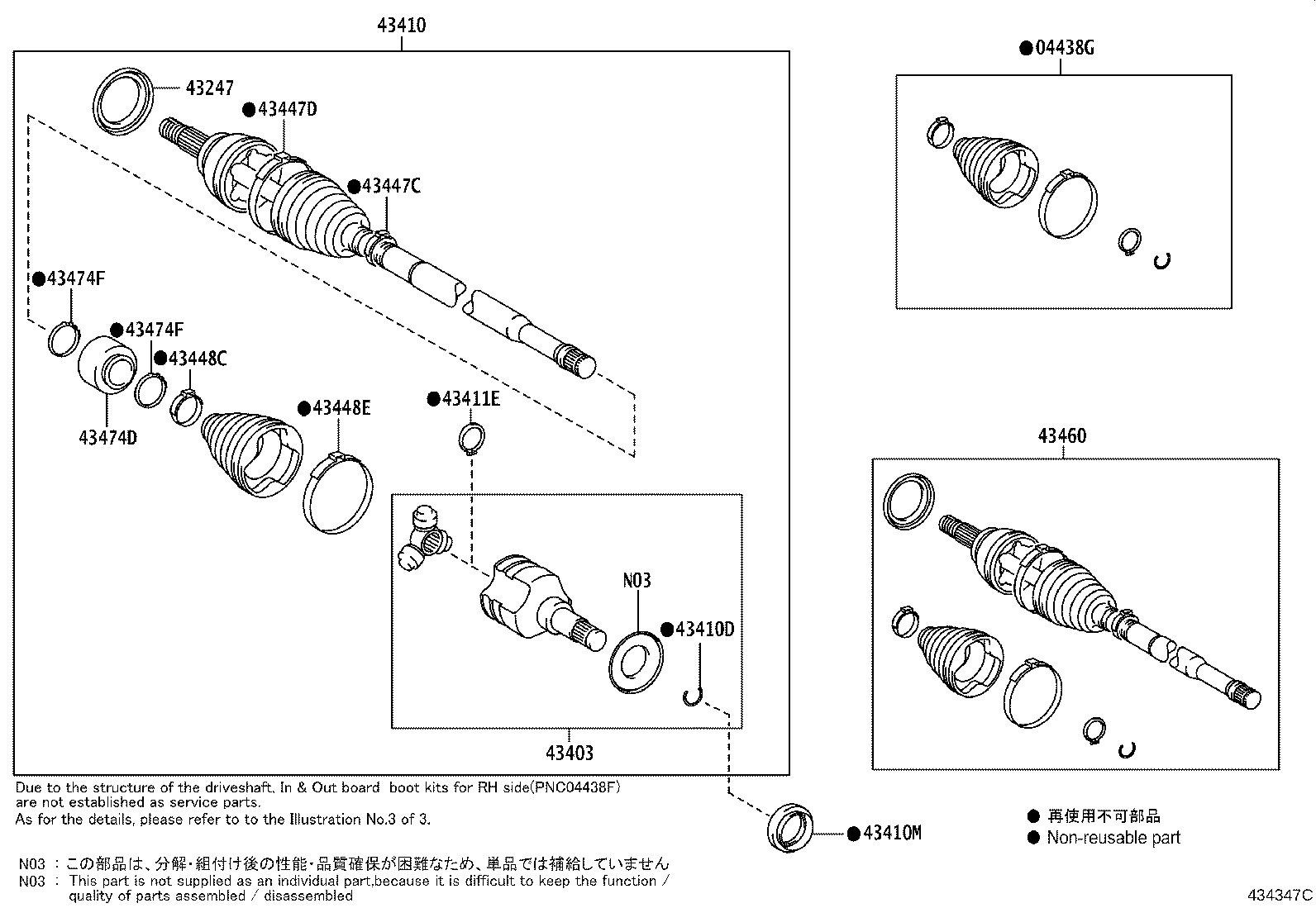

Exploded illustration 434347C 43247 — DEFLECTOR, FRONT WHEEL BEARING DUST, NO.2 (1 parts) 43474D — DAMPER, FRONT DRIVE SHAFT, RH (1 parts) 43474F — CLAMP (FOR FRONT DRIVE SHAFT DAMPER RH) (1 parts) 43448E — CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH) (1 parts) 43448C — CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH) (1 parts) 43474F — CLAMP (FOR FRONT DRIVE SHAFT DAMPER RH) (1 parts) 43411E — RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH) (1 parts) 43410D — RING, SHAFT SNAP (FOR FRONT DRIVE SHAFT) (1 parts) 43410 — SHAFT ASSY, FRONT DRIVE, RH (1 parts) 04438G — BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH (1 parts) 43460 — SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH (1 parts) 43403 — JOINT SET, FRONT AXLE INBOARD, RH (1 parts) 43410M — OIL SEAL, FRONT DRIVE SHAFT, RH (1 parts) 43447D — CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) (1 parts) 43447C — CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) (1 parts)
434347C · 15 callouts Full size ↗
14 parts on this figure
Part number Description Fitment Price
04438G — Boot Kit, Front Drive Shaft Inboard Joint, RH
04437-02870 Boot Kit, Front Drive Shaft Inboard Joint, RH
2020-05 → —
KPX10 —
43247 — Deflector, Front Wheel Bearing Dust, NO.2
43247-F4030 Deflector, Front Wheel Bearing Dust, NO.2
2020-05 → —
KPX10 —
43403 — Joint Set, Front Axle Inboard, RH
43403-F4020 Joint Set, Front Axle Inboard, RH
2020-05 → —
KPX10 —
43410 — Shaft Assy, Front Drive, RH
43410-F4131 Shaft Assy, Front Drive, RH
2020-05 → —
KPX10 —
43410D — Ring, Shaft Snap (FOR FRONT DRIVE SHAFT)
43425-F4170 Ring, Shaft Snap (FOR FRONT DRIVE SHAFT)
2020-05 → —
KPX10 —
43410M — Oil Seal, Front Drive Shaft, RH
90311-40049 Oil Seal, Front Drive Shaft, RH
2020-05 → —
KPX10 —
43411E — Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
43425-F4150 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
2020-05 → —
KPX10 —
43447C — Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-F4260 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2020-05 → —
KPX10 —
43447D — Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-F4270 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2020-05 → —
KPX10 —
43448C — Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-F4240 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2020-05 → —
KPX10 —
43448E — Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-F4250 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2020-05 → —
KPX10 —
43460 — Shaft Assy, Front Drive Outboard Joint, RH
43460-F9040 Shaft Assy, Front Drive Outboard Joint, RH
2020-05 → —
KPX10 —
43474D — Damper, Front Drive Shaft, RH
43474-F4140 Damper, Front Drive Shaft, RH
2020-05 → —
KPX10 —
43474F — Clamp (FOR FRONT DRIVE SHAFT DAMPER RH)
42345-F4290 Clamp (FOR FRONT DRIVE SHAFT DAMPER RH)
2020-05 → —
KPX10 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
