Toyota Izoa
2020-05 → 2022-07 · chassis KPX10 · catalogue 539310 · General
Supported model
Data version 2023-05

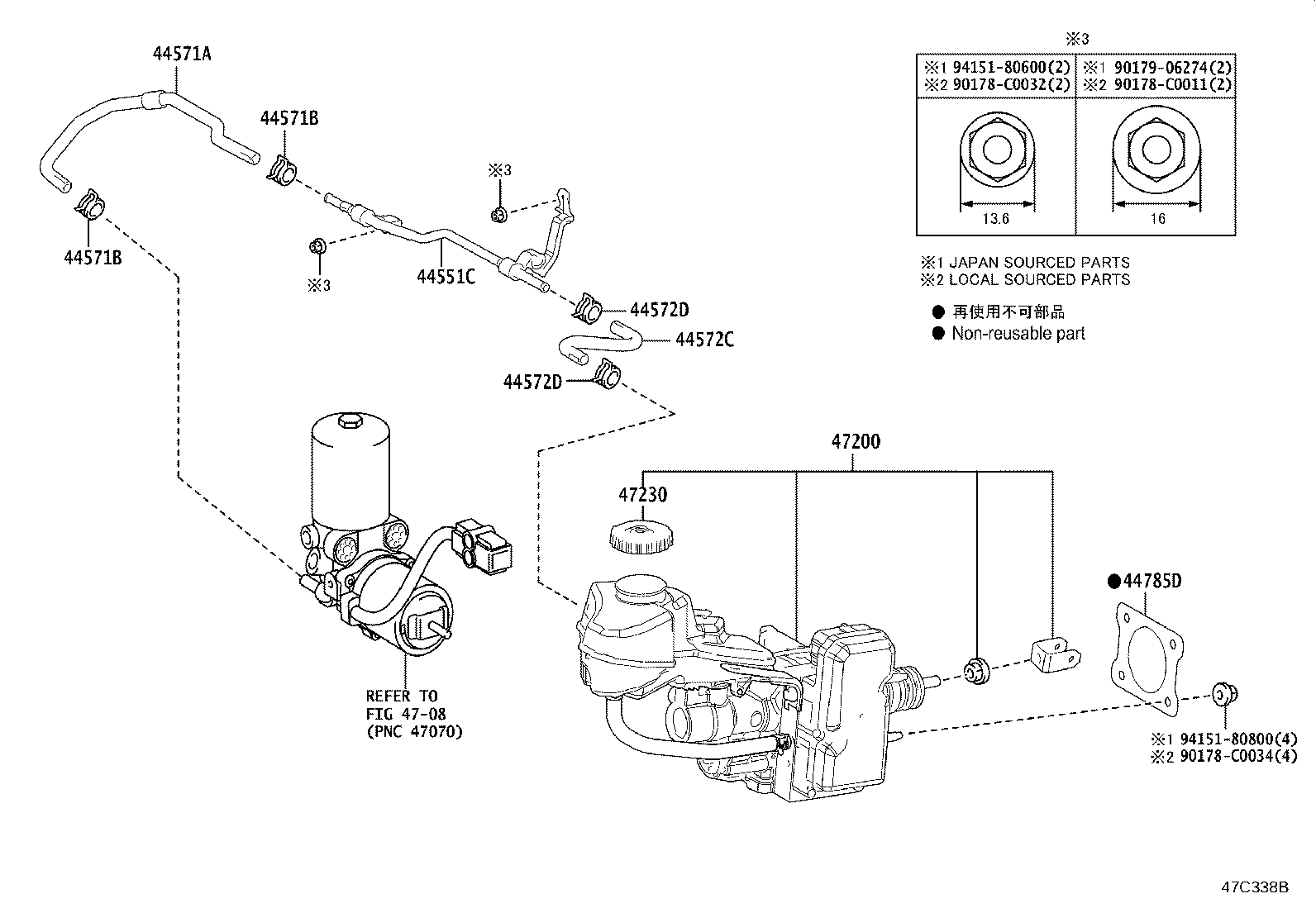

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 44551C — Tube, Brake Actuator, NO.1 | ||||
| 44551-02090 |
Tube, Brake Actuator, NO.1
2020-05 → —
|
KPX10 | — | |
| 44571A — Hose, Brake Actuator, NO.1 | ||||
| 44571-02120 |
Hose, Brake Actuator, NO.1
2020-05 → —
|
KPX10 | — | |
| 44571B — Clip, Hose(FOR BRAKE ACTUATOR HOSE NO.1) | ||||
| 90466-C0026 note |
Clip, Hose(FOR BRAKE ACTUATOR HOSE NO.1)
2020-05 → —
|
KPX10 | — | |
| 96137-41501 note |
Clip, Hose(FOR BRAKE ACTUATOR HOSE NO.1)
2020-05 → —
|
KPX10 | — | |
| 44572C — Hose, Brake Actuator, NO.2 | ||||
| 44572-02090 |
Hose, Brake Actuator, NO.2
2020-05 → —
|
KPX10 | — | |
| 44572D — Clip, Hose(FOR BRAKE ACTUATOR HOSE NO.2) | ||||
| 90466-C0026 note |
Clip, Hose(FOR BRAKE ACTUATOR HOSE NO.2)
2020-05 → —
|
KPX10 | — | |
| 96137-41501 note |
Clip, Hose(FOR BRAKE ACTUATOR HOSE NO.2)
2020-05 → —
|
KPX10 | — | |
| 44785D — Gasket, Brake Master Cylinder | ||||
| 44785-02050 |
Gasket, Brake Master Cylinder
2020-05 → —
|
KPX10 | — | |
| 47200 — Cylinder Assy, Brake Master | ||||
| 47050-F4010 |
Cylinder Assy, Brake Master
2020-05 → —
|
KPX10 | — | |
| 47230 — Cap Assy, Brake Master Cylinder Reservoir Filler | ||||
| 47230-33330 |
Cap Assy, Brake Master Cylinder Reservoir Filler
2020-05 → 2020-06
ended
|
KPX10 | — | |
| 47230-47090 |
Cap Assy, Brake Master Cylinder Reservoir Filler
2020-06 → —
|
KPX10 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
