Toyota Izoa

2020-05 → 2022-07 · chassis KPX10 · catalogue 539310 · General

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

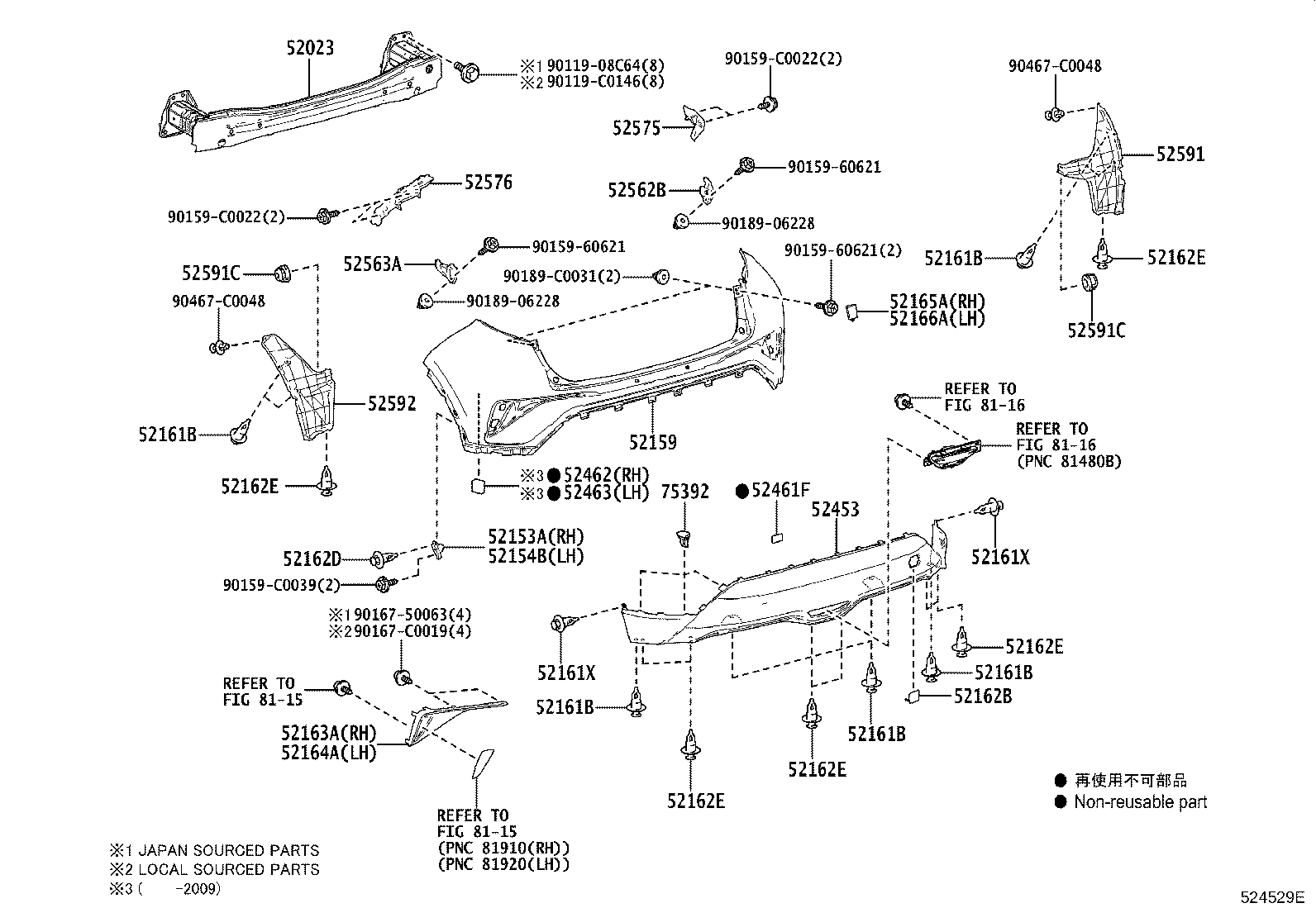

Exploded illustration 524529E 8115 — not listed in this catalogue 52165A — COVER, REAR BUMPER, UPR RH (1 parts) 52166A — COVER, REAR BUMPER, UPR LH (1 parts) 52163A — PLATE, REAR BUMPER, RH (1 parts) 52164A — PLATE, REAR BUMPER, LH (1 parts) 52153A — STAY, REAR BUMPER SIDE, RH (1 parts) 52154B — STAY, REAR BUMPER SIDE, LH (1 parts) 52462 — PAD, REAR BUMPER, RH (1 parts) 52463 — PAD, REAR BUMPER, LH (1 parts) 52023 — REINFORCEMENT SUB-ASSY, REAR BUMPER (1 parts) 52159 — COVER, REAR BUMPER (1 parts) 52162B — PLATE, REAR BUMPER, NO.1 (1 parts) 52161B — PIECE, REAR BUMPER (1 parts) 52162D — PIECE, REAR BUMPER (1 parts) 52161X — PIECE, REAR BUMPER (1 parts) 52161B — PIECE, REAR BUMPER (1 parts) 52161B — PIECE, REAR BUMPER (1 parts) 52161B — PIECE, REAR BUMPER (1 parts) 52162E — PIECE, REAR BUMPER (2 parts) 52161X — PIECE, REAR BUMPER (1 parts) 52161B — PIECE, REAR BUMPER (1 parts) 52162E — PIECE, REAR BUMPER (2 parts) 52162E — PIECE, REAR BUMPER (2 parts) 52162E — PIECE, REAR BUMPER (2 parts) 52162E — PIECE, REAR BUMPER (2 parts) 52453 — GUARD, REAR BUMPER, CENTER (1 parts) 52461F — PAD, REAR BUMPER (1 parts) 52562B — RETAINER, REAR BUMPER, UPPER RH (1 parts) 52563A — RETAINER, REAR BUMPER, UPPER LH (1 parts) 52575 — RETAINER, REAR BUMPER SIDE, RH (1 parts) 52576 — RETAINER, REAR BUMPER SIDE, LH (1 parts) 52591 — SEAL, REAR BUMPER SIDE, RH (1 parts) 52592 — SEAL, REAR BUMPER SIDE, LH (1 parts) 75392 — RETAINER, OUTSIDE MOULDING (1 parts) 9011908C64 — not listed in this catalogue 90119C0146 — not listed in this catalogue 90159C0022 — not listed in this catalogue 90159C0022 — not listed in this catalogue 90159C0039 — not listed in this catalogue 9015960621 — not listed in this catalogue 9018906228 — not listed in this catalogue 9018906228 — not listed in this catalogue 9015960621 — not listed in this catalogue 90167C0019 — not listed in this catalogue 9015960621 — not listed in this catalogue 90189C0031 — not listed in this catalogue 90467C0048 — not listed in this catalogue 90467C0048 — not listed in this catalogue 8115 — not listed in this catalogue 52591C — CLIP, REAR BUMPER SIDE SEAL (1 parts) 52591C — CLIP, REAR BUMPER SIDE SEAL (1 parts) 8116 — not listed in this catalogue 8116 — not listed in this catalogue 9016750063 — not listed in this catalogue
524529E · 35 callouts, 19 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
26 parts on this figure
Part number Description Fitment Price
52023 — Reinforcement Sub-assy, Rear Bumper
52023-F4030 Reinforcement Sub-assy, Rear Bumper
2020-05 → —
KPX10 —
52153A — Stay, Rear Bumper Side, RH
52153-F4020 Stay, Rear Bumper Side, RH
2020-05 → —
KPX10 —
52154B — Stay, Rear Bumper Side, LH
52154-F4020 Stay, Rear Bumper Side, LH
2020-05 → —
KPX10 —
52159 — Cover, Rear Bumper
52159-F4905 note Cover, Rear Bumper
2020-05 → —
KPX10 —
52161B — Piece, Rear Bumper
52161-02040 Piece, Rear Bumper
2020-05 → —
KPX10 —
52161X — Piece, Rear Bumper
52161-02040 Piece, Rear Bumper
2020-05 → —
KPX10 —
52162B — Plate, Rear Bumper, NO.1
52162-F4020 Plate, Rear Bumper, NO.1
2020-05 → —
KPX10 —
52162D — Piece, Rear Bumper
52161-02040 Piece, Rear Bumper
2020-05 → —
KPX10 —
52162E — Piece, Rear Bumper
52161-02040 note Piece, Rear Bumper
2020-05 → —
KPX10 —
52161-16010 note Piece, Rear Bumper
2020-05 → —
KPX10 —
52163A — Plate, Rear Bumper, RH
52163-F4060 Plate, Rear Bumper, RH
2020-05 → —
KPX10 —
52164A — Plate, Rear Bumper, LH
52164-F4060 Plate, Rear Bumper, LH
2020-05 → —
KPX10 —
52165A — Cover, Rear Bumper, Upr RH
52165-F4040 note Cover, Rear Bumper, Upr RH
2020-05 → —
KPX10 —
52166A — Cover, Rear Bumper, Upr LH
52166-F4040 note Cover, Rear Bumper, Upr LH
2020-05 → —
KPX10 —
52453 — Guard, Rear Bumper, Center
52453-F4200 Guard, Rear Bumper, Center
2020-05 → —
KPX10 —
52461F — Pad, Rear Bumper
52462-F4030 Pad, Rear Bumper
2020-05 → —
KPX10 —
52462 — Pad, Rear Bumper, RH
52462-F4040 Pad, Rear Bumper, RH
2020-05 → 2020-09 ended
KPX10 —
52463 — Pad, Rear Bumper, LH
52462-F4040 Pad, Rear Bumper, LH
2020-05 → 2020-09 ended
KPX10 —
52562B — Retainer, Rear Bumper, Upper RH
52562-F4020 Retainer, Rear Bumper, Upper RH
2020-05 → —
KPX10 —
52563A — Retainer, Rear Bumper, Upper LH
52563-F4020 Retainer, Rear Bumper, Upper LH
2020-05 → —
KPX10 —
52575 — Retainer, Rear Bumper Side, RH
52575-F4020 Retainer, Rear Bumper Side, RH
2020-05 → —
KPX10 —
52576 — Retainer, Rear Bumper Side, LH
52576-F4020 Retainer, Rear Bumper Side, LH
2020-05 → —
KPX10 —
52591 — Seal, Rear Bumper Side, RH
52591-F4020 Seal, Rear Bumper Side, RH
2020-05 → —
KPX10 —
52591C — Clip, Rear Bumper Side Seal
90467-C0052-C0 note Clip, Rear Bumper Side Seal
2020-05 → —
KPX10 —
52592 — Seal, Rear Bumper Side, LH
52592-F4020 Seal, Rear Bumper Side, LH
2020-05 → —
KPX10 —
75392 — Retainer, Outside Moulding
75392-0R030 Retainer, Outside Moulding
2020-05 → —
KPX10 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
