Toyota Izoa

2020-05 → 2022-07 · chassis KPX10 · catalogue 539310 · General

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

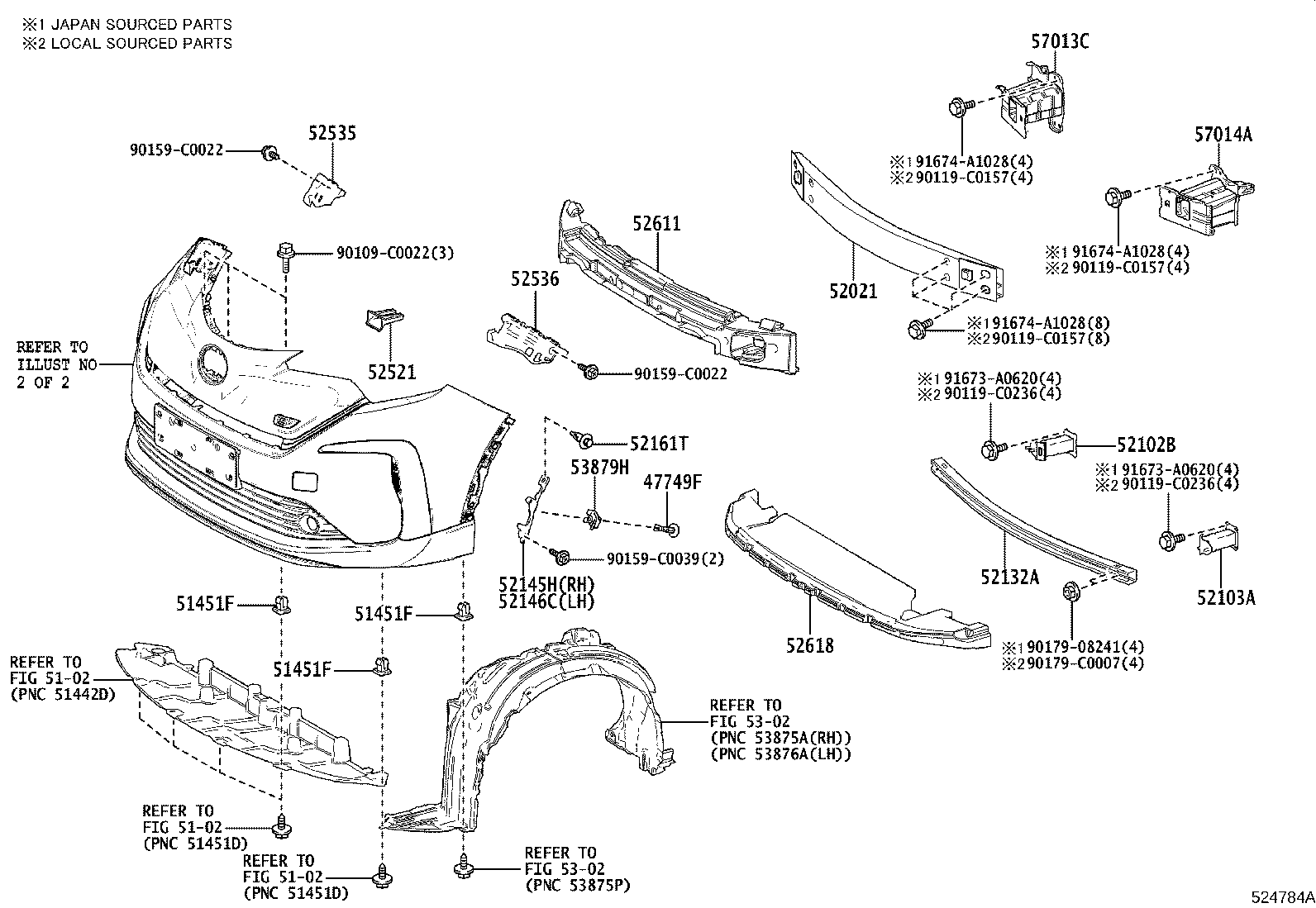

Exploded illustration 524784A 5302 — not listed in this catalogue 52145H — STAY, FRONT BUMPER SIDE, RH (1 parts) 52146C — STAY, FRONT BUMPER SIDE, LH (1 parts) 57013C — BRACKET SUB-ASSY, FRONT SIDE MEMBER, RH (1 parts) 52611 — ABSORBER, FRONT BUMPER ENERGY (1 parts) 52021 — REINFORCEMENT SUB-ASSY, FRONT BUMPER (1 parts) 52132A — REINFORCEMENT, FRONT BUMPER, NO.2 (1 parts) 52521 — RETAINER, FRONT BUMPER, UPPER CENTER (1 parts) 52102B — EXTENSION SUB-ASSY, FRONT BUMPER, RH (1 parts) 52103A — EXTENSION SUB-ASSY, FRONT BUMPER, LH (1 parts) 52618 — ABSORBER, FRONT BUMPER, LOWER (1 parts) 57014A — BRACKET SUB-ASSY, FRONT SIDE MEMBER, LH (1 parts) 5102 — not listed in this catalogue 5102 — not listed in this catalogue 5102 — not listed in this catalogue 5302 — not listed in this catalogue 90119C0157 — not listed in this catalogue 91674A1028 — not listed in this catalogue 90119C0157 — not listed in this catalogue 91674A1028 — not listed in this catalogue 90119C0157 — not listed in this catalogue 91674A1028 — not listed in this catalogue 90119C0236 — not listed in this catalogue 91673A0620 — not listed in this catalogue 91673A0620 — not listed in this catalogue 90119C0236 — not listed in this catalogue 90159C0039 — not listed in this catalogue 9017908241 — not listed in this catalogue 90179C0007 — not listed in this catalogue 90109C0022 — not listed in this catalogue 47749F — CLIP, PIN HOLD (1 parts) 52535 — RETAINER, FRONT BUMPER SIDE, RH (1 parts) 52536 — RETAINER, FRONT BUMPER SIDE, LH (1 parts) 53879H — RETAINER, FRONT FENDER LINER (1 parts) 90159C0022 — not listed in this catalogue 90159C0022 — not listed in this catalogue 52161T — PIECE, FRONT BUMPER (1 parts) 51451F — GROMMET, NO.1 (1 parts) 51451F — GROMMET, NO.1 (1 parts) 51451F — GROMMET, NO.1 (1 parts)
524784A · 19 callouts, 21 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
17 parts on this figure
Part number Description Fitment Price
47749F — Clip, Pin Hold
47749-50090 Clip, Pin Hold
2020-05 → —
KPX10 —
51451F — Grommet, NO.1
90189-C0020 Grommet, NO.1
2020-05 → —
KPX10 —
52021 — Reinforcement Sub-assy, Front Bumper
52021-F4010 Reinforcement Sub-assy, Front Bumper
2020-05 → —
KPX10 —
52102B — Extension Sub-assy, Front Bumper, RH
52102-F4010 Extension Sub-assy, Front Bumper, RH
2020-05 → —
KPX10 —
52103A — Extension Sub-assy, Front Bumper, LH
52102-F4010 Extension Sub-assy, Front Bumper, LH
2020-05 → —
KPX10 —
52132A — Reinforcement, Front Bumper, NO.2
52132-F4050 Reinforcement, Front Bumper, NO.2
2020-05 → —
KPX10 —
52145H — Stay, Front Bumper Side, RH
52145-F4050 Stay, Front Bumper Side, RH
2020-05 → —
KPX10 —
52146C — Stay, Front Bumper Side, LH
52146-F4050 Stay, Front Bumper Side, LH
2020-05 → —
KPX10 —
52161T — Piece, Front Bumper
52161-02040 Piece, Front Bumper
2020-05 → —
KPX10 —
52521 — Retainer, Front Bumper, Upper Center
52521-F4030 Retainer, Front Bumper, Upper Center
2020-05 → —
KPX10 —
52535 — Retainer, Front Bumper Side, RH
52535-F4020 Retainer, Front Bumper Side, RH
2020-05 → —
KPX10 —
52536 — Retainer, Front Bumper Side, LH
52536-F4020 Retainer, Front Bumper Side, LH
2020-05 → —
KPX10 —
52611 — Absorber, Front Bumper Energy
52611-F4050 Absorber, Front Bumper Energy
2020-05 → —
KPX10 —
52618 — Absorber, Front Bumper, Lower
52618-F4050 Absorber, Front Bumper, Lower
2020-05 → —
KPX10 —
53879H — Retainer, Front Fender Liner
53879-30050 Retainer, Front Fender Liner
2020-05 → —
KPX10 —
57013C — Bracket Sub-assy, Front Side Member, RH
57013-F4060 Bracket Sub-assy, Front Side Member, RH
2020-05 → —
KPX10 —
57014A — Bracket Sub-assy, Front Side Member, LH
57014-F4060 Bracket Sub-assy, Front Side Member, LH
2020-05 → —
KPX10 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
