Toyota Izoa
2020-05 → 2022-07 · chassis KPX10 · catalogue 539310 · General
Supported model
Data version 2023-05

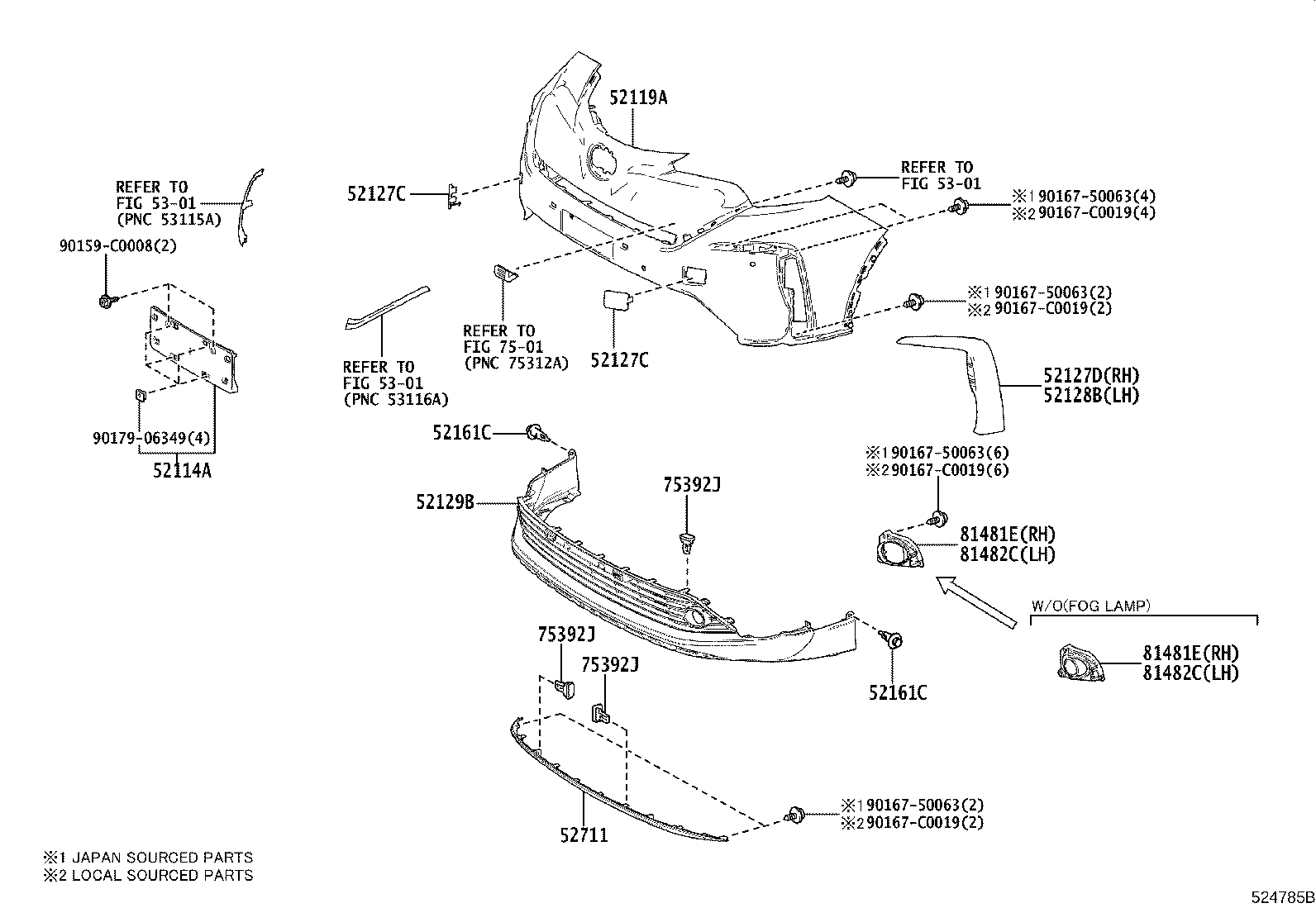

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 52114A — Bracket, Front Bumper Extension Mounting | ||||
| 52114-F4080 |
Bracket, Front Bumper Extension Mounting
2020-05 → —
|
KPX10 | — | |
| 52119A — Cover, Front Bumper | ||||
| 52119-F4915 note |
Cover, Front Bumper
2020-05 → —
|
KPX10 | — | |
| 52127C — Cover, Front Bumper Hole | ||||
| 52127-F4905 note |
Cover, Front Bumper Hole
2020-05 → —
|
KPX10 | — | |
| 52128-F4905 note |
Cover, Front Bumper Hole
2020-05 → —
|
KPX10 | — | |
| 52127D — Cover, Front Bumper Hole, RH | ||||
| 52127-F4070 |
Cover, Front Bumper Hole, RH
2020-05 → —
|
KPX10 | — | |
| 52128B — Cover, Front Bumper Hole, LH | ||||
| 52128-F4130 |
Cover, Front Bumper Hole, LH
2020-05 → —
|
KPX10 | — | |
| 52129B — Cover, Front Bumper, Lower | ||||
| 52129-F4090 |
Cover, Front Bumper, Lower
2020-05 → —
|
KPX10 | — | |
| 52161C — Piece, Front Bumper | ||||
| 52161-02040 |
Piece, Front Bumper
2020-05 → —
|
KPX10 | — | |
| 52711 — Moulding, Front Bumper | ||||
| 52711-F4030 note |
Moulding, Front Bumper
2020-05 → —
|
KPX10 | — | |
| 75392J — Retainer, Outside Moulding | ||||
| 75392-0R030 |
Retainer, Outside Moulding
2020-05 → —
|
KPX10 | — | |
| 81481E — Cover, Fog Lamp, RH | ||||
| 81481-F4090 |
Cover, Fog Lamp, RH
2020-05 → —
|
KPX10 D | — | |
| 81481-F4100 |
Cover, Fog Lamp, RH
2020-05 → —
|
KPX10 E,N | — | |
| 81482C — Cover, Fog Lamp, LH | ||||
| 81482-F4080 |
Cover, Fog Lamp, LH
2020-05 → —
|
KPX10 D | — | |
| 81482-F4090 |
Cover, Fog Lamp, LH
2020-05 → —
|
KPX10 E,N | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
