Toyota Izoa
2020-05 → 2022-07 · chassis KPX10 · catalogue 539310 · General
Supported model
Data version 2023-05

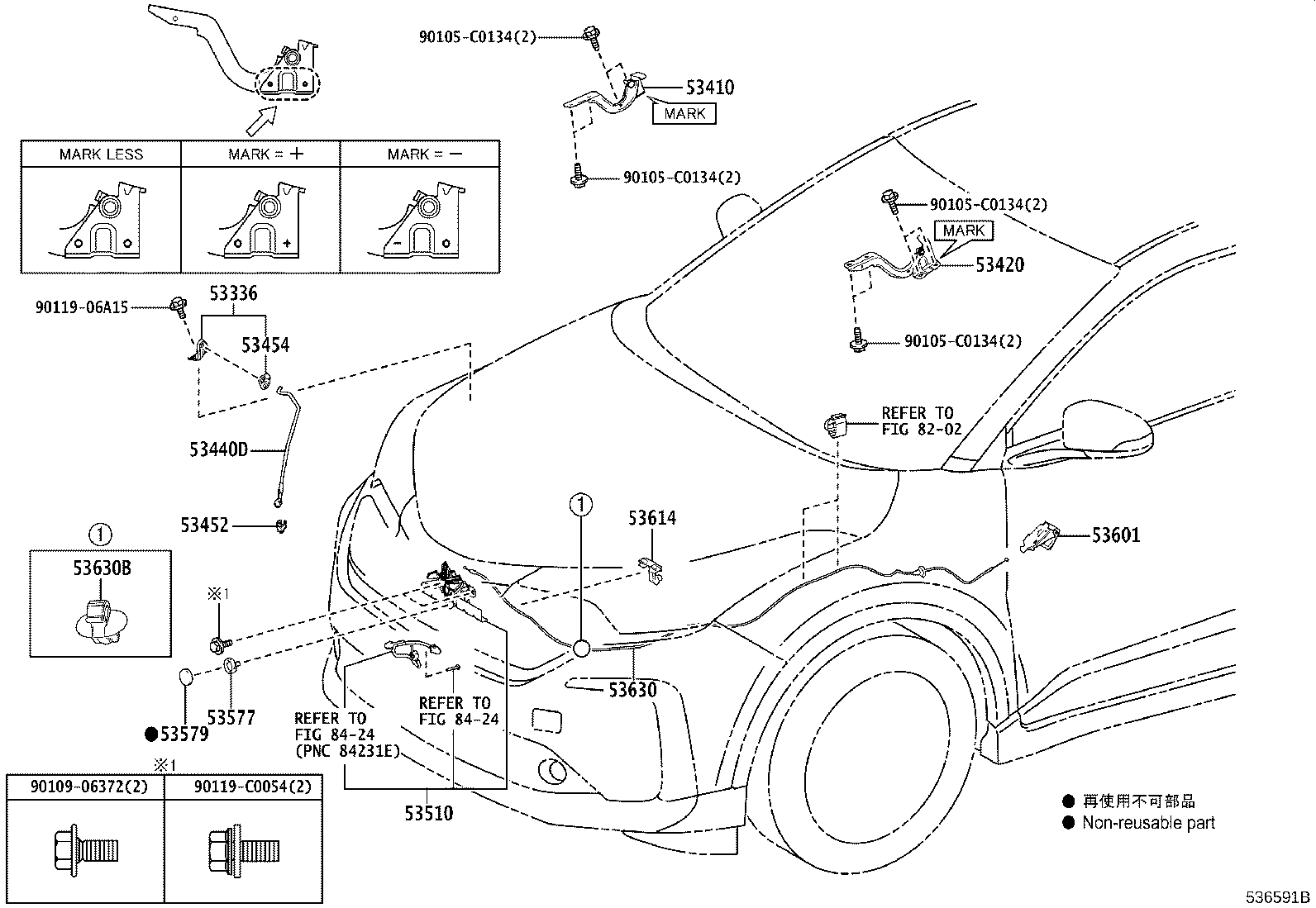

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 53336 — Bracket, Hood Stay, RH | ||||
| 53336-F4020 |
Bracket, Hood Stay, RH
2020-05 → —
|
KPX10 | — | |
| 53410 — Hinge Assy, Hood, RH | ||||
| 53410-F4070 note |
Hinge Assy, Hood, RH
2020-05 → —
|
KPX10 | — | |
| 53410-F4080 note |
Hinge Assy, Hood, RH
2020-05 → —
|
KPX10 | — | |
| 53410-F4090 note |
Hinge Assy, Hood, RH
2020-05 → —
|
KPX10 | — | |
| 53420 — Hinge Assy, Hood, LH | ||||
| 53420-F4070 note |
Hinge Assy, Hood, LH
2020-05 → —
|
KPX10 | — | |
| 53420-F4080 note |
Hinge Assy, Hood, LH
2020-05 → —
|
KPX10 | — | |
| 53420-F4090 note |
Hinge Assy, Hood, LH
2020-05 → —
|
KPX10 | — | |
| 53440D — Support Assy, Hood | ||||
| 53440-F4020 |
Support Assy, Hood
2020-05 → —
|
KPX10 | — | |
| 53452 — Holder, Hood Stay | ||||
| 53452-F4030 |
Holder, Hood Stay
2020-05 → —
|
KPX10 | — | |
| 53454 — Clip, Hood Support Rod | ||||
| 53454-02040 |
Clip, Hood Support Rod
2020-05 → —
|
KPX10 | — | |
| 53510 — Lock Assy, Hood | ||||
| 53510-F4070 |
Lock Assy, Hood
2020-05 → —
|
KPX10 | — | |
| 53577 — Bolt, Hood Lock | ||||
| 53577-33010 |
Bolt, Hood Lock
2020-05 → —
|
KPX10 | — | |
| 53579 — Cap, Hood Lock Nut | ||||
| 53579-50010 |
Cap, Hood Lock Nut
2020-05 → —
|
KPX10 | — | |
| 53601 — Lever Sub-assy, Hood Lock Control | ||||
| 53601-0D011-C1 note |
Lever Sub-assy, Hood Lock Control
2020-05 → —
|
KPX10 E | — | |
| 53601-0D011-C1 note |
Lever Sub-assy, Hood Lock Control
2020-05 → —
|
KPX10 D,N | — | |
| 53614 — Clamp, Hood Lock Control Cable | ||||
| 53614-F4030 |
Clamp, Hood Lock Control Cable
2020-05 → —
|
KPX10 | — | |
| 53630 — Cable Assy, Hood Lock Control | ||||
| 53630-F4041 |
Cable Assy, Hood Lock Control
2020-05 → —
|
KPX10 | — | |
| 53630B — Clamp(FOR HOOD LOCK CONTROL CABLE) | ||||
| 90469-C0004 |
Clamp(FOR HOOD LOCK CONTROL CABLE)
2020-05 → —
|
KPX10 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
