Toyota Izoa
2020-05 → 2022-07 · chassis KPX10 · catalogue 539310 · General
Supported model
Data version 2023-05

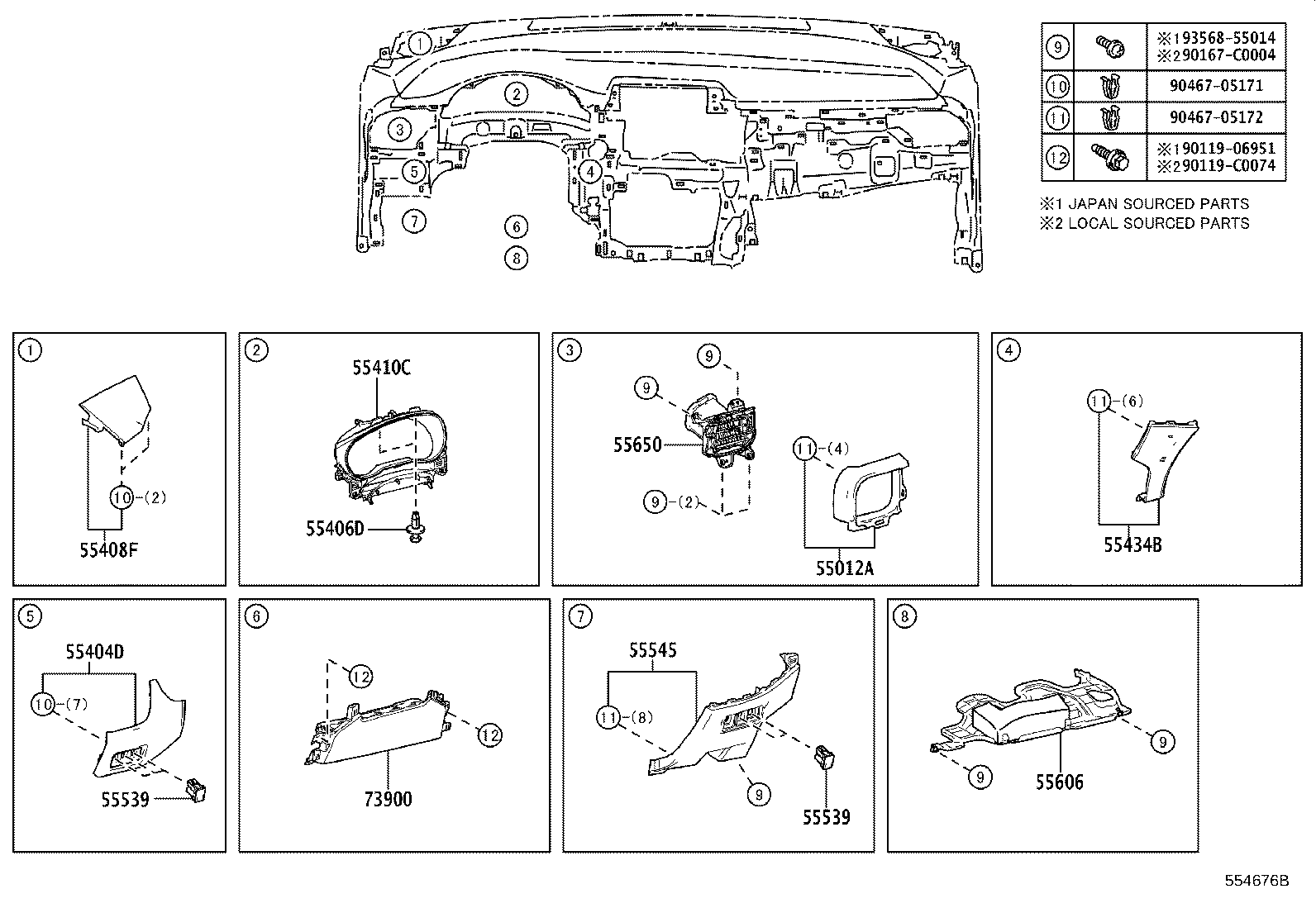

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 55012A — Garnish Sub-assy, Instrument Panel, NO.2 | ||||
| 55012-F4040-B0 note |
Garnish Sub-assy, Instrument Panel, NO.2
2020-05 → 2021-04
ended
|
KPX10 D | — | |
| 55012-F4040-B1 note |
Garnish Sub-assy, Instrument Panel, NO.2
2020-05 → 2021-04
ended
|
KPX10 E | — | |
| 55012-F4040-J0 note |
Garnish Sub-assy, Instrument Panel, NO.2
2020-05 → —
|
KPX10 N | — | |
| 55012-F4080-B0 note |
Garnish Sub-assy, Instrument Panel, NO.2
2021-04 → —
|
KPX10 E | — | |
| 55012-F4080-B1 note |
Garnish Sub-assy, Instrument Panel, NO.2
2021-04 → —
|
KPX10 D | — | |
| 55404D — Panel Sub-assy, Instrument Cluster Finish | ||||
| 55404-F4060-C0 note |
Panel Sub-assy, Instrument Cluster Finish
2020-05 → —
|
KPX10 E | — | |
| 55404-F4060-C0 note |
Panel Sub-assy, Instrument Cluster Finish
2020-05 → —
|
KPX10 D,N | — | |
| 55406D — Clip(FOR PANEL, INSTRUMENT CLUSTER FINISH) | ||||
| 90467-06165-C3 note |
Clip(FOR PANEL, INSTRUMENT CLUSTER FINISH)
2020-05 → 2021-11
ended
|
KPX10 | — | |
| 90467-06165-C3 note |
Clip(FOR PANEL, INSTRUMENT CLUSTER FINISH)
2021-11 → —
|
KPX10 | — | |
| 90467-C0047-C0 note |
Clip(FOR PANEL, INSTRUMENT CLUSTER FINISH)
2021-11 → —
|
KPX10 | — | |
| 55408F — Panel Sub-assy, Instrument Panel Speaker, NO.1 | ||||
| 55408-F4030-C0 note |
Panel Sub-assy, Instrument Panel Speaker, NO.1
2020-05 → —
|
KPX10 D,N | — | |
| 55408-F4030-C0 note |
Panel Sub-assy, Instrument Panel Speaker, NO.1
2020-05 → —
|
KPX10 E | — | |
| 55410C — Panel Assy, Instrument Cluster Finish | ||||
| 55410-F4060 |
Panel Assy, Instrument Cluster Finish
2020-05 → —
|
KPX10 | — | |
| 55434B — Panel, Instrument Panel Finish, Lower Center | ||||
| 55434-F4040-C0 note |
Panel, Instrument Panel Finish, Lower Center
2020-05 → —
|
KPX10 E | — | |
| 55434-F4040-C0 note |
Panel, Instrument Panel Finish, Lower Center
2020-05 → —
|
KPX10 D,N | — | |
| 55539 — Cover, Spare Switch Hole | ||||
| 55539-28160-C1 note |
Cover, Spare Switch Hole
2020-05 → —
|
KPX10 E | — | |
| 55539-28160-C1 note |
Cover, Spare Switch Hole
2020-05 → —
|
KPX10 D,N | — | |
| 55545 — Cover, Fuse Box Opening | ||||
| 55545-F4050-C0 note |
Cover, Fuse Box Opening
2020-05 → —
|
KPX10 E | — | |
| 55545-F4050-C0 note |
Cover, Fuse Box Opening
2020-05 → —
|
KPX10 D,N | — | |
| 55606 — Cover Sub-assy, Instrument Panel Under, NO.1 | ||||
| 55606-F4070 |
Cover Sub-assy, Instrument Panel Under, NO.1
2020-05 → —
|
KPX10 | — | |
| 55650 — Register Assy, Instrument Panel, NO.1 | ||||
| 55650-F4050 |
Register Assy, Instrument Panel, NO.1
2020-05 → —
|
KPX10 | — | |
| 73900 — Airbag Assy, Instrument Panel, Lower NO.1 | ||||
| 73900-F4030-C0 note |
Airbag Assy, Instrument Panel, Lower NO.1
2020-05 → —
|
KPX10 E | — | |
| 73900-F4030-C0 note |
Airbag Assy, Instrument Panel, Lower NO.1
2020-05 → —
|
KPX10 D,N | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
