Toyota Izoa
2020-05 → 2022-07 · chassis KPX10 · catalogue 539310 · General
Supported model
Data version 2023-05

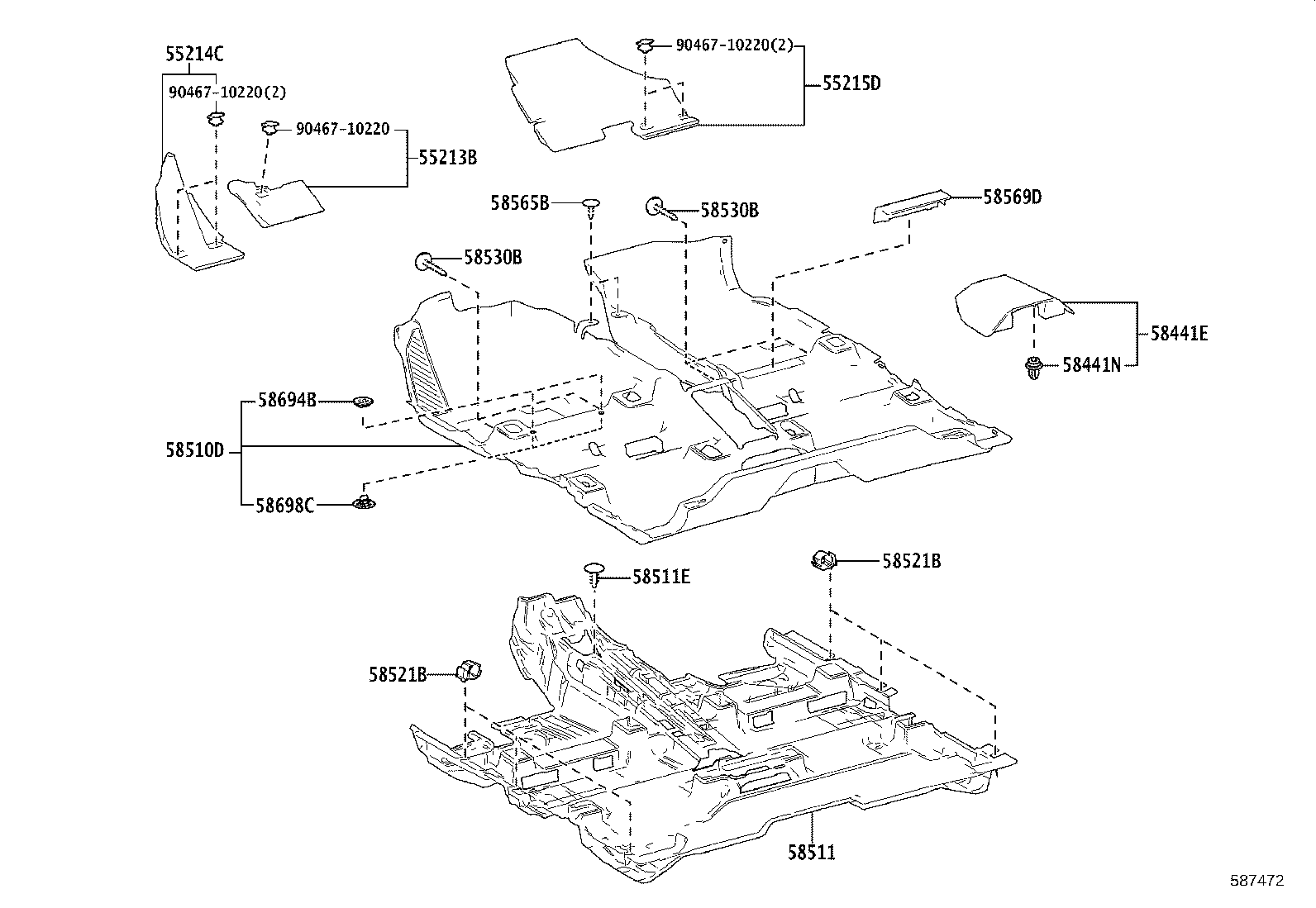

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 55213B — Pad, Dash Panel Insulator, NO.1 | ||||
| 55213-F4061 |
Pad, Dash Panel Insulator, NO.1
2020-05 → —
|
KPX10 | — | |
| 55214C — Pad, Dash Panel Insulator, NO.2 | ||||
| 55214-F4041 |
Pad, Dash Panel Insulator, NO.2
2020-05 → —
|
KPX10 | — | |
| 55215D — Pad, Dash Panel Insulator, NO.3 | ||||
| 55215-F4061 |
Pad, Dash Panel Insulator, NO.3
2020-05 → —
|
KPX10 | — | |
| 58441E — Cover, Battery Service Hole | ||||
| 58441-F4030-C0 note |
Cover, Battery Service Hole
2020-05 → —
|
KPX10 E | — | |
| 58441-F4030-C0 note |
Cover, Battery Service Hole
2020-05 → —
|
KPX10 D,N | — | |
| 58441N — Clip(FOR BATTERY SERVICE HOLE COVER) | ||||
| 90467-C0036 |
Clip(FOR BATTERY SERVICE HOLE COVER)
2020-05 → —
|
KPX10 | — | |
| 58510D — Carpet Assy, Floor, Front | ||||
| 58510-F4160-C0 note |
Carpet Assy, Floor, Front
2020-05 → —
|
KPX10 E | — | |
| 58510-F4160-C0 note |
Carpet Assy, Floor, Front
2020-05 → —
|
KPX10 D,N | — | |
| 58511 — Mat, Floor, Front | ||||
| 58511-F4080 |
Mat, Floor, Front
2020-05 → —
|
KPX10 | — | |
| 58511E — Clip(FOR FRONT FLOOR MAT) | ||||
| 90467-C0054-C0 note |
Clip(FOR FRONT FLOOR MAT)
2020-05 → —
|
KPX10 | — | |
| 58521B — Hook, Floor Carpet | ||||
| 58521-F4010 |
Hook, Floor Carpet
2020-05 → —
|
KPX10 | — | |
| 58530B — Clip(FOR FRONT FLOOR CARPET) | ||||
| 90467-07226-C0 note |
Clip(FOR FRONT FLOOR CARPET)
2020-05 → —
|
KPX10 E | — | |
| 90467-07226-C0 note |
Clip(FOR FRONT FLOOR CARPET)
2020-05 → —
|
KPX10 D,N | — | |
| 58565B — Clip | ||||
| 90467-C0016-C1 note |
Clip
2020-05 → —
|
KPX10 E | — | |
| 90467-C0016-C1 note |
Clip
2020-05 → —
|
KPX10 D,N | — | |
| 58569D — Cover, Front Floor Caution Plate | ||||
| 58569-F4030-C0 note |
Cover, Front Floor Caution Plate
2020-05 → —
|
KPX10 E | — | |
| 58569-F4030-C0 note |
Cover, Front Floor Caution Plate
2020-05 → —
|
KPX10 D,N | — | |
| 58694B — Plate, Mat Set, Upper | ||||
| 58694-78010 |
Plate, Mat Set, Upper
2020-05 → —
|
KPX10 | — | |
| 58698C — Plate, Mat Set, Lower | ||||
| 58698-78010 |
Plate, Mat Set, Lower
2020-05 → —
|
KPX10 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
