Toyota Izoa
2020-05 → 2022-07 · chassis KPX10 · catalogue 539310 · General
Supported model
Data version 2023-05

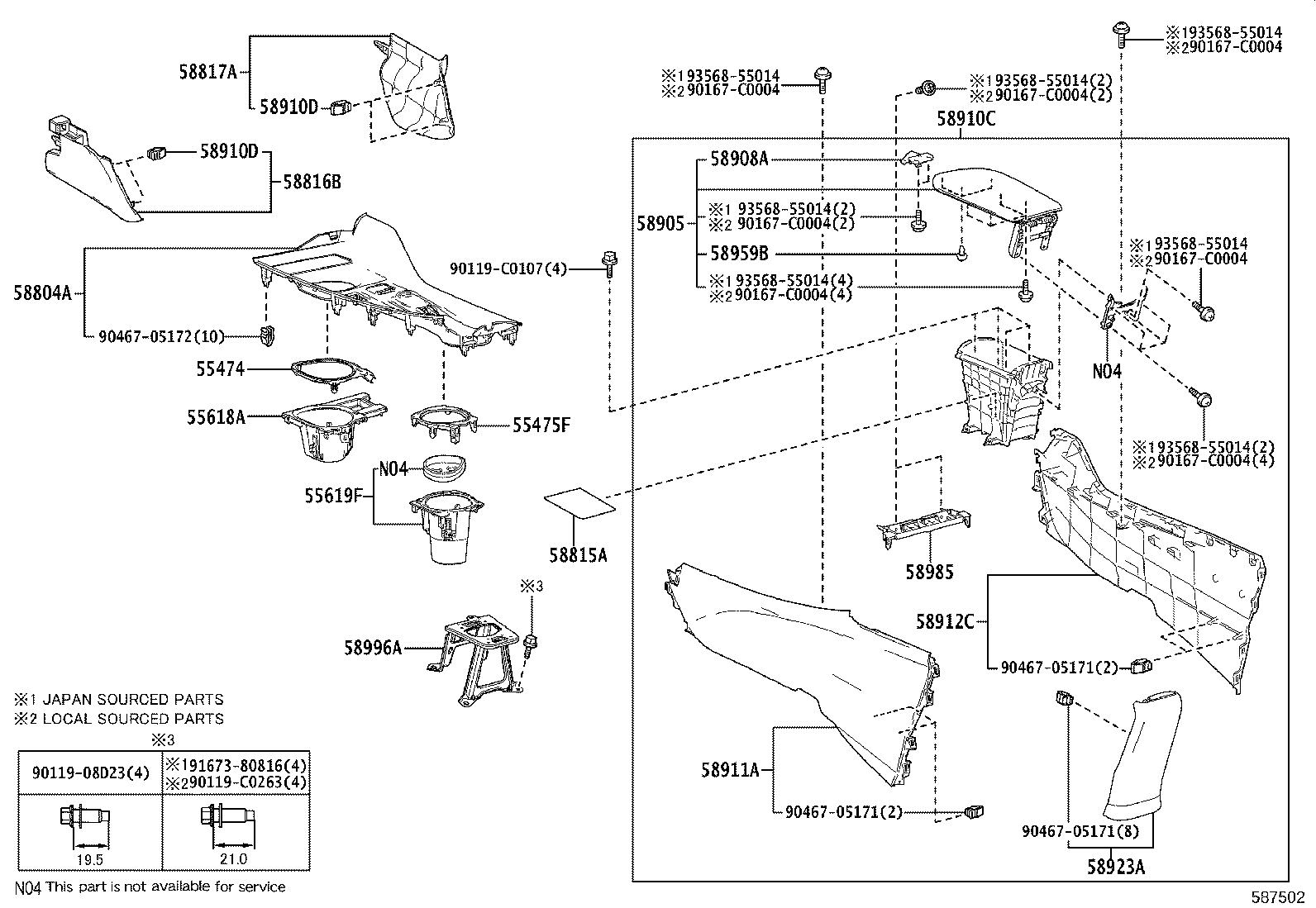

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 55474 — Garnish, Instrument Cluster Finish Panel, Center | ||||
| 55474-F4051 |
Garnish, Instrument Cluster Finish Panel, Center
2020-05 → —
|
KPX10 E,N | — | |
| 55474-F4070 |
Garnish, Instrument Cluster Finish Panel, Center
2020-05 → —
|
KPX10 D | — | |
| 55475F — Garnish, Instrument Cluster Finish Panel, Center NO.2 | ||||
| 55475-F4051 |
Garnish, Instrument Cluster Finish Panel, Center NO.2
2020-05 → —
|
KPX10 E,N | — | |
| 55475-F4070 |
Garnish, Instrument Cluster Finish Panel, Center NO.2
2020-05 → —
|
KPX10 D | — | |
| 55618A — Holder, Console Box Cup | ||||
| 55618-F4050 |
Holder, Console Box Cup
2020-05 → —
|
KPX10 | — | |
| 55619F — Holder, Console Box Cup, NO.2 | ||||
| 55619-F4070 |
Holder, Console Box Cup, NO.2
2020-05 → —
|
KPX10 | — | |
| 58804A — Panel Sub-assy, Console, Upper | ||||
| 58804-F4190 |
Panel Sub-assy, Console, Upper
2020-05 → —
|
KPX10 D | — | |
| 58804-F4200 |
Panel Sub-assy, Console, Upper
2020-05 → —
|
KPX10 E,N | — | |
| 58815A — Carpet, Console Box | ||||
| 58815-F4020 |
Carpet, Console Box
2020-05 → —
|
KPX10 | — | |
| 58816B — Insert, Console Box | ||||
| 58816-F4030-C0 note |
Insert, Console Box
2020-05 → —
|
KPX10 E | — | |
| 58816-F4030-C0 note |
Insert, Console Box
2020-05 → —
|
KPX10 D,N | — | |
| 58817A — Insert, Console Box, Front NO.2 | ||||
| 58817-F4030-C0 note |
Insert, Console Box, Front NO.2
2020-05 → —
|
KPX10 E | — | |
| 58817-F4030-C0 note |
Insert, Console Box, Front NO.2
2020-05 → —
|
KPX10 D,N | — | |
| 58905 — Door Sub-assy, Console Compartment | ||||
| 58905-F4040-C0 note |
Door Sub-assy, Console Compartment
2020-05 → —
|
KPX10 D | — | |
| 58905-F4040-C0 note |
Door Sub-assy, Console Compartment
2020-05 → —
|
KPX10 E | — | |
| 58905-F4040-E0 note |
Door Sub-assy, Console Compartment
2020-05 → —
|
KPX10 E | — | |
| 58905-F4040-J0 note |
Door Sub-assy, Console Compartment
2020-05 → —
|
KPX10 N | — | |
| 58908A — Lock Sub-assy, Console Compartment Door | ||||
| 58908-F4030 |
Lock Sub-assy, Console Compartment Door
2020-05 → —
|
KPX10 | — | |
| 58910C — Box Assy, Console, Rear | ||||
| 58910-F4020-C0 note |
Box Assy, Console, Rear
2020-05 → —
|
KPX10 N | — | |
| 58910-F4020-C1 note |
Box Assy, Console, Rear
2020-05 → —
|
KPX10 E | — | |
| 58910-F4020-C2 note |
Box Assy, Console, Rear
2020-05 → —
|
KPX10 D | — | |
| 58910-F4020-C2 note |
Box Assy, Console, Rear
2020-05 → —
|
KPX10 E | — | |
| 58910D — Clip(FOR CONSOLE BOX) | ||||
| 90467-05172 |
Clip(FOR CONSOLE BOX)
2020-05 → —
|
KPX10 | — | |
| 58911A — Panel, Box Side, NO.1 | ||||
| 58911-F4060-C0 note |
Panel, Box Side, NO.1
2020-05 → —
|
KPX10 E | — | |
| 58911-F4060-C0 note |
Panel, Box Side, NO.1
2020-05 → —
|
KPX10 D,N | — | |
| 58912C — Panel, Box Side, NO.2 | ||||
| 58912-F4060-C0 note |
Panel, Box Side, NO.2
2020-05 → —
|
KPX10 E | — | |
| 58912-F4060-C0 note |
Panel, Box Side, NO.2
2020-05 → —
|
KPX10 D,N | — | |
| 58923A — Panel, Console Rear End | ||||
| 58923-F4040-C0 note |
Panel, Console Rear End
2020-05 → —
|
KPX10 E | — | |
| 58923-F4040-C0 note |
Panel, Console Rear End
2020-05 → —
|
KPX10 D,N | — | |
| 58959B — Cushion, Console Compartment Door | ||||
| 58959-35010 |
Cushion, Console Compartment Door
2020-05 → —
|
KPX10 | — | |
| 58985 — Retainer, Console Box | ||||
| 58985-F4030 |
Retainer, Console Box
2020-05 → —
|
KPX10 | — | |
| 58996A — Bracket, Console Box Mounting, NO.2 | ||||
| 58996-F4050 |
Bracket, Console Box Mounting, NO.2
2020-05 → —
|
KPX10 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
