Toyota Izoa

2020-05 → 2022-07 · chassis KPX10 · catalogue 539310 · General

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

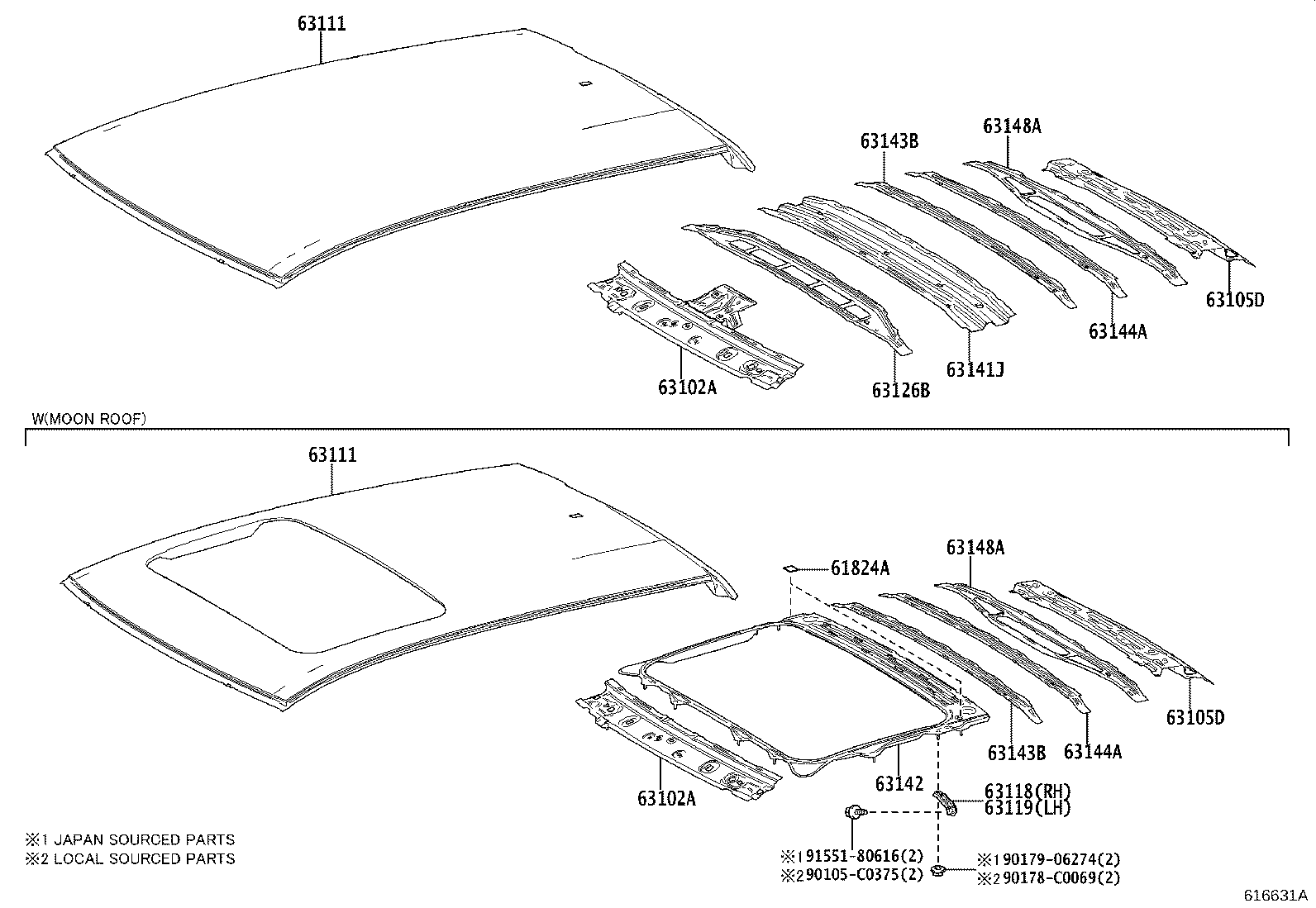

Exploded illustration 616631A 63102A — PANEL SUB-ASSY, WINDSHIELD HEADER (3 parts) 63126B — REINFORCEMENT, ROOF PANEL, REAR NO.2 (2 parts) 63141J — REINFORCEMENT, ROOF PANEL (2 parts) 63143B — REINFORCEMENT, ROOF PANEL, NO.3 (1 parts) 63144A — REINFORCEMENT, ROOF PANEL, NO.4 (1 parts) 63148A — REINFORCEMENT, ROOF PANEL, NO.7 (1 parts) 63105D — FRAME SUB-ASSY, BACK WINDOW, UPPER (1 parts) 63111 — PANEL, ROOF (3 parts) 63111 — PANEL, ROOF (3 parts) 63118 — SUPPORT, ROOF PANEL, RH (2 parts) 63119 — SUPPORT, ROOF PANEL, LH (2 parts) 9017906274 — not listed in this catalogue 90178C0069 — not listed in this catalogue 63102A — PANEL SUB-ASSY, WINDSHIELD HEADER (3 parts) 63143B — REINFORCEMENT, ROOF PANEL, NO.3 (1 parts) 63142 — REINFORCEMENT, ROOF PANEL, NO.2 (1 parts) 61824A — PLATE, NOISE CONTROL, NO.1 (1 parts) 63144A — REINFORCEMENT, ROOF PANEL, NO.4 (1 parts) 63148A — REINFORCEMENT, ROOF PANEL, NO.7 (1 parts) 63105D — FRAME SUB-ASSY, BACK WINDOW, UPPER (1 parts) 90105C0375 — not listed in this catalogue 9155180616 — not listed in this catalogue
616631A · 18 callouts, 4 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
20 parts on this figure
Part number Description Fitment Price
61824A — Plate, Noise Control, NO.1
61824-52070 Plate, Noise Control, NO.1
2020-05 → —
KPX10 E,N —
63102A — Panel Sub-assy, Windshield Header
63102-F4030 Panel Sub-assy, Windshield Header
2020-05 → —
KPX10 D —
63102-F4030 note Panel Sub-assy, Windshield Header
2020-05 → —
KPX10 E,N —
63132-F4030 Panel Sub-assy, Windshield Header
2020-05 → —
KPX10 E,N —
63105D — Frame Sub-assy, Back Window, Upper
63105-F4030 Frame Sub-assy, Back Window, Upper
2020-05 → —
KPX10 —
63111 — Panel, Roof
63111-F4030 Panel, Roof
2020-05 → —
KPX10 D —
63111-F4030 note Panel, Roof
2020-05 → —
KPX10 E,N —
63111-F4040 Panel, Roof
2020-05 → —
KPX10 E,N —
63118 — Support, Roof Panel, RH
63118-F4010 note Support, Roof Panel, RH
2020-05 → 2022-08 ended
KPX10 E,N —
63118-F4010 Support, Roof Panel, RH
2020-05 → —
KPX10 E,N —
63119 — Support, Roof Panel, LH
63119-F4010 note Support, Roof Panel, LH
2020-05 → 2022-08 ended
KPX10 E,N —
63119-F4010 Support, Roof Panel, LH
2020-05 → —
KPX10 E,N —
63126B — Reinforcement, Roof Panel, Rear NO.2
63126-F4030 Reinforcement, Roof Panel, Rear NO.2
2020-05 → —
KPX10 D —
63126-F4030 note Reinforcement, Roof Panel, Rear NO.2
2020-05 → —
KPX10 E,N —
63141J — Reinforcement, Roof Panel
63141-F4030 Reinforcement, Roof Panel
2020-05 → —
KPX10 D —
63141-F4030 note Reinforcement, Roof Panel
2020-05 → —
KPX10 E,N —
63142 — Reinforcement, Roof Panel, NO.2
63142-F4010 Reinforcement, Roof Panel, NO.2
2020-05 → —
KPX10 E,N —
63143B — Reinforcement, Roof Panel, NO.3
63143-F4030 Reinforcement, Roof Panel, NO.3
2020-05 → —
KPX10 —
63144A — Reinforcement, Roof Panel, NO.4
63144-F4030 Reinforcement, Roof Panel, NO.4
2020-05 → —
KPX10 —
63148A — Reinforcement, Roof Panel, NO.7
63148-F4030 Reinforcement, Roof Panel, NO.7
2020-05 → —
KPX10 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
