Exploded illustration 616655C 55748B — BRACE, COWL TOP INNER TO PILLAR, RH (1 parts) 61023B — PILLAR SUB-ASSY, FRONT BODY, INNER RH (1 parts) 61037A — REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH (1 parts) 61103A — REINFORCEMENT SUB-ASSY, COWL SIDE, RH (1 parts) 61106A — REINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER RH (1 parts) 61108D — REINFORCEMENT SUB-ASSY, FRONT PILLAR, LOWER RH (1 parts) 61141B — GUSSET, FRONT BODY PILLAR, UPPER RH (1 parts) 61203 — RAIL SUB-ASSY, ROOF SIDE, INNER RH (3 parts) 61211 — RAIL, ROOF SIDE, OUTER RH (1 parts) 61211C — RAIL, ROOF SIDE, RH (1 parts) 61305 — REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER RH (1 parts) 61403C — REINFORCE SUB-ASSY, ROCKER, OUTER RH (1 parts) 61631A — PANEL, QUARTER WHEEL HOUSE, OUTER RH (1 parts) 61607H — PANEL SUB-ASSY, QUARTER WHEEL HOUSE, INNER RH (1 parts) 61621D — TROUGH, BACK DOOR OPENING, RH (1 parts) 61673B — REINFORCEMENT, QUARTER WHEEL HOUSE, INNER RH (1 parts) 61703G — PANEL SUB-ASSY, QUARTER, INNER RH (1 parts) 61711 — PANEL, ROOF SIDE, OUTER RH (1 parts) 67812A — PAD, QUARTER PANEL SILENCER (1 parts) 61713B — REINFORCE, ROOF SIDE, OUTER RH (1 parts) 61715B — EXTENSION, ROOF SIDE, INNER FRONT RH (1 parts) 61717A — REINFORCEMENT, QUARTER PANEL EXTENSION, RH (1 parts) 61731B — PANEL, ROOF SIDE, INNER RH (1 parts) 61737D — REINFORCEMENT, ROOF SIDE, INNER RH (1 parts) 61773B — FRAME, BACK DOOR OPENING SIDE, UPPER RH (1 parts) 61777D — RETAINER, BACK DOOR SIDE STOPPER, RH (1 parts) 61824 — PLATE, NOISE CONTROL, NO.1 (1 parts) 61827A — PLATE, NOISE CONTROL, NO.4 (1 parts) 62152B — PAD, COWL SIDE SILENCER, NO.2 (1 parts) 63175C — REINFORCEMENT, BACK DOOR HINGE FEMALE, RH (1 parts) 68981A — RETAINER, BACK DOOR STAY, RH (1 parts) 9167380820 — not listed in this catalogue 9167380820 — not listed in this catalogue 90119C0116 — not listed in this catalogue 9011906802 — not listed in this catalogue 9415180800 — not listed in this catalogue 9017906308 — not listed in this catalogue 90182C0021 — not listed in this catalogue 9046706208 — not listed in this catalogue 90467C0072 — not listed in this catalogue 5701 — not listed in this catalogue 5304 — not listed in this catalogue 5304 — not listed in this catalogue 53821B — BRACKET, FRONT FENDER, REAR RH (2 parts) 61228C — RAIL, ROOF SIDE OUTER UPPER NO.3, RH (1 parts) 63236F — CLAMP, SLIDING ROOF DRAIN HOSE (1 parts) 90467C0050 — not listed in this catalogue 65637 — LINER, REAR WHEEL HOUSE, RH (1 parts) 90467C0050 — not listed in this catalogue 90467C0043 — not listed in this catalogue 90467C0050 — not listed in this catalogue 90119C0085 — not listed in this catalogue 90119C0085 — not listed in this catalogue 90178C0034 — not listed in this catalogue 90119C0116 — not listed in this catalogue 61401C — PANEL SUB-ASSY, ROCKER, OUTER RH (1 parts) 61637C — BRACE, QUARTER WHEEL HOUSE, NO.2 RH (1 parts) 90119C0116 — not listed in this catalogue 90105C0341 — not listed in this catalogue 61667D — SEAL, QUARTER PANEL (1 parts)

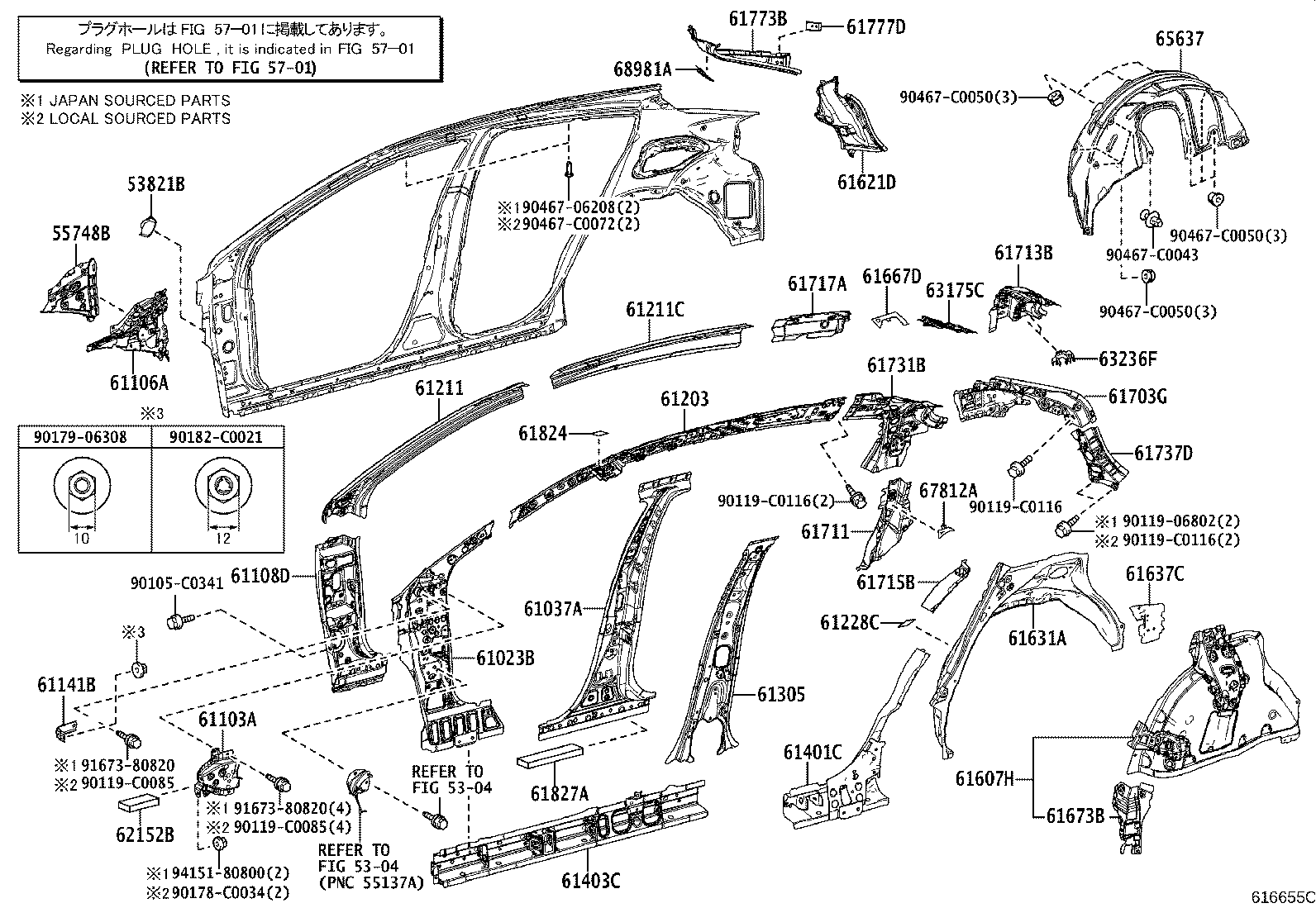

616655C · 38 callouts, 22 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
41 parts on this figure
Part number Description Fitment Price
53821B — Bracket, Front Fender, Rear RH
53821-0N020 note Bracket, Front Fender, Rear RH
2020-05 → —
KPX10 —
53821-30150 note Bracket, Front Fender, Rear RH
2020-05 → —
KPX10 —
55748B — Brace, Cowl Top Inner TO Pillar, RH
55748-F4040 Brace, Cowl Top Inner TO Pillar, RH
2020-05 → —
KPX10 —
61023B — Pillar Sub-assy, Front Body, Inner RH
61023-F4040 Pillar Sub-assy, Front Body, Inner RH
2020-05 → —
KPX10 —
61037A — Reinforcement Sub-assy, Center Body Pillar, RH
61037-F4041 Reinforcement Sub-assy, Center Body Pillar, RH
2020-05 → —
KPX10 —
61103A — Reinforcement Sub-assy, Cowl Side, RH
61103-F4020 Reinforcement Sub-assy, Cowl Side, RH
2020-05 → —
KPX10 —
61106A — Reinforce Sub-assy, Front Body Pillar, Upper RH
61106-F4040 Reinforce Sub-assy, Front Body Pillar, Upper RH
2020-05 → —
KPX10 —
61108D — Reinforcement Sub-assy, Front Pillar, Lower RH
61108-F4040 Reinforcement Sub-assy, Front Pillar, Lower RH
2020-05 → —
KPX10 —
61141B — Gusset, Front Body Pillar, Upper RH
61141-F4020 Gusset, Front Body Pillar, Upper RH
2020-05 → —
KPX10 —
61203 — Rail Sub-assy, Roof Side, Inner RH
61203-F4030 Rail Sub-assy, Roof Side, Inner RH
2020-05 → —
KPX10 D —
61203-F4030 note Rail Sub-assy, Roof Side, Inner RH
2020-05 → —
KPX10 E,N —
61203-F4050 Rail Sub-assy, Roof Side, Inner RH
2020-05 → —
KPX10 E,N —
61211 — Rail, Roof Side, Outer RH
61201-F4902 Rail, Roof Side, Outer RH
2020-05 → —
KPX10 —
61211C — Rail, Roof Side, RH
61211-F4040 Rail, Roof Side, RH
2020-05 → —
KPX10 —
61228C — Rail, Roof Side Outer Upper NO.3, RH
61228-F4020 Rail, Roof Side Outer Upper NO.3, RH
2020-05 → —
KPX10 —
61305 — Reinforce Sub-assy, Center Body Pillar, Lower RH
61305-F4030 Reinforce Sub-assy, Center Body Pillar, Lower RH
2020-05 → —
KPX10 —
61401C — Panel Sub-assy, Rocker, Outer RH
61401-F4030 Panel Sub-assy, Rocker, Outer RH
2020-05 → —
KPX10 —
61403C — Reinforce Sub-assy, Rocker, Outer RH
61403-F4903 Reinforce Sub-assy, Rocker, Outer RH
2020-05 → —
KPX10 —
61607H — Panel Sub-assy, Quarter Wheel House, Inner RH
61607-F4100 Panel Sub-assy, Quarter Wheel House, Inner RH
2020-05 → —
KPX10 —
61621D — Trough, Back Door Opening, RH
61621-F4030 Trough, Back Door Opening, RH
2020-05 → —
KPX10 —
61631A — Panel, Quarter Wheel House, Outer RH
61631-F4901 Panel, Quarter Wheel House, Outer RH
2020-05 → —
KPX10 —
61637C — Brace, Quarter Wheel House, NO.2 RH
61637-F4030 Brace, Quarter Wheel House, NO.2 RH
2020-05 → —
KPX10 —
61667D — Seal, Quarter Panel
61667-F4020 Seal, Quarter Panel
2020-05 → —
KPX10 —
61673B — Reinforcement, Quarter Wheel House, Inner RH
61673-F4030 Reinforcement, Quarter Wheel House, Inner RH
2020-05 → —
KPX10 —
61703G — Panel Sub-assy, Quarter, Inner RH
61703-F4050 Panel Sub-assy, Quarter, Inner RH
2020-05 → —
KPX10 —
61711 — Panel, Roof Side, Outer RH
61711-F4050 Panel, Roof Side, Outer RH
2020-05 → —
KPX10 —
61713B — Reinforce, Roof Side, Outer RH
61713-F4030 Reinforce, Roof Side, Outer RH
2020-05 → —
KPX10 —
61715B — Extension, Roof Side, Inner Front RH
61715-F4070 Extension, Roof Side, Inner Front RH
2020-05 → —
KPX10 —
61717A — Reinforcement, Quarter Panel Extension, RH
61717-F4030 Reinforcement, Quarter Panel Extension, RH
2020-05 → —
KPX10 —
61731B — Panel, Roof Side, Inner RH
61731-F4030 Panel, Roof Side, Inner RH
2020-05 → —
KPX10 —
61737D — Reinforcement, Roof Side, Inner RH
61737-F4030 Reinforcement, Roof Side, Inner RH
2020-05 → —
KPX10 —
61773B — Frame, Back Door Opening Side, Upper RH
61773-F4030 Frame, Back Door Opening Side, Upper RH
2020-05 → —
KPX10 —
61777D — Retainer, Back Door Side Stopper, RH
61777-F4030 Retainer, Back Door Side Stopper, RH
2020-05 → —
KPX10 —
61824 — Plate, Noise Control, NO.1
61824-12070 Plate, Noise Control, NO.1
2020-05 → —
KPX10 —
61827A — Plate, Noise Control, NO.4
61827-02080 Plate, Noise Control, NO.4
2020-05 → —
KPX10 —
62152B — Pad, Cowl Side Silencer, NO.2
62152-12050 Pad, Cowl Side Silencer, NO.2
2020-05 → —
KPX10 —
63175C — Reinforcement, Back Door Hinge Female, RH
63175-F4030 Reinforcement, Back Door Hinge Female, RH
2020-05 → —
KPX10 —
63236F — Clamp, Sliding Roof Drain Hose
63236-F4020 Clamp, Sliding Roof Drain Hose
2020-05 → —
KPX10 —
65637 — Liner, Rear Wheel House, RH
65637-F4070 Liner, Rear Wheel House, RH
2020-05 → —
KPX10 —
67812A — Pad, Quarter Panel Silencer
67812-F4020 Pad, Quarter Panel Silencer
2020-05 → —
KPX10 —
68981A — Retainer, Back Door Stay, RH
68981-F4030 Retainer, Back Door Stay, RH
2020-05 → —
KPX10 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
