Toyota Izoa

2020-05 → 2022-07 · chassis KPX10 · catalogue 539310 · General

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

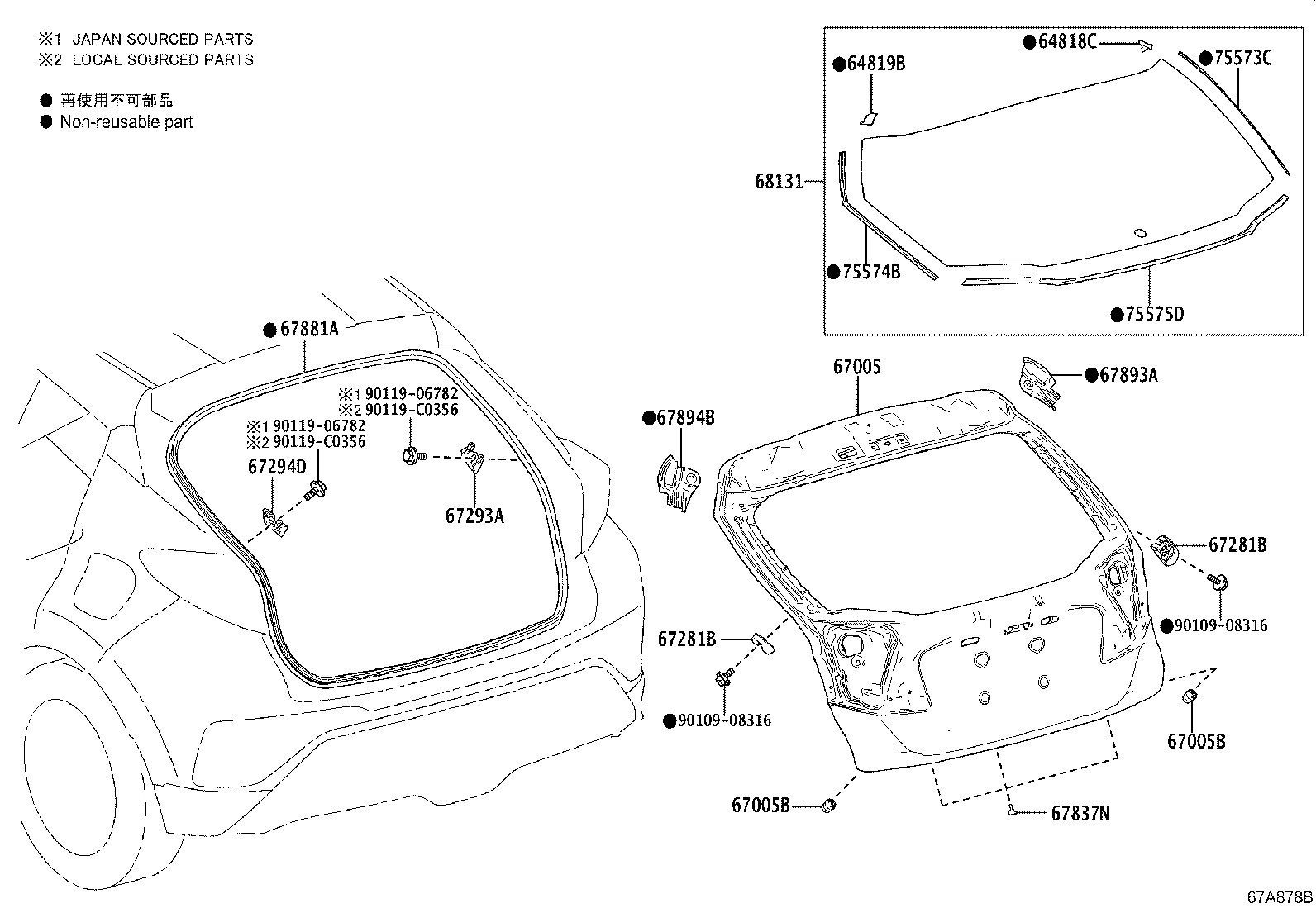

Exploded illustration 67A878B 67005B — CUSHION(FOR BACK DOOR PANEL) (1 parts) 67005B — CUSHION(FOR BACK DOOR PANEL) (1 parts) 67837N — SEAL, BACK DOOR DUST PROOF (1 parts) 67005 — PANEL SUB-ASSY, BACK DOOR (2 parts) 67893A — PROTECTOR, BACK DOOR PANEL, NO.1 (1 parts) 67894B — PROTECTOR, BACK DOOR PANEL, NO.2 (1 parts) 68131 — GLASS, BACK DOOR (2 parts) 75573C — MOULDING, BACK WINDOW, OUTSIDE (2 parts) 75574B — MOULDING, BACK WINDOW, OUTSIDE LH (2 parts) 75575D — MOULDING, BACK WINDOW, LOWER (2 parts) 64818C — SPACER, BACK WINDOW GLASS, NO.1 (2 parts) 64819B — SPACER, BACK WINDOW GLASS, NO.2 (2 parts) 67281B — STOPPER, BACK DOOR, LOWER (1 parts) 67281B — STOPPER, BACK DOOR, LOWER (1 parts) 67881A — WEATHERSTRIP, BACK DOOR (1 parts) 9010908316 — not listed in this catalogue 9011906782 — not listed in this catalogue 90119C0356 — not listed in this catalogue 9011906782 — not listed in this catalogue 90119C0356 — not listed in this catalogue 67293A — CUSHION, BACK DOOR STOPPER (2 parts) 67294D — CUSHION, BACK DOOR STOPPER, LH (2 parts) 9010908316 — not listed in this catalogue
67A878B · 17 callouts, 6 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
24 parts on this figure
Part number Description Fitment Price
64818C — Spacer, Back Window Glass, NO.1
64818-F4030 note Spacer, Back Window Glass, NO.1
2020-05 → —
KPX10 —
64818-F4050 note Spacer, Back Window Glass, NO.1
2020-05 → —
KPX10 —
64819B — Spacer, Back Window Glass, NO.2
64819-F4030 note Spacer, Back Window Glass, NO.2
2020-05 → —
KPX10 —
64819-F4050 note Spacer, Back Window Glass, NO.2
2020-05 → —
KPX10 —
67005 — Panel Sub-assy, Back Door
67005-F4080 Panel Sub-assy, Back Door
2020-05 → —
KPX10 D —
67005-F4090 Panel Sub-assy, Back Door
2020-05 → —
KPX10 E,N —
67005B — Cushion(FOR BACK DOOR PANEL)
90541-09142 Cushion(FOR BACK DOOR PANEL)
2020-05 → —
KPX10 —
67281B — Stopper, Back Door, Lower
67281-F4020 Stopper, Back Door, Lower
2020-05 → —
KPX10 —
67293A — Cushion, Back Door Stopper
67293-F4021 Cushion, Back Door Stopper
2020-05 → 2021-04 ended
KPX10 —
67293-F4022 Cushion, Back Door Stopper
2021-05 → —
KPX10 —
67294D — Cushion, Back Door Stopper, LH
67294-F4021 Cushion, Back Door Stopper, LH
2020-05 → 2021-04 ended
KPX10 —
67294-F4022 Cushion, Back Door Stopper, LH
2021-05 → —
KPX10 —
67837N — Seal, Back Door Dust Proof
67837-F4080 Seal, Back Door Dust Proof
2020-05 → —
KPX10 —
67881A — Weatherstrip, Back Door
67881-F4030 Weatherstrip, Back Door
2020-05 → —
KPX10 —
67893A — Protector, Back Door Panel, NO.1
67893-F4020 Protector, Back Door Panel, NO.1
2020-05 → —
KPX10 —
67894B — Protector, Back Door Panel, NO.2
67894-F4020 Protector, Back Door Panel, NO.2
2020-05 → —
KPX10 —
68131 — Glass, Back Door
68105-F4340 note Glass, Back Door
2020-05 → —
KPX10 —
68105-F4350 note Glass, Back Door
2020-05 → —
KPX10 —
75573C — Moulding, Back Window, Outside
75573-F4030 note Moulding, Back Window, Outside
2020-05 → —
KPX10 —
75573-F4050 note Moulding, Back Window, Outside
2020-05 → —
KPX10 —
75574B — Moulding, Back Window, Outside LH
75574-F4030 note Moulding, Back Window, Outside LH
2020-05 → —
KPX10 —
75574-F4050 note Moulding, Back Window, Outside LH
2020-05 → —
KPX10 —
75575D — Moulding, Back Window, Lower
75575-F4030 note Moulding, Back Window, Lower
2020-05 → —
KPX10 —
75575-F4050 note Moulding, Back Window, Lower
2020-05 → —
KPX10 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
