Toyota Izoa
2020-05 → 2022-07 · chassis KPX10 · catalogue 539310 · General
Supported model
Data version 2023-05

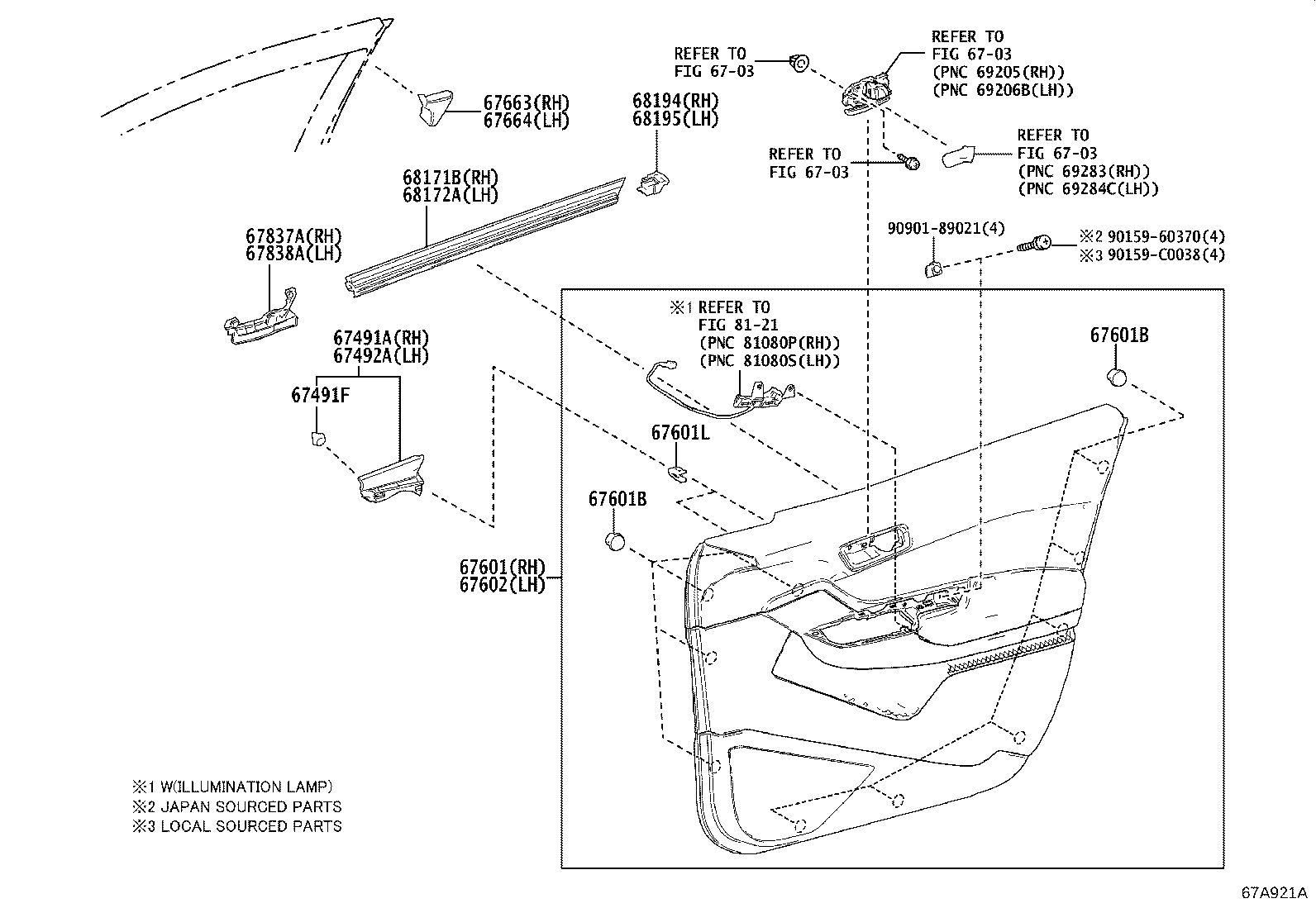

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 67491A — Garnish, Front Door Lower Frame Bracket, RH | ||||
| 67491-F4020-C0 note |
Garnish, Front Door Lower Frame Bracket, RH
2020-05 → —
|
KPX10 D,N | — | |
| 67491-F4020-C0 note |
Garnish, Front Door Lower Frame Bracket, RH
2020-05 → —
|
KPX10 E | — | |
| 67491F — Clip(FOR DOOR TRIM) | ||||
| 90467-09203 |
Clip(FOR DOOR TRIM)
2020-05 → —
|
KPX10 | — | |
| 67492A — Garnish, Front Door Lower Frame Bracket, LH | ||||
| 67492-F4020-C0 note |
Garnish, Front Door Lower Frame Bracket, LH
2020-05 → —
|
KPX10 E | — | |
| 67492-F4020-C0 note |
Garnish, Front Door Lower Frame Bracket, LH
2020-05 → —
|
KPX10 D,N | — | |
| 67601 — Board Sub-assy, Front Door Trim, RH | ||||
| 67610-F4060-C1 note |
Board Sub-assy, Front Door Trim, RH
2020-05 → —
|
KPX10 D | — | |
| 67610-F4070-C2 note |
Board Sub-assy, Front Door Trim, RH
2020-05 → —
|
KPX10 N | — | |
| 67610-F4070-C3 note |
Board Sub-assy, Front Door Trim, RH
2020-05 → 2021-04
ended
|
KPX10 E | — | |
| 67610-F4070-C4 note |
Board Sub-assy, Front Door Trim, RH
2020-05 → 2021-04
ended
|
KPX10 E | — | |
| 67610-F4070-C7 note |
Board Sub-assy, Front Door Trim, RH
2021-04 → —
|
KPX10 E | — | |
| 67610-F4070-C8 note |
Board Sub-assy, Front Door Trim, RH
2021-04 → —
|
KPX10 E | — | |
| 67601B — Clip(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-C0033 |
Clip(FOR FRONT DOOR TRIM BOARD)
2020-05 → —
|
KPX10 | — | |
| 67601L — Clip(FOR FRONT DOOR TRIM BOARD) | ||||
| 67773-07020 |
Clip(FOR FRONT DOOR TRIM BOARD)
2020-05 → —
|
KPX10 | — | |
| 67602 — Board Sub-assy, Front Door Trim, LH | ||||
| 67620-F4060-C1 note |
Board Sub-assy, Front Door Trim, LH
2020-05 → —
|
KPX10 D | — | |
| 67620-F4070-C2 note |
Board Sub-assy, Front Door Trim, LH
2020-05 → —
|
KPX10 N | — | |
| 67620-F4070-C3 note |
Board Sub-assy, Front Door Trim, LH
2020-05 → 2021-04
ended
|
KPX10 E | — | |
| 67620-F4070-C4 note |
Board Sub-assy, Front Door Trim, LH
2020-05 → 2021-04
ended
|
KPX10 E | — | |
| 67620-F4070-C7 note |
Board Sub-assy, Front Door Trim, LH
2021-04 → —
|
KPX10 E | — | |
| 67620-F4070-C8 note |
Board Sub-assy, Front Door Trim, LH
2021-04 → —
|
KPX10 E | — | |
| 67663 — Garnish, Door Frame, Upper RH | ||||
| 67663-F4020 |
Garnish, Door Frame, Upper RH
2020-05 → —
|
KPX10 | — | |
| 67664 — Garnish, Door Frame, Upper LH | ||||
| 67664-F4020 |
Garnish, Door Frame, Upper LH
2020-05 → —
|
KPX10 | — | |
| 67837A — Seal, Front Door Vent, RH | ||||
| 67837-F4040 |
Seal, Front Door Vent, RH
2020-05 → —
|
KPX10 | — | |
| 67838A — Seal, Front Door Vent, LH | ||||
| 67838-F4020 |
Seal, Front Door Vent, LH
2020-05 → —
|
KPX10 | — | |
| 68171B — Weatherstrip, Front Door Glass, Inner RH | ||||
| 68171-F4030 |
Weatherstrip, Front Door Glass, Inner RH
2020-05 → —
|
KPX10 | — | |
| 68172A — Weatherstrip, Front Door Glass, Inner LH | ||||
| 68172-F4030 |
Weatherstrip, Front Door Glass, Inner LH
2020-05 → —
|
KPX10 | — | |
| 68194 — Seal, Front Door Belt, RH | ||||
| 68194-F4020 |
Seal, Front Door Belt, RH
2020-05 → —
|
KPX10 | — | |
| 68195 — Seal, Front Door Belt, LH | ||||
| 68195-F4020 |
Seal, Front Door Belt, LH
2020-05 → —
|
KPX10 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
