Toyota Izoa

2020-05 → 2022-07 · chassis KPX10 · catalogue 539310 · General

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes
Exploded illustration 67A922D 67841E — COVER, REAR DOOR SERVICE HOLE, RH (1 parts) 67842E — COVER, REAR DOOR SERVICE HOLE, LH (1 parts) 67003 — PANEL SUB-ASSY, REAR DOOR, RH (1 parts) 67003C — CUSHION, REAR DOOR PANEL (3 parts) 67004 — PANEL SUB-ASSY, REAR DOOR, LH (1 parts) 67837C — SEAL, REAR DOOR DUST PROOF (2 parts) 67837C — SEAL, REAR DOOR DUST PROOF (2 parts) 67845D — SEAL, REAR DOOR FRONT OUTSIDE, RH (1 parts) 67846A — SEAL, REAR DOOR FRONT OUTSIDE, LH (1 parts) 67867D — RETAINER, REAR DOOR WEATHERSTRIP, RH (1 parts) 67868D — RETAINER, REAR DOOR WEATHERSTRIP, LH (1 parts) 67871 — WEATHERSTRIP, REAR DOOR, RH (1 parts) 67872 — WEATHERSTRIP, REAR DOOR, LH (1 parts) 68630D — CHECK ASSY, REAR DOOR, RH (1 parts) 68640A — CHECK ASSY, REAR DOOR, LH (1 parts) 75977H — STRIPE, REAR DOOR OUTSIDE, LOWER RH (1 parts) 75978H — STRIPE, REAR DOOR OUTSIDE, LOWER LH (1 parts) 90109C0028 — not listed in this catalogue 90119C0107 — not listed in this catalogue 9095001604 — not listed in this catalogue 9095001958 — not listed in this catalogue 90950C1008 — not listed in this catalogue 67927C — CUSHION, SEPARATOR DOOR STIFFENER, NO.1 (1 parts) 67928C — CUSHION, SEPARATOR DOOR STIFFENER, NO.2 (1 parts) 91673A0620 — not listed in this catalogue 86262D — COVER, REAR DOOR SPEAKER (1 parts) 9026905034 — not listed in this catalogue 90119C0236 — not listed in this catalogue 67407F — FRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER RH (1 parts) 67408F — FRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER LH (1 parts) 68103 — GLASS SUB-ASSY, REAR DOOR, RH (1 parts) 68104 — GLASS SUB-ASSY, REAR DOOR, LH (1 parts) 68142C — RUN, REAR DOOR GLASS, RH (1 parts) 68152C — RUN, REAR DOOR GLASS, LH (1 parts) 68188 — WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH (1 parts) 68189 — WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH (1 parts) 9015150026 — not listed in this catalogue 90151C0001 — not listed in this catalogue 75987F — STRIPE, REAR DOOR, OUTSIDE, RH (1 parts) 75988E — STRIPE, REAR DOOR, OUTSIDE LH (1 parts) 68123B — GLASS, REAR DOOR QUARTER WINDOW, RH (1 parts) 68124B — GLASS, REAR DOOR QUARTER WINDOW, LH (1 parts) 9033325001 — not listed in this catalogue 9095001841 — not listed in this catalogue 9095006115 — not listed in this catalogue 9095006105 — not listed in this catalogue 9011906983 — not listed in this catalogue 90119C0099 — not listed in this catalogue 9033325001 — not listed in this catalogue 9095006115 — not listed in this catalogue 9095006105 — not listed in this catalogue 7503 — not listed in this catalogue 6707 — not listed in this catalogue 6707 — not listed in this catalogue

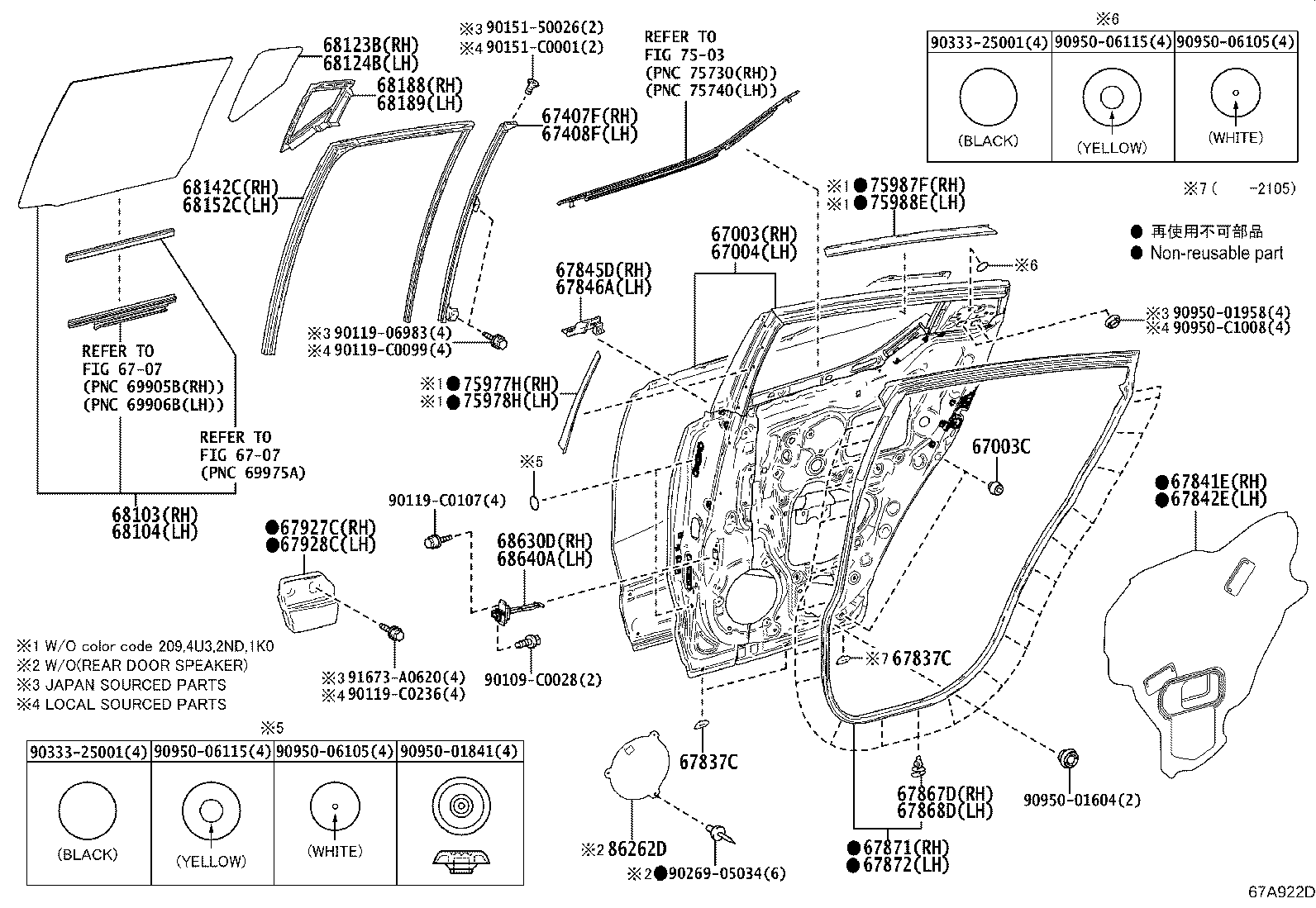

67A922D · 32 callouts, 22 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
34 parts on this figure
Part number Description Fitment Price
67003 — Panel Sub-assy, Rear Door, RH
67003-F4060 Panel Sub-assy, Rear Door, RH
2020-05 → —
KPX10 —
67003C — Cushion, Rear Door Panel
90541-09124 note Cushion, Rear Door Panel
2020-05 → —
KPX10 —
90541-09143 note Cushion, Rear Door Panel
2020-05 → —
KPX10 —
90541-C0003 note Cushion, Rear Door Panel
2020-08 → —
KPX10 —
67004 — Panel Sub-assy, Rear Door, LH
67004-F4060 Panel Sub-assy, Rear Door, LH
2020-05 → —
KPX10 —
67407F — Frame Sub-assy, Rear Door Window, Rear Lower RH
67407-F4030 Frame Sub-assy, Rear Door Window, Rear Lower RH
2020-05 → —
KPX10 —
67408F — Frame Sub-assy, Rear Door Window, Rear Lower LH
67408-F4030 Frame Sub-assy, Rear Door Window, Rear Lower LH
2020-05 → —
KPX10 —
67837C — Seal, Rear Door Dust Proof
67837-F4030 Seal, Rear Door Dust Proof
2020-05 → 2021-05 ended
KPX10 —
67837-F4030 Seal, Rear Door Dust Proof
2021-05 → —
KPX10 —
67841E — Cover, Rear Door Service Hole, RH
67841-F4060 Cover, Rear Door Service Hole, RH
2020-05 → —
KPX10 —
67842E — Cover, Rear Door Service Hole, LH
67842-F4060 Cover, Rear Door Service Hole, LH
2020-05 → —
KPX10 —
67845D — Seal, Rear Door Front Outside, RH
67845-F4020 Seal, Rear Door Front Outside, RH
2020-05 → —
KPX10 —
67846A — Seal, Rear Door Front Outside, LH
67846-F4020 Seal, Rear Door Front Outside, LH
2020-05 → —
KPX10 —
67867D — Retainer, Rear Door Weatherstrip, RH
67867-12150 Retainer, Rear Door Weatherstrip, RH
2020-05 → —
KPX10 —
67868D — Retainer, Rear Door Weatherstrip, LH
67867-12150 Retainer, Rear Door Weatherstrip, LH
2020-05 → —
KPX10 —
67871 — Weatherstrip, Rear Door, RH
67871-F4030 Weatherstrip, Rear Door, RH
2020-05 → —
KPX10 —
67872 — Weatherstrip, Rear Door, LH
67872-F4030 Weatherstrip, Rear Door, LH
2020-05 → —
KPX10 —
67927C — Cushion, Separator Door Stiffener, NO.1
67927-F4020 Cushion, Separator Door Stiffener, NO.1
2020-05 → —
KPX10 —
67928C — Cushion, Separator Door Stiffener, NO.2
67928-F4020 Cushion, Separator Door Stiffener, NO.2
2020-05 → —
KPX10 —
68103 — Glass Sub-assy, Rear Door, RH
68103-F4060 Glass Sub-assy, Rear Door, RH
2020-05 → —
KPX10 —
68104 — Glass Sub-assy, Rear Door, LH
68104-F4060 Glass Sub-assy, Rear Door, LH
2020-05 → —
KPX10 —
68123B — Glass, Rear Door Quarter Window, RH
68123-F4060 Glass, Rear Door Quarter Window, RH
2020-05 → —
KPX10 —
68124B — Glass, Rear Door Quarter Window, LH
68124-F4060 Glass, Rear Door Quarter Window, LH
2020-05 → —
KPX10 —
68142C — Run, Rear Door Glass, RH
68142-F4031 Run, Rear Door Glass, RH
2020-05 → —
KPX10 —
68152C — Run, Rear Door Glass, LH
68152-F4031 Run, Rear Door Glass, LH
2020-05 → —
KPX10 —
68188 — Weatherstrip, Rear Door Quarter Window, RH
68188-F4030 Weatherstrip, Rear Door Quarter Window, RH
2020-05 → —
KPX10 —
68189 — Weatherstrip, Rear Door Quarter Window, LH
68189-F4030 Weatherstrip, Rear Door Quarter Window, LH
2020-05 → —
KPX10 —
68630D — Check Assy, Rear Door, RH
68630-F4030 Check Assy, Rear Door, RH
2020-05 → —
KPX10 —
68640A — Check Assy, Rear Door, LH
68630-F4030 Check Assy, Rear Door, LH
2020-05 → —
KPX10 —
75977H — Stripe, Rear Door Outside, Lower RH
75977-F4030 note Stripe, Rear Door Outside, Lower RH
2020-05 → —
KPX10 —
75978H — Stripe, Rear Door Outside, Lower LH
75978-F4030 note Stripe, Rear Door Outside, Lower LH
2020-05 → —
KPX10 —
75987F — Stripe, Rear Door, Outside, RH
75987-F4030 note Stripe, Rear Door, Outside, RH
2020-05 → —
KPX10 —
75988E — Stripe, Rear Door, Outside LH
75988-F4030 note Stripe, Rear Door, Outside LH
2020-05 → —
KPX10 —
86262D — Cover, Rear Door Speaker
86262-50010 Cover, Rear Door Speaker
2020-05 → —
KPX10 D —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
