Toyota Izoa

2020-05 → 2022-07 · chassis KPX10 · catalogue 539310 · General

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes
Exploded illustration 67A955A 69050A — LOCK ASSY, REAR DOOR W/MOTOR, RH (1 parts) 69060A — LOCK ASSY, REAR DOOR W/MOTOR, LH (1 parts) 67836D — COVER, REAR DOOR LOCK CHILD PROTECTION (1 parts) 69205A — HANDLE SUB-ASSY, REAR DOOR INSIDE, RH (2 parts) 69206C — HANDLE SUB-ASSY, REAR DOOR INSIDE, LH (2 parts) 69227J — COVER, REAR DOOR OUTSIDE HANDLE, RH (1 parts) 69227L — COVER, REAR DOOR OUTSIDE HANDLE, LH (1 parts) 69230 — HANDLE ASSY, REAR DOOR OUTSIDE, RH (8 parts) 69240 — HANDLE ASSY, REAR DOOR OUTSIDE, LH (8 parts) 69283A — PLUG, REAR DOOR INSIDE HANDLE BEZEL, RH (2 parts) 69284D — PLUG, REAR DOOR INSIDE HANDLE BEZEL, LH (2 parts) 69318D — SEAL, DOOR LOCK WIRING HARNESS (1 parts) 69410B — PLATE ASSY, REAR DOOR LOCK STRIKER (1 parts) 69730E — CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, NO.1 (1 parts) 69730M — CABLE, REAR DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER) (2 parts) 69740E — CABLE, REAR DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER) (2 parts) 69730F — CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, NO.2 (1 parts) 69770E — CABLE, REAR DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB) (2 parts) 69780E — CABLE, REAR DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB) (2 parts) 90119C0232 — not listed in this catalogue 9014860083 — not listed in this catalogue 90148C0006 — not listed in this catalogue 90469C0004 — not listed in this catalogue 90189C0014 — not listed in this catalogue 69229A — CAP, DOOR OUTSIDE HANDLE, NO.3 (1 parts) 90167C0009 — not listed in this catalogue 90167C0013 — not listed in this catalogue

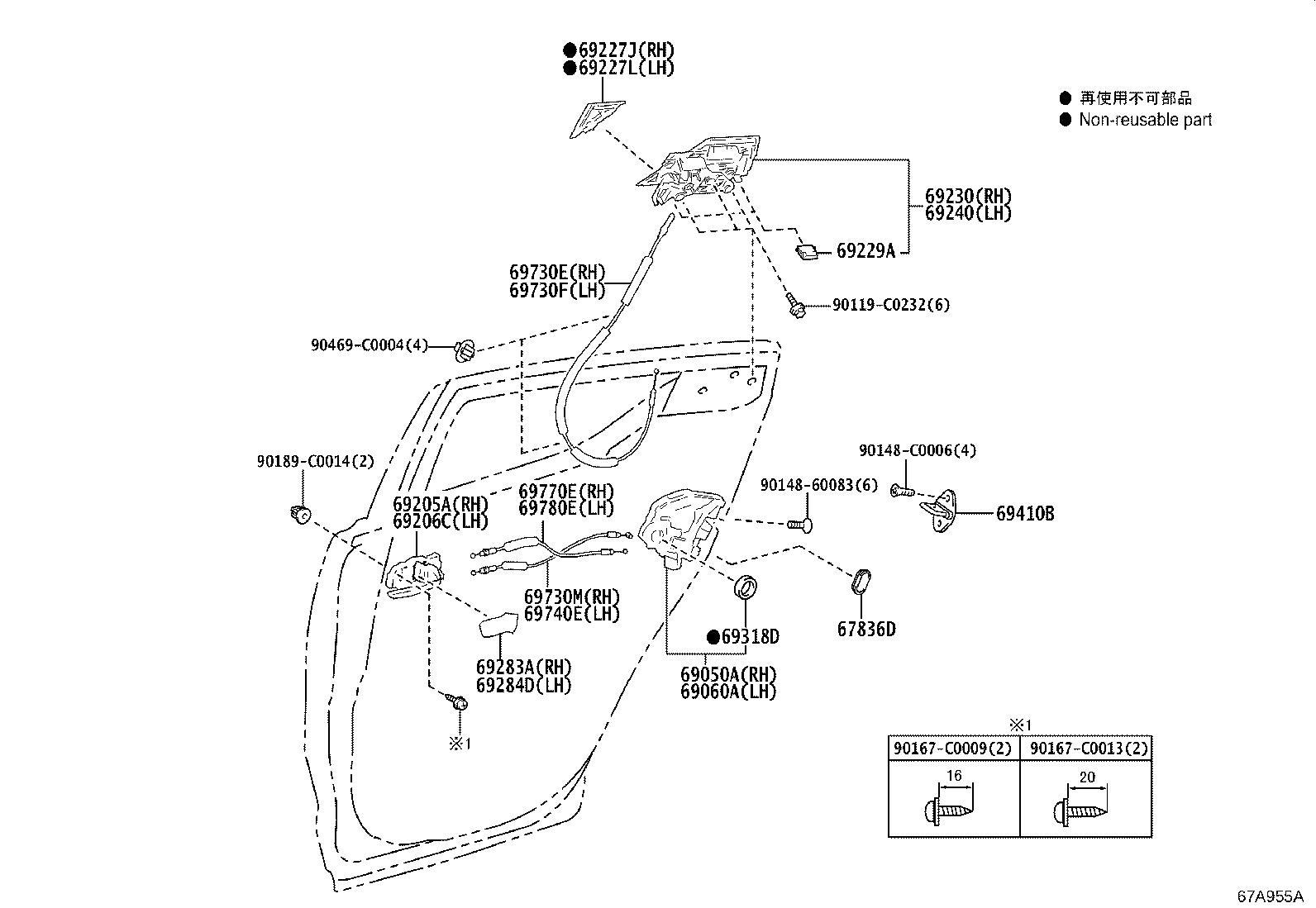

67A955A · 20 callouts, 7 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
42 parts on this figure
Part number Description Fitment Price
67836D — Cover, Rear Door Lock Child Protection
67836-02040 Cover, Rear Door Lock Child Protection
2020-05 → —
KPX10 —
69050A — Lock Assy, Rear Door W/Motor, RH
69050-F4100 Lock Assy, Rear Door W/Motor, RH
2020-05 → —
KPX10 —
69060A — Lock Assy, Rear Door W/Motor, LH
69060-F4100 Lock Assy, Rear Door W/Motor, LH
2020-05 → —
KPX10 —
69205A — Handle Sub-assy, Rear Door Inside, RH
69205-F4030-C0 note Handle Sub-assy, Rear Door Inside, RH
2020-05 → —
KPX10 E —
69205-F4030-C0 note Handle Sub-assy, Rear Door Inside, RH
2020-05 → —
KPX10 D,N —
69206C — Handle Sub-assy, Rear Door Inside, LH
69206-F4030-C0 note Handle Sub-assy, Rear Door Inside, LH
2020-05 → —
KPX10 E —
69206-F4030-C0 note Handle Sub-assy, Rear Door Inside, LH
2020-05 → —
KPX10 D,N —
69227J — Cover, Rear Door Outside Handle, RH
69227-F4030 note Cover, Rear Door Outside Handle, RH
2020-05 → —
KPX10 —
69227L — Cover, Rear Door Outside Handle, LH
69228-F4030 note Cover, Rear Door Outside Handle, LH
2020-05 → —
KPX10 —
69229A — Cap, Door Outside Handle, NO.3
69229-F4010 Cap, Door Outside Handle, NO.3
2020-05 → —
KPX10 —
69230 — Handle Assy, Rear Door Outside, RH
69230-F4050-A0 note Handle Assy, Rear Door Outside, RH
2020-05 → 2021-05 ended
KPX10 —
69230-F4050-A1 note Handle Assy, Rear Door Outside, RH
2021-05 → —
KPX10 —
69230-F4050-B0 note Handle Assy, Rear Door Outside, RH
2020-05 → —
KPX10 —
69230-F4050-C0 note Handle Assy, Rear Door Outside, RH
2020-05 → —
KPX10 —
69230-F4050-D0 note Handle Assy, Rear Door Outside, RH
2020-05 → —
KPX10 —
69230-F4050-E0 note Handle Assy, Rear Door Outside, RH
2020-05 → 2021-05 ended
KPX10 —
69230-F4050-J0 note Handle Assy, Rear Door Outside, RH
2020-05 → 2021-05 ended
KPX10 —
69230-F4050-J1 note Handle Assy, Rear Door Outside, RH
2021-05 → —
KPX10 —
69240 — Handle Assy, Rear Door Outside, LH
69240-F4050-A0 note Handle Assy, Rear Door Outside, LH
2020-05 → 2021-05 ended
KPX10 —
69240-F4050-A1 note Handle Assy, Rear Door Outside, LH
2021-05 → —
KPX10 —
69240-F4050-B0 note Handle Assy, Rear Door Outside, LH
2020-05 → —
KPX10 —
69240-F4050-C0 note Handle Assy, Rear Door Outside, LH
2020-05 → —
KPX10 —
69240-F4050-D0 note Handle Assy, Rear Door Outside, LH
2020-05 → —
KPX10 —
69240-F4050-E0 note Handle Assy, Rear Door Outside, LH
2020-05 → 2021-05 ended
KPX10 —
69240-F4050-J0 note Handle Assy, Rear Door Outside, LH
2020-05 → 2021-05 ended
KPX10 —
69240-F4050-J1 note Handle Assy, Rear Door Outside, LH
2021-05 → —
KPX10 —
69283A — Plug, Rear Door Inside Handle Bezel, RH
69283-0N030-C1 note Plug, Rear Door Inside Handle Bezel, RH
2020-05 → —
KPX10 E —
69283-0N030-C1 note Plug, Rear Door Inside Handle Bezel, RH
2020-05 → —
KPX10 D,N —
69284D — Plug, Rear Door Inside Handle Bezel, LH
69284-0N030-C1 note Plug, Rear Door Inside Handle Bezel, LH
2020-05 → —
KPX10 E —
69284-0N030-C1 note Plug, Rear Door Inside Handle Bezel, LH
2020-05 → —
KPX10 D,N —
69318D — Seal, Door Lock Wiring Harness
69318-51010 Seal, Door Lock Wiring Harness
2020-05 → —
KPX10 —
69410B — Plate Assy, Rear Door Lock Striker
69410-0D020 Plate Assy, Rear Door Lock Striker
2020-05 → —
KPX10 —
69730E — Cable Assy, Rear Door Lock Remote Control, NO.1
69730-F4070 Cable Assy, Rear Door Lock Remote Control, NO.1
2020-05 → —
KPX10 —
69730F — Cable Assy, Rear Door Lock Remote Control, NO.2
69730-F4070 Cable Assy, Rear Door Lock Remote Control, NO.2
2020-05 → —
KPX10 —
69730M — Cable, Rear Door Lock Remote Control, RH(FOR OPEN LEVER)
69730-F4060 Cable, Rear Door Lock Remote Control, RH(FOR OPEN LEVER)
2020-05 → 2020-11 ended
KPX10 —
69730-F4061 Cable, Rear Door Lock Remote Control, RH(FOR OPEN LEVER)
2020-12 → —
KPX10 —
69740E — Cable, Rear Door Lock Remote Control, LH(FOR OPEN LEVER)
69730-F4060 Cable, Rear Door Lock Remote Control, LH(FOR OPEN LEVER)
2020-05 → 2020-11 ended
KPX10 —
69730-F4061 Cable, Rear Door Lock Remote Control, LH(FOR OPEN LEVER)
2020-12 → —
KPX10 —
69770E — Cable, Rear Door Inside Locking, RH(FOR LOCK / UNLOCK KNOB)
69770-F4040 Cable, Rear Door Inside Locking, RH(FOR LOCK / UNLOCK KNOB)
2020-05 → 2020-11 ended
KPX10 —
69770-F4041 Cable, Rear Door Inside Locking, RH(FOR LOCK / UNLOCK KNOB)
2020-12 → —
KPX10 —
69780E — Cable, Rear Door Inside Locking, LH(FOR LOCK / UNLOCK KNOB)
69770-F4040 Cable, Rear Door Inside Locking, LH(FOR LOCK / UNLOCK KNOB)
2020-05 → 2020-11 ended
KPX10 —
69770-F4041 Cable, Rear Door Inside Locking, LH(FOR LOCK / UNLOCK KNOB)
2020-12 → —
KPX10 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
