Toyota Izoa

2020-05 → 2022-07 · chassis KPX10 · catalogue 539310 · General

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

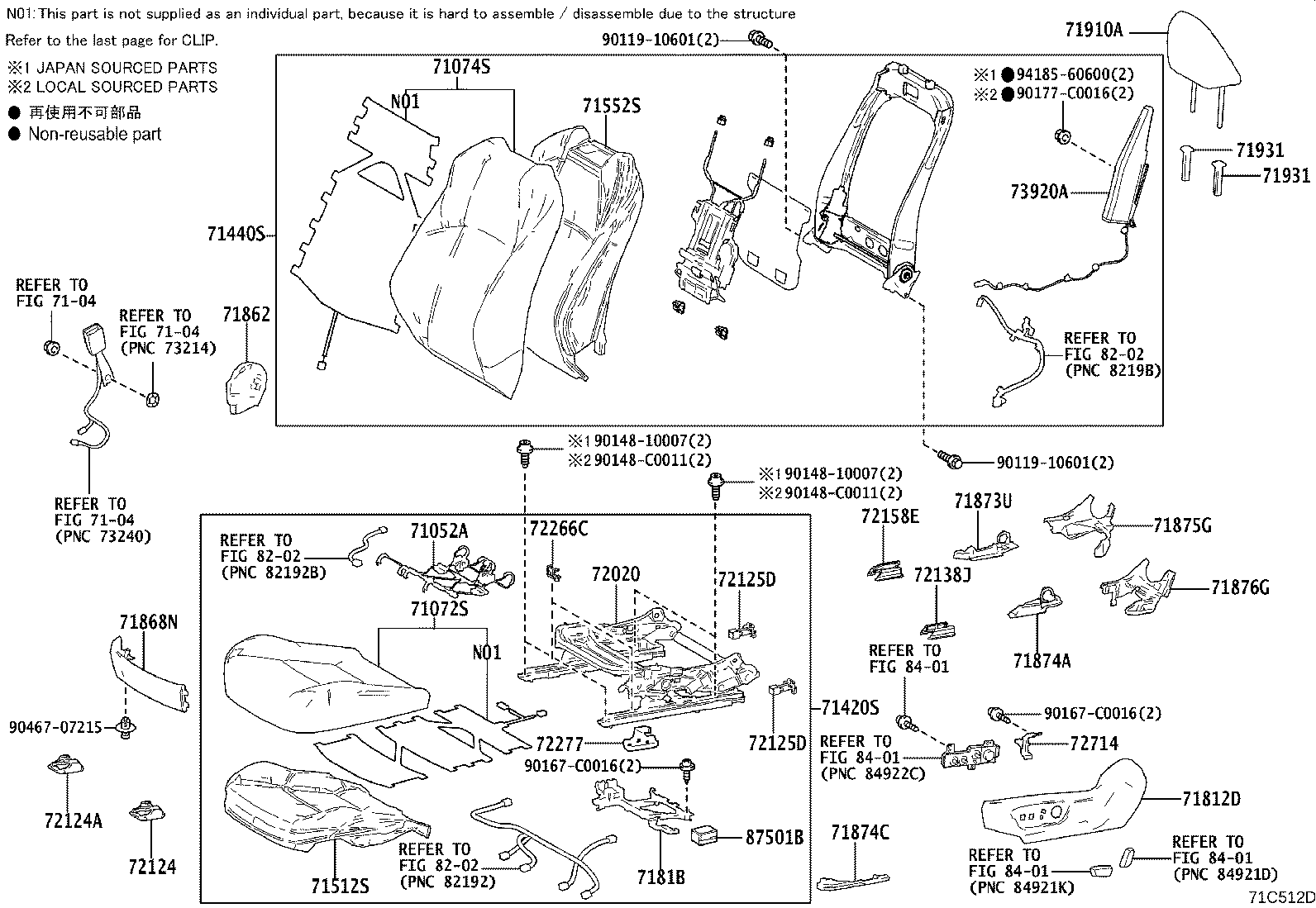

Exploded illustration 71C512D 71910A — HEADREST ASSY, FRONT SEAT (3 parts) 71931 — SUPPORT, FRONT SEAT HEADREST (4 parts) 71931 — SUPPORT, FRONT SEAT HEADREST (4 parts) 73920A — AIRBAG ASSY, FRONT SEAT, LH (1 parts) 71812D — SHIELD, FRONT SEAT CUSHION, LH (2 parts) 71862 — SHIELD, FRONT SEAT CUSHION, INNER LH (2 parts) 71868N — SHIELD, FRONT SEAT CUSHION, FRONT LH (1 parts) 71420S — CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) (4 parts) 71552S — PAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE) (1 parts) 71074S — COVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE) (4 parts) 71440S — BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) (4 parts) 71874A — SHIELD, FRONT SEAT CUSHION, LOWER LH (2 parts) 71873U — SHIELD, FRONT SEAT CUSHION, LOWER RH (2 parts) 72158E — COVER, SEAT TRACK BRACKET, INNER REAR LH (1 parts) 72124A — COVER, SEAT TRACK BRACKET, INNER FRONT LH (1 parts) 72124 — COVER, SEAT TRACK BRACKET, OUTER FRONT LH (1 parts) 72138J — COVER, FRONT SEAT TRACK, LH REAR OUTER (1 parts) 71874C — SHIELD, FRONT SEAT CUSHION, LOWER (1 parts) 72714 — BRACKET, SEAT ADJUSTER SHIELD CLAMP, LH (1 parts) 71876G — COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) (2 parts) 71875G — COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) (2 parts) 71052A — SPRING SUB-ASSY, FRONT SEAT CUSHION, LH (1 parts) 72020 — ADJUSTER ASSY, FRONT SEAT, LH (2 parts) 7181B — HOLDER, FRONT SEAT CUSHION WIRE HARNESS, LH (2 parts) 71512S — PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) (2 parts) 71072S — COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) (4 parts) 90167C0016 — not listed in this catalogue 9011910601 — not listed in this catalogue 9011910601 — not listed in this catalogue 8401 — not listed in this catalogue 8202 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 7104 — not listed in this catalogue 8202 — not listed in this catalogue 7104 — not listed in this catalogue 7104 — not listed in this catalogue 8202 — not listed in this catalogue 90167C0016 — not listed in this catalogue 90177C0016 — not listed in this catalogue 9418560600 — not listed in this catalogue 90148C0011 — not listed in this catalogue 9014810007 — not listed in this catalogue 90148C0011 — not listed in this catalogue 9014810007 — not listed in this catalogue 8401 — not listed in this catalogue 9046707215 — not listed in this catalogue 72125D — COVER, SEAT TRACK, UPPER REAR NO.2 (2 parts) 72125D — COVER, SEAT TRACK, UPPER REAR NO.2 (2 parts) 72266C — COVER, SEAT TRACK UPPER RAIL, LH (2 parts) 72277 — PROTECTOR, SEAT SLIDE POSITION SENSOR, (1 parts) 87501B — CONTROL SUB-ASSY, SEAT HEATER, LH (1 parts)
71C512D · 31 callouts, 21 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
57 parts on this figure
Part number Description Fitment Price
71052A — Spring Sub-assy, Front Seat Cushion, LH
71051-06040 Spring Sub-assy, Front Seat Cushion, LH
2020-05 → —
KPX10 —
71072S — Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71072-F4131-B3 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2020-05 → —
KPX10 D —
71072-F4141-C4 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2020-05 → —
KPX10 N —
71072-F4460-B0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2020-05 → —
KPX10 E —
71072-F4460-C0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2020-05 → —
KPX10 E —
71074S — Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71074-F4320-B2 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2020-05 → —
KPX10 E —
71074-F4320-C1 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2020-05 → —
KPX10 E —
71074-F4520-B1 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2020-05 → —
KPX10 D —
71074-F4530-C1 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2020-05 → —
KPX10 N —
71420S — Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
71420-F4341-C1 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2020-05 → —
KPX10 D —
71420-F4351-C1 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2020-05 → —
KPX10 N —
71420-F4890-B0 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2020-05 → —
KPX10 E —
71420-F4890-C0 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2020-05 → —
KPX10 E —
71440S — Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
71440-F4700-C1 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
2020-05 → —
KPX10 D —
71440-F4710-C1 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
2020-05 → —
KPX10 N —
71440-F4800-B0 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
2020-05 → —
KPX10 E —
71440-F4800-C0 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
2020-05 → —
KPX10 E —
71512S — Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71512-F4040 Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2020-05 → —
KPX10 D,N —
71512-F4080 Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2020-05 → —
KPX10 E —
71552S — Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71552-F4080 Pad, Front Seatback, LH(FOR SEPARATE TYPE)
2020-05 → —
KPX10 —
71812D — Shield, Front Seat Cushion, LH
71812-07100-C0 note Shield, Front Seat Cushion, LH
2020-05 → —
KPX10 E —
71812-F4110-C0 note Shield, Front Seat Cushion, LH
2020-05 → —
KPX10 D,N —
7181B — Holder, Front Seat Cushion Wire Harness, LH
7181B-07020 Holder, Front Seat Cushion Wire Harness, LH
2020-05 → —
KPX10 E —
7181B-F4030 Holder, Front Seat Cushion Wire Harness, LH
2020-05 → —
KPX10 D,N —
71862 — Shield, Front Seat Cushion, Inner LH
71862-F4050-C0 note Shield, Front Seat Cushion, Inner LH
2020-05 → —
KPX10 E —
71862-F4050-C0 note Shield, Front Seat Cushion, Inner LH
2020-05 → —
KPX10 D,N —
71868N — Shield, Front Seat Cushion, Front LH
71868-07030-C0 note Shield, Front Seat Cushion, Front LH
2020-05 → —
KPX10 E —
71873U — Shield, Front Seat Cushion, Lower RH
71874-F4040-C0 note Shield, Front Seat Cushion, Lower RH
2020-05 → —
KPX10 D,N —
71874-F4040-C0 note Shield, Front Seat Cushion, Lower RH
2020-05 → —
KPX10 E —
71874A — Shield, Front Seat Cushion, Lower LH
71874-F4030-C0 note Shield, Front Seat Cushion, Lower LH
2020-05 → —
KPX10 E —
71874-F4030-C0 note Shield, Front Seat Cushion, Lower LH
2020-05 → —
KPX10 D,N —
71874C — Shield, Front Seat Cushion, Lower
71874-07080-C0 note Shield, Front Seat Cushion, Lower
2020-05 → —
KPX10 E —
71875G — Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
71876-F4080-C0 note Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
2020-05 → —
KPX10 E —
71876-F4080-C0 note Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
2020-05 → —
KPX10 D,N —
71876G — Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
71876-F4070-C0 note Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
2020-05 → —
KPX10 E —
71876-F4070-C0 note Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
2020-05 → —
KPX10 D,N —
71910A — Headrest Assy, Front Seat
71910-F4071-C3 note Headrest Assy, Front Seat
2020-05 → —
KPX10 D —
71910-F4081-B1 note Headrest Assy, Front Seat
2020-05 → —
KPX10 E —
71910-F4081-C3 note Headrest Assy, Front Seat
2020-05 → —
KPX10 E,N —
71931 — Support, Front Seat Headrest
71930-06070-B0 note Support, Front Seat Headrest
2020-05 → —
KPX10 E —
71930-06070-C0 note Support, Front Seat Headrest
2020-05 → —
KPX10 —
71931-06060-B0 note Support, Front Seat Headrest
2020-05 → —
KPX10 E —
71931-06060-C0 note Support, Front Seat Headrest
2020-05 → —
KPX10 —
72020 — Adjuster Assy, Front Seat, LH
72020-F4081 Adjuster Assy, Front Seat, LH
2020-05 → —
KPX10 D,N —
72020-F4130 Adjuster Assy, Front Seat, LH
2020-05 → —
KPX10 E —
72124 — Cover, Seat Track Bracket, Outer Front LH
72123-F4030 Cover, Seat Track Bracket, Outer Front LH
2020-05 → —
KPX10 —
72124A — Cover, Seat Track Bracket, Inner Front LH
72123-F4030 Cover, Seat Track Bracket, Inner Front LH
2020-05 → —
KPX10 —
72125D — Cover, Seat Track, Upper Rear NO.2
72125-F4010 Cover, Seat Track, Upper Rear NO.2
2020-05 → —
KPX10 D,N —
72125-F4020 Cover, Seat Track, Upper Rear NO.2
2020-05 → —
KPX10 E —
72138J — Cover, Front Seat Track, LH Rear Outer
72137-F4020 Cover, Front Seat Track, LH Rear Outer
2020-05 → —
KPX10 —
72158E — Cover, Seat Track Bracket, Inner Rear LH
72158-F4020 Cover, Seat Track Bracket, Inner Rear LH
2020-05 → —
KPX10 —
72266C — Cover, Seat Track Upper Rail, LH
72265-07020 Cover, Seat Track Upper Rail, LH
2020-05 → —
KPX10 E —
72265-F4010 Cover, Seat Track Upper Rail, LH
2020-05 → —
KPX10 D,N —
72277 — Protector, Seat Slide Position Sensor,
72277-F4050 Protector, Seat Slide Position Sensor,
2020-05 → —
KPX10 —
72714 — Bracket, Seat Adjuster Shield Clamp, LH
72714-07010 Bracket, Seat Adjuster Shield Clamp, LH
2020-05 → —
KPX10 E —
73920A — Airbag Assy, Front Seat, LH
73920-F4051 Airbag Assy, Front Seat, LH
2020-05 → —
KPX10 —
87501B — Control Sub-assy, Seat Heater, LH
87501-10020 Control Sub-assy, Seat Heater, LH
2020-05 → —
KPX10 E —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
