Exploded illustration 71C514B 9011910601 — not listed in this catalogue 90177C0016 — not listed in this catalogue 9011910601 — not listed in this catalogue 90177C0016 — not listed in this catalogue 71910A — HEADREST ASSY, FRONT SEAT (3 parts) 71931 — SUPPORT, FRONT SEAT HEADREST (4 parts) 71931 — SUPPORT, FRONT SEAT HEADREST (4 parts) 71811D — SHIELD, FRONT SEAT CUSHION, RH (2 parts) 72525A — HANDLE, RECLINING ADJUSTER RELEASE, RH (2 parts) 72551B — COVER, RECLINING HINGE, RH (2 parts) 71861 — SHIELD, FRONT SEAT CUSHION, INNER RH (2 parts) 71875F — COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT) (2 parts) 71876F — COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT) (2 parts) 7104 — not listed in this catalogue 7104 — not listed in this catalogue 7104 — not listed in this catalogue 71410S — CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) (4 parts) 71501 — PAD SUB-ASSY, FRONT SEAT CUSHION, RH (1 parts) 71051A — SPRING SUB-ASSY, FRONT SEAT CUSHION, RH (1 parts) 739F0 — AIRBAG ASSY, FRONT SEAT CUSHION, RH (1 parts) 72010 — ADJUSTER ASSY, FRONT SEAT, RH (1 parts) 72125A — COVER, SEAT TRACK, UPPER REAR (1 parts) 72125A — COVER, SEAT TRACK, UPPER REAR (1 parts) 72211 — HANDLE, SEAT TRACK ADJUSTING (1 parts) 82666M — HOLDER, CONNECTOR (1 parts) 72265 — COVER, SEAT TRACK UPPER RAIL, RH (1 parts) 7181A — HOLDER, FRONT SEAT CUSHION WIRE HARNESS, RH (1 parts) 72265 — COVER, SEAT TRACK UPPER RAIL, RH (1 parts) 71430S — BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) (4 parts) 73910A — AIRBAG ASSY, FRONT SEAT, RH (1 parts) 71551S — PAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE) (1 parts) 71073S — COVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE) (4 parts) 72157F — COVER, SEAT TRACK BRACKET, INNER REAR RH (1 parts) 72123A — COVER, SEAT TRACK BRACKET, OUTER FRONT RH (1 parts) 72123E — COVER, SEAT TRACK BRACKET, INNER FRONT RH (1 parts) 72137J — COVER, FRONT SEAT TRACK, RH REAR OUTER (1 parts) 90148C0011 — not listed in this catalogue 9014810007 — not listed in this catalogue 90148C0011 — not listed in this catalogue 9014810007 — not listed in this catalogue 9418560600 — not listed in this catalogue 90177C0016 — not listed in this catalogue 9418560600 — not listed in this catalogue 9418560600 — not listed in this catalogue 8202 — not listed in this catalogue 71071S — COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) (4 parts) 87501A — CONTROL SUB-ASSY, SEAT HEATER, RH (1 parts)

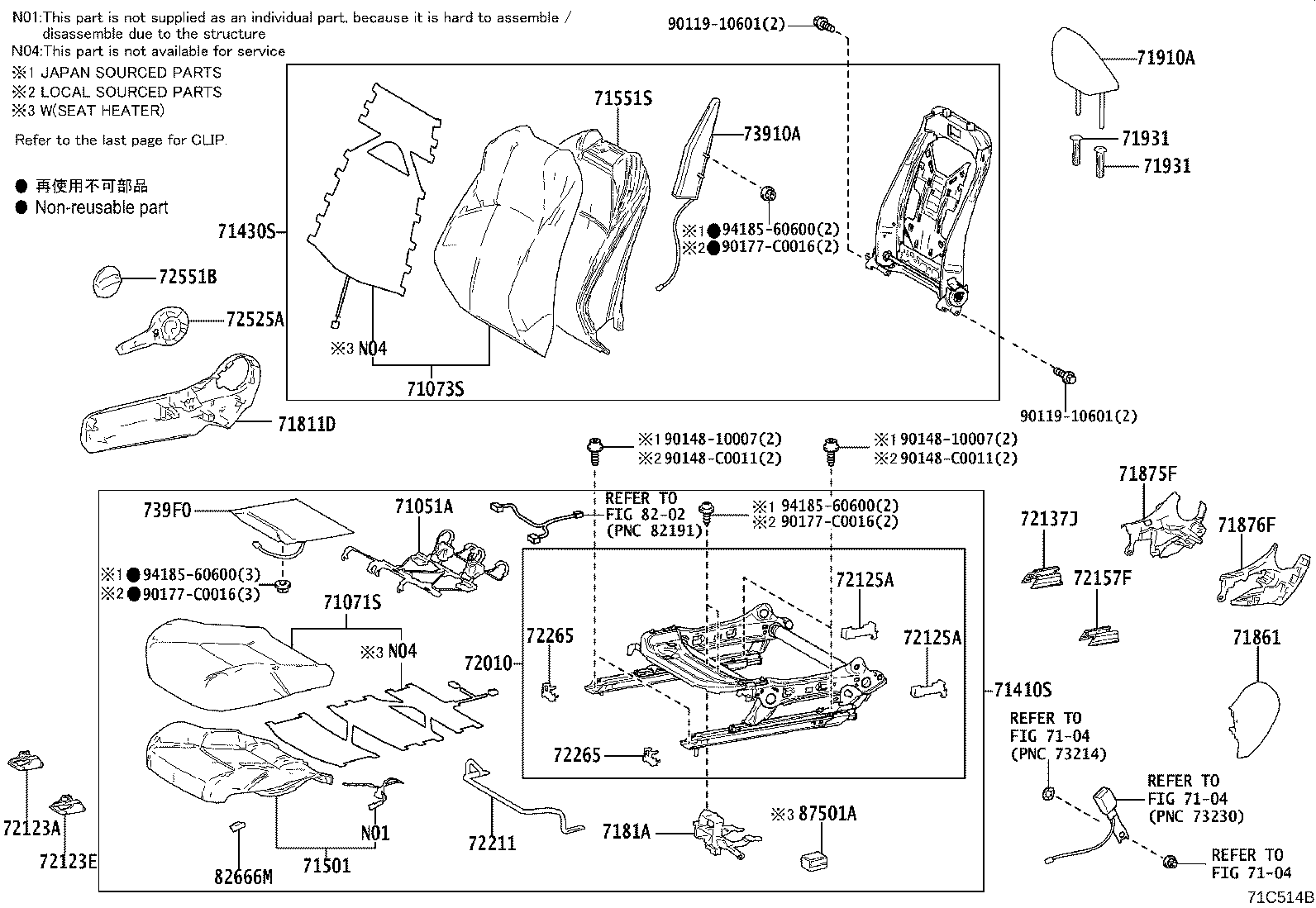

71C514B · 31 callouts, 16 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
51 parts on this figure
Part number Description Fitment Price
71051A — Spring Sub-assy, Front Seat Cushion, RH
71051-06040 Spring Sub-assy, Front Seat Cushion, RH
2020-05 → —
KPX10 —
71071S — Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71071-F4270-B2 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2020-05 → —
KPX10 E —
71071-F4270-C1 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2020-05 → —
KPX10 E —
71071-F4460-B1 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2020-05 → —
KPX10 D —
71071-F4470-C1 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
2020-05 → —
KPX10 N —
71073S — Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71073-F4320-B2 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2020-05 → —
KPX10 E —
71073-F4320-C1 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2020-05 → —
KPX10 E —
71073-F4540-B0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2020-05 → —
KPX10 D —
71073-F4550-C0 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
2020-05 → —
KPX10 N —
71410S — Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
71410-F4380-B2 note Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
2020-05 → —
KPX10 E —
71410-F4380-C1 note Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
2020-05 → —
KPX10 E —
71410-F4720-C1 note Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
2020-05 → —
KPX10 D —
71410-F4730-C1 note Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
2020-05 → —
KPX10 N —
71430S — Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
71430-F4380-B2 note Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
2020-05 → —
KPX10 E —
71430-F4380-C1 note Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
2020-05 → —
KPX10 E —
71430-F4700-C1 note Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
2020-05 → —
KPX10 D —
71430-F4710-C1 note Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
2020-05 → —
KPX10 N —
71501 — Pad Sub-assy, Front Seat Cushion, RH
71501-F4050 Pad Sub-assy, Front Seat Cushion, RH
2020-05 → —
KPX10 —
71551S — Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71551-F4080 Pad, Front Seatback, RH(FOR SEPARATE TYPE)
2020-05 → —
KPX10 —
71811D — Shield, Front Seat Cushion, RH
71811-07090-C0 note Shield, Front Seat Cushion, RH
2020-05 → —
KPX10 E —
71811-07090-C0 note Shield, Front Seat Cushion, RH
2020-05 → —
KPX10 D,N —
7181A — Holder, Front Seat Cushion Wire Harness, RH
7181A-F4030 Holder, Front Seat Cushion Wire Harness, RH
2020-05 → —
KPX10 —
71861 — Shield, Front Seat Cushion, Inner RH
71861-07050-C0 note Shield, Front Seat Cushion, Inner RH
2020-05 → —
KPX10 E —
71861-07050-C0 note Shield, Front Seat Cushion, Inner RH
2020-05 → —
KPX10 D,N —
71875F — Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
71875-07030-C0 note Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
2020-05 → —
KPX10 D,N —
71875-07030-C0 note Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
2020-05 → —
KPX10 E —
71876F — Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
71875-07040-C0 note Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
2020-05 → —
KPX10 E —
71875-07040-C0 note Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
2020-05 → —
KPX10 D,N —
71910A — Headrest Assy, Front Seat
71910-F4071-C3 note Headrest Assy, Front Seat
2020-05 → —
KPX10 D —
71910-F4081-B1 note Headrest Assy, Front Seat
2020-05 → —
KPX10 E —
71910-F4081-C3 note Headrest Assy, Front Seat
2020-05 → —
KPX10 E,N —
71931 — Support, Front Seat Headrest
71930-06070-B0 note Support, Front Seat Headrest
2020-05 → —
KPX10 E —
71930-06070-C0 note Support, Front Seat Headrest
2020-05 → —
KPX10 —
71931-06060-B0 note Support, Front Seat Headrest
2020-05 → —
KPX10 E —
71931-06060-C0 note Support, Front Seat Headrest
2020-05 → —
KPX10 —
72010 — Adjuster Assy, Front Seat, RH
72010-07040 Adjuster Assy, Front Seat, RH
2020-05 → —
KPX10 —
72123A — Cover, Seat Track Bracket, Outer Front RH
72123-F4030 Cover, Seat Track Bracket, Outer Front RH
2020-05 → —
KPX10 —
72123E — Cover, Seat Track Bracket, Inner Front RH
72123-F4030 Cover, Seat Track Bracket, Inner Front RH
2020-05 → —
KPX10 —
72125A — Cover, Seat Track, Upper Rear
72125-F4010 Cover, Seat Track, Upper Rear
2020-05 → —
KPX10 —
72137J — Cover, Front Seat Track, RH Rear Outer
72137-F4020 Cover, Front Seat Track, RH Rear Outer
2020-05 → —
KPX10 —
72157F — Cover, Seat Track Bracket, Inner Rear RH
72157-F4020 Cover, Seat Track Bracket, Inner Rear RH
2020-05 → —
KPX10 —
72211 — Handle, Seat Track Adjusting
72211-06140 Handle, Seat Track Adjusting
2020-05 → —
KPX10 —
72265 — Cover, Seat Track Upper Rail, RH
72265-F4010 Cover, Seat Track Upper Rail, RH
2020-05 → —
KPX10 —
72525A — Handle, Reclining Adjuster Release, RH
72525-F4090-C0 note Handle, Reclining Adjuster Release, RH
2020-05 → —
KPX10 E —
72525-F4090-C0 note Handle, Reclining Adjuster Release, RH
2020-05 → —
KPX10 D,N —
72551B — Cover, Reclining Hinge, RH
72551-F4080-C0 note Cover, Reclining Hinge, RH
2020-05 → —
KPX10 E —
72551-F4080-C0 note Cover, Reclining Hinge, RH
2020-05 → —
KPX10 D,N —
73910A — Airbag Assy, Front Seat, RH
73910-F4051 Airbag Assy, Front Seat, RH
2020-05 → —
KPX10 —
739F0 — Airbag Assy, Front Seat Cushion, RH
739F0-F4020 Airbag Assy, Front Seat Cushion, RH
2020-05 → —
KPX10 —
82666M — Holder, Connector
82666-07300 Holder, Connector
2020-05 → —
KPX10 —
87501A — Control Sub-assy, Seat Heater, RH
87501-10020 Control Sub-assy, Seat Heater, RH
2020-05 → —
KPX10 E —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
