Toyota Izoa
2020-05 → 2022-07 · chassis KPX10 · catalogue 539310 · General
Supported model
Data version 2023-05

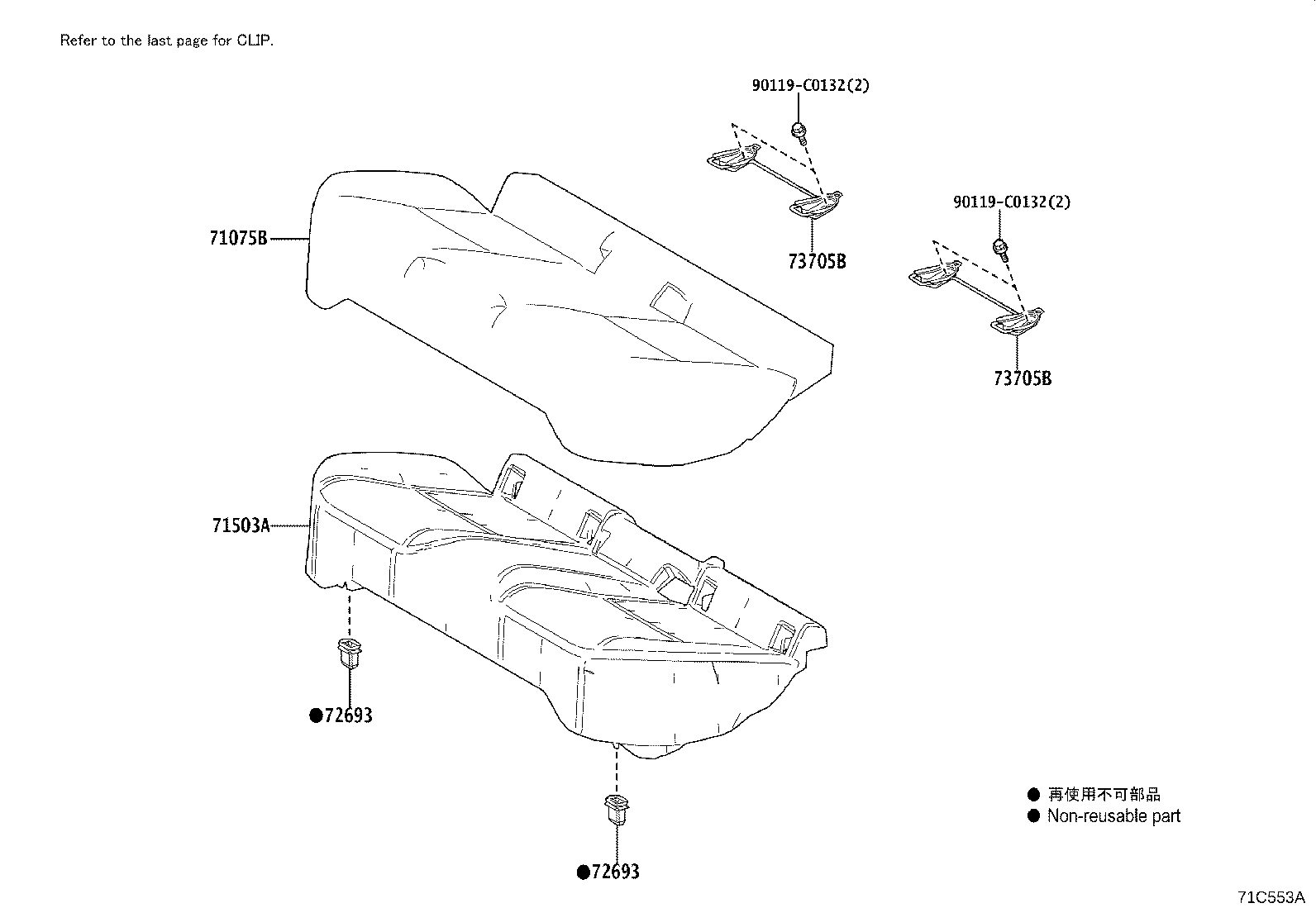

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 71075B — Cover, Rear Seat Cushion (FOR BENCH TYPE) | ||||
| 71075-F4400-C0 note |
Cover, Rear Seat Cushion (FOR BENCH TYPE)
2020-05 → —
|
KPX10 D | — | |
| 71075-F4410-B4 note |
Cover, Rear Seat Cushion (FOR BENCH TYPE)
2020-05 → —
|
KPX10 E | — | |
| 71075-F4410-C3 note |
Cover, Rear Seat Cushion (FOR BENCH TYPE)
2020-05 → —
|
KPX10 E,N | — | |
| 71503A — Pad Sub-assy, Rear Seat Cushion | ||||
| 71503-F4130 |
Pad Sub-assy, Rear Seat Cushion
2020-05 → —
|
KPX10 | — | |
| 72693 — Hook, Rear Seat Cushion Lock | ||||
| 72693-12080 |
Hook, Rear Seat Cushion Lock
2020-05 → —
|
KPX10 | — | |
| 73705B — Bracket Sub-assy, Cross Anchor | ||||
| 73705-F4040 |
Bracket Sub-assy, Cross Anchor
2020-05 → —
|
KPX10 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
