Toyota Izoa
2020-05 → 2022-07 · chassis KPX10 · catalogue 539310 · General
Supported model
Data version 2023-05
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|

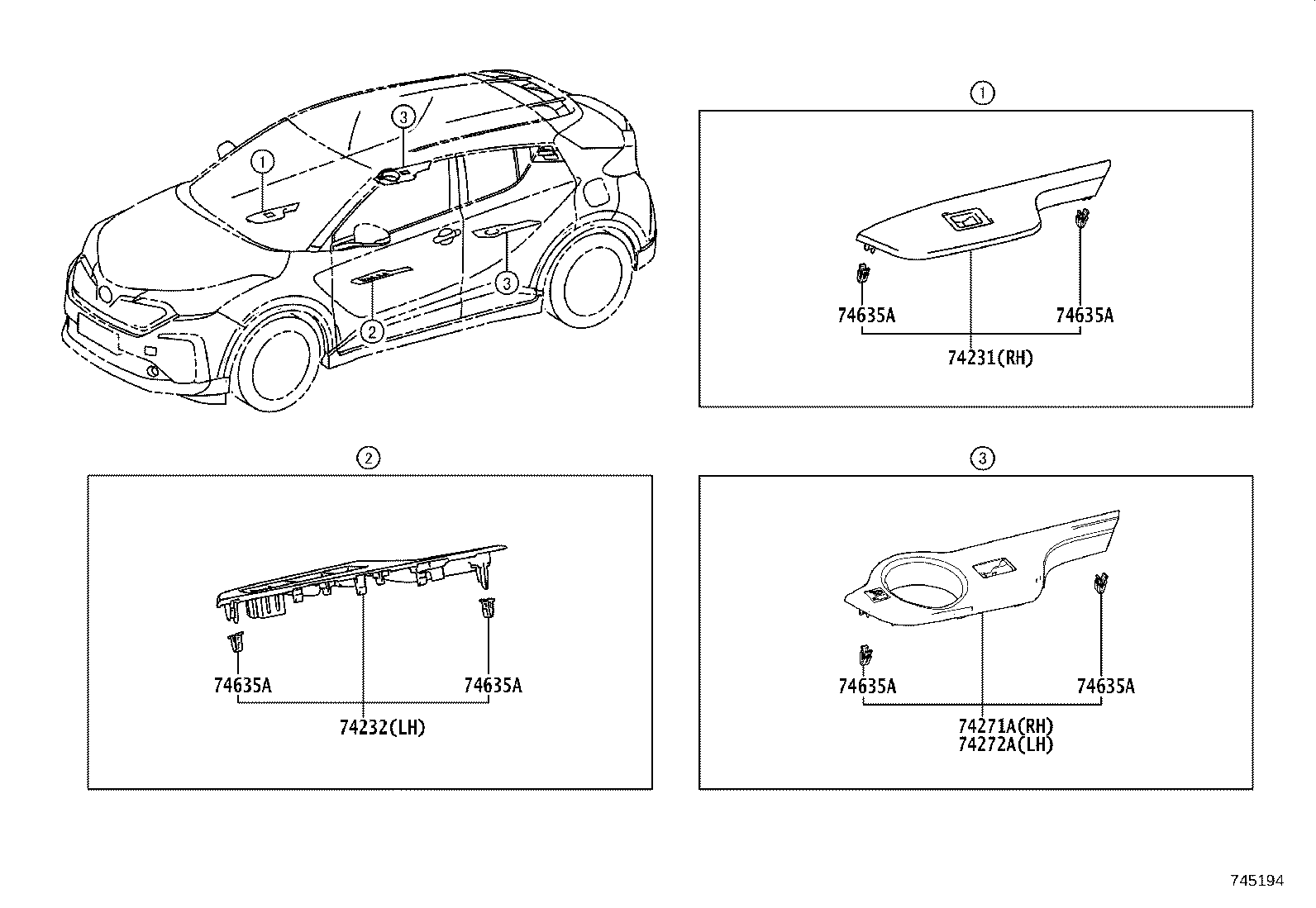

| 74231 — Panel, Front Armrest Base, Upper RH | ||||
| 74231-F4120 |
Panel, Front Armrest Base, Upper RH
2020-05 → —
|
KPX10 D | — | |
| 74231-F4130 |
Panel, Front Armrest Base, Upper RH
2020-05 → —
|
KPX10 E,N | — | |
| 74232 — Panel, Front Armrest Base, Upper LH | ||||
| 74232-F4120 |
Panel, Front Armrest Base, Upper LH
2020-05 → —
|
KPX10 D | — | |
| 74232-F4130 |
Panel, Front Armrest Base, Upper LH
2020-05 → —
|
KPX10 N | — | |
| 74232-F4140 |
Panel, Front Armrest Base, Upper LH
2020-05 → —
|
KPX10 E | — | |
| 74271A — Panel, Rear Door Armrest Base, Upper RH | ||||
| 74271-F4020 |
Panel, Rear Door Armrest Base, Upper RH
2020-05 → —
|
KPX10 | — | |
| 74272A — Panel, Rear Door Armrest Base, Upper LH | ||||
| 74272-F4020 |
Panel, Rear Door Armrest Base, Upper LH
2020-05 → —
|
KPX10 | — | |
| 74635A — Clip | ||||
| 67773-07020 |
Clip
2020-05 → —
|
KPX10 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
