Toyota Izoa
2020-05 → 2022-07 · chassis KPX10 · catalogue 539310 · General
Supported model
Data version 2023-05

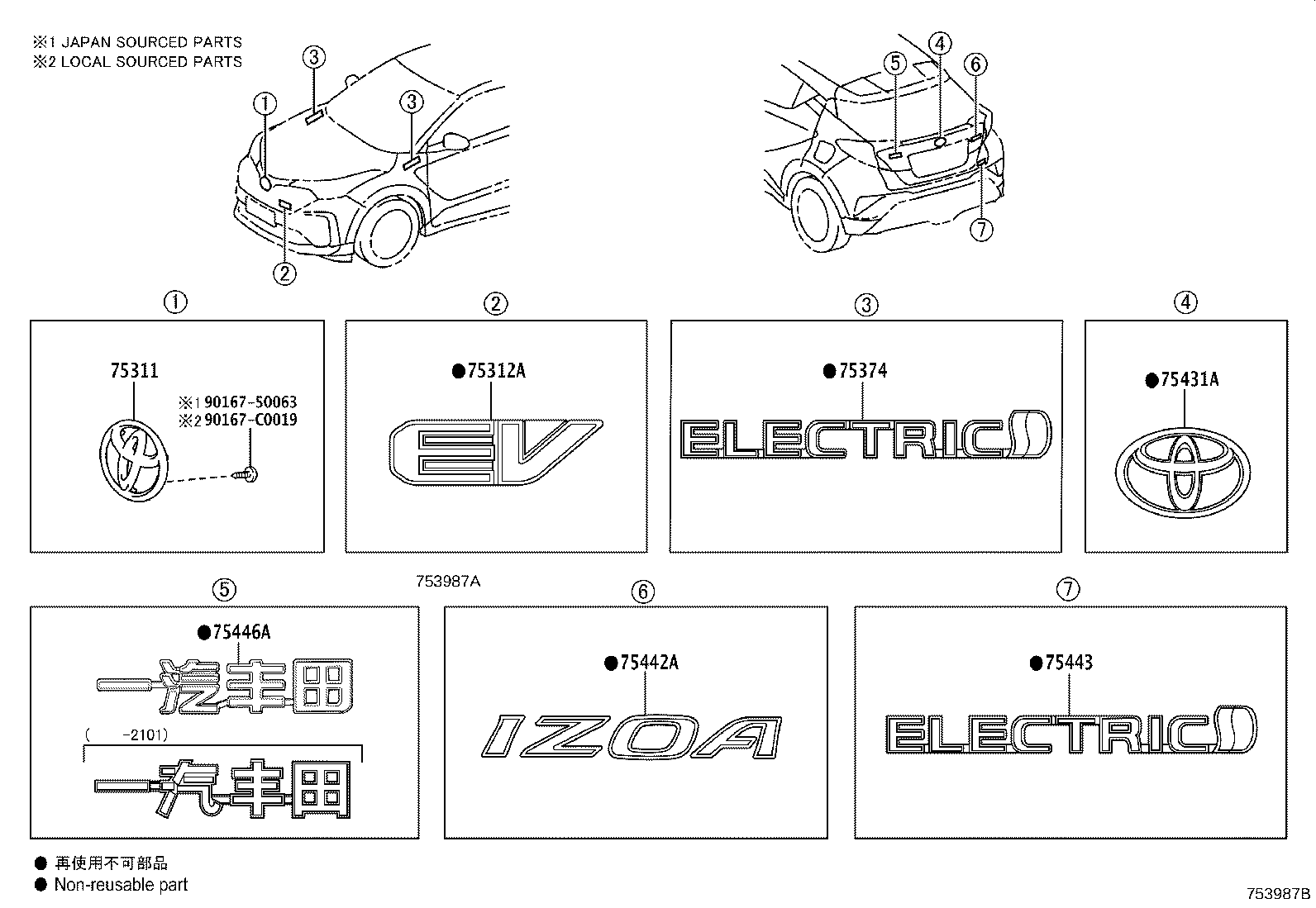

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 75311 — Emblem, Radiator Grille (OR FRONT PANEL) | ||||
| 90975-02161 |
Emblem, Radiator Grille (OR FRONT PANEL)
2020-05 → 2020-07
ended
|
KPX10 | — | |
| 90975-02161 note |
Emblem, Radiator Grille (OR FRONT PANEL)
2020-07 → —
|
KPX10 | — | |
| 90975-C2027 note |
Emblem, Radiator Grille (OR FRONT PANEL)
2020-07 → 2021-05
ended
|
KPX10 | — | |
| 75312A — Plate, Front Name, NO.2 | ||||
| 75312-F4070 note |
Plate, Front Name, NO.2
2020-05 → —
|
KPX10 | — | |
| 75374 — Emblem, Side Panel | ||||
| 75374-F4050 note |
Emblem, Side Panel
2020-05 → —
|
KPX10 | — | |
| 75374-F4060 note |
Emblem, Side Panel
2020-05 → —
|
KPX10 | — | |
| 75431A — Emblem, Back Door, NO.1 | ||||
| 75403-02080 |
Emblem, Back Door, NO.1
2020-05 → —
|
KPX10 | — | |
| 75442A — Plate, Back Door Name, NO.2 | ||||
| 75442-F4050 note |
Plate, Back Door Name, NO.2
2020-05 → —
|
KPX10 | — | |
| 75443 — Plate, Back Door Name, NO.3 | ||||
| 75443-F4040 note |
Plate, Back Door Name, NO.3
2020-05 → —
|
KPX10 | — | |
| 75446A — Plate, Back Door Name, NO.6 | ||||
| 75446-0N040 |
Plate, Back Door Name, NO.6
2020-05 → 2021-01
ended
|
KPX10 | — | |
| 75446-F4010 |
Plate, Back Door Name, NO.6
2021-01 → —
|
KPX10 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
