Toyota Izoa

2020-05 → 2022-07 · chassis KPX10 · catalogue 539310 · General

Supported model Data version 2023-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

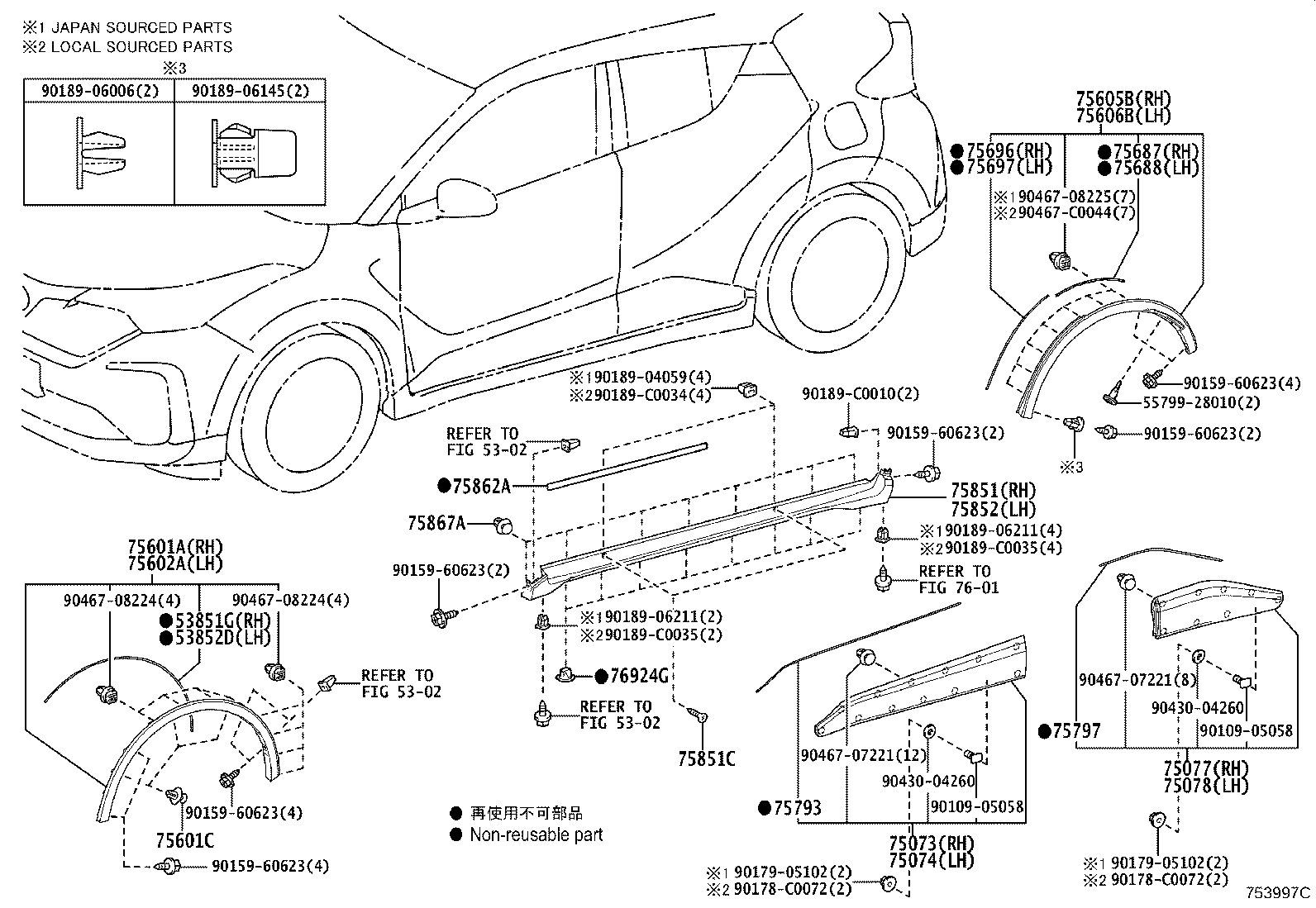

Exploded illustration 753997C 75696 — PAD, BODY OUTSIDE MOULDING, NO.1 (1 parts) 75073 — MOULDING SUB-ASSY, FRONT DOOR, OUTSIDE LOWER RH (1 parts) 75074 — MOULDING SUB-ASSY, FRONT DOOR, OUTSIDE LOWER LH (1 parts) 75793 — PAD, FRONT DOOR OUTSIDE MOULDING, UPPER (1 parts) 75797 — PAD, REAR DOOR OUTSIDE MOULDING, UPPER (1 parts) 75867A — CLIP, ROCKER PANEL MOULDING (2 parts) 5579928010 — not listed in this catalogue 9010905058 — not listed in this catalogue 9015960623 — not listed in this catalogue 9015960623 — not listed in this catalogue 9015960623 — not listed in this catalogue 9015960623 — not listed in this catalogue 9015960623 — not listed in this catalogue 9015960623 — not listed in this catalogue 9017905102 — not listed in this catalogue 9018904059 — not listed in this catalogue 90189C0034 — not listed in this catalogue 9018906211 — not listed in this catalogue 90189C0035 — not listed in this catalogue 9018906211 — not listed in this catalogue 90189C0035 — not listed in this catalogue 9043004260 — not listed in this catalogue 9046707221 — not listed in this catalogue 9046708225 — not listed in this catalogue 90467C0044 — not listed in this catalogue 9046707221 — not listed in this catalogue 9010905058 — not listed in this catalogue 9043004260 — not listed in this catalogue 75605B — MOULDING SUB-ASSY, QUARTER OUTSIDE, RH (1 parts) 75606B — MOULDING SUB-ASSY, QUARTER OUTSIDE, LH (1 parts) 75601A — MOULDING SUB-ASSY, FRONT FENDER, RH (1 parts) 75602A — MOULDING SUB-ASSY, FRONT FENDER, LH (1 parts) 53851G — PAD, FRONT WHEEL OPENING EXTENSION, RH (1 parts) 53852D — PAD, FRONT WHEEL OPENING EXTENSION, LH (1 parts) 9046708224 — not listed in this catalogue 75078 — MOULDING SUB-ASSY, REAR DOOR OUTSIDE LOWER LH (1 parts) 75077 — MOULDING SUB-ASSY, REAR DOOR OUTSIDE LOWER RH (1 parts) 75862A — PROTECTOR, ROCKER PANEL MOULDING, NO.2 (1 parts) 9046708224 — not listed in this catalogue 5302 — not listed in this catalogue 5302 — not listed in this catalogue 5302 — not listed in this catalogue 7601 — not listed in this catalogue 75697 — PAD, BODY OUTSIDE MOULDING, NO.2 (1 parts) 75687 — PROTECTOR, QUARTER MOULDING, LOWER REAR RH (1 parts) 75688 — PROTECTOR, QUARTER MOULDING, LOWER REAR LH (1 parts) 76924G — RETAINER, ROCKER PANEL MOULDING (1 parts) 75601C — CLIP, FRONT FENDER MOULDING (1 parts) 90178C0072 — not listed in this catalogue 9017905102 — not listed in this catalogue 90178C0072 — not listed in this catalogue 75851C — SCREW(FOR BODY ROCKER PANEL MOULDING) (3 parts) 75851 — MOULDING, ROCKER PANEL, RH (1 parts) 75852 — MOULDING, ROCKER PANEL, LH (1 parts) 90189C0010 — not listed in this catalogue 9018906006 — not listed in this catalogue 9018906145 — not listed in this catalogue
753997C · 23 callouts, 34 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
26 parts on this figure
Part number Description Fitment Price
53851G — Pad, Front Wheel Opening Extension, RH
53851-F4060 Pad, Front Wheel Opening Extension, RH
2020-05 → —
KPX10 —
53852D — Pad, Front Wheel Opening Extension, LH
53851-F4060 Pad, Front Wheel Opening Extension, LH
2020-05 → —
KPX10 —
75073 — Moulding Sub-assy, Front Door, Outside Lower RH
75073-F4030 Moulding Sub-assy, Front Door, Outside Lower RH
2020-05 → —
KPX10 —
75074 — Moulding Sub-assy, Front Door, Outside Lower LH
75074-F4030 Moulding Sub-assy, Front Door, Outside Lower LH
2020-05 → —
KPX10 —
75077 — Moulding Sub-assy, Rear Door Outside Lower RH
75077-F4030 note Moulding Sub-assy, Rear Door Outside Lower RH
2020-05 → —
KPX10 —
75078 — Moulding Sub-assy, Rear Door Outside Lower LH
75078-F4030 note Moulding Sub-assy, Rear Door Outside Lower LH
2020-05 → —
KPX10 —
75601A — Moulding Sub-assy, Front Fender, RH
75601-F4030 note Moulding Sub-assy, Front Fender, RH
2020-05 → —
KPX10 —
75601C — Clip, Front Fender Moulding
90467-C0043 Clip, Front Fender Moulding
2020-05 → —
KPX10 —
75602A — Moulding Sub-assy, Front Fender, LH
75602-F4030 note Moulding Sub-assy, Front Fender, LH
2020-05 → —
KPX10 —
75605B — Moulding Sub-assy, Quarter Outside, RH
75605-F4030 note Moulding Sub-assy, Quarter Outside, RH
2020-05 → —
KPX10 —
75606B — Moulding Sub-assy, Quarter Outside, LH
75606-F4030 note Moulding Sub-assy, Quarter Outside, LH
2020-05 → —
KPX10 —
75687 — Protector, Quarter Moulding, Lower Rear RH
75687-F4020 Protector, Quarter Moulding, Lower Rear RH
2020-05 → —
KPX10 —
75688 — Protector, Quarter Moulding, Lower Rear LH
75687-F4020 Protector, Quarter Moulding, Lower Rear LH
2020-05 → —
KPX10 —
75696 — Pad, Body Outside Moulding, NO.1
75696-F4040 Pad, Body Outside Moulding, NO.1
2020-05 → —
KPX10 —
75697 — Pad, Body Outside Moulding, NO.2
75696-F4040 Pad, Body Outside Moulding, NO.2
2020-05 → —
KPX10 —
75793 — Pad, Front Door Outside Moulding, Upper
75793-F4030 Pad, Front Door Outside Moulding, Upper
2020-05 → —
KPX10 —
75797 — Pad, Rear Door Outside Moulding, Upper
75797-F4030 Pad, Rear Door Outside Moulding, Upper
2020-05 → —
KPX10 —
75851 — Moulding, Rocker Panel, RH
75851-F4050 Moulding, Rocker Panel, RH
2020-05 → —
KPX10 —
75851C — Screw(FOR BODY ROCKER PANEL MOULDING)
90162-40034 note Screw(FOR BODY ROCKER PANEL MOULDING)
2020-05 → —
KPX10 —
90162-40035 note Screw(FOR BODY ROCKER PANEL MOULDING)
2020-05 → —
KPX10 —
90162-C0002 note Screw(FOR BODY ROCKER PANEL MOULDING)
2020-05 → —
KPX10 —
75852 — Moulding, Rocker Panel, LH
75852-F4050 Moulding, Rocker Panel, LH
2020-05 → —
KPX10 —
75862A — Protector, Rocker Panel Moulding, NO.2
75862-F4020 Protector, Rocker Panel Moulding, NO.2
2020-05 → —
KPX10 —
75867A — Clip, Rocker Panel Moulding
75867-0R010 Clip, Rocker Panel Moulding
2020-05 → 2020-11 ended
KPX10 —
75867-30130 Clip, Rocker Panel Moulding
2020-12 → —
KPX10 —
76924G — Retainer, Rocker Panel Moulding
76923-52021 Retainer, Rocker Panel Moulding
2020-05 → —
KPX10 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
