Toyota Izoa
2020-05 → 2022-07 · chassis KPX10 · catalogue 539310 · General
Supported model
Data version 2023-05

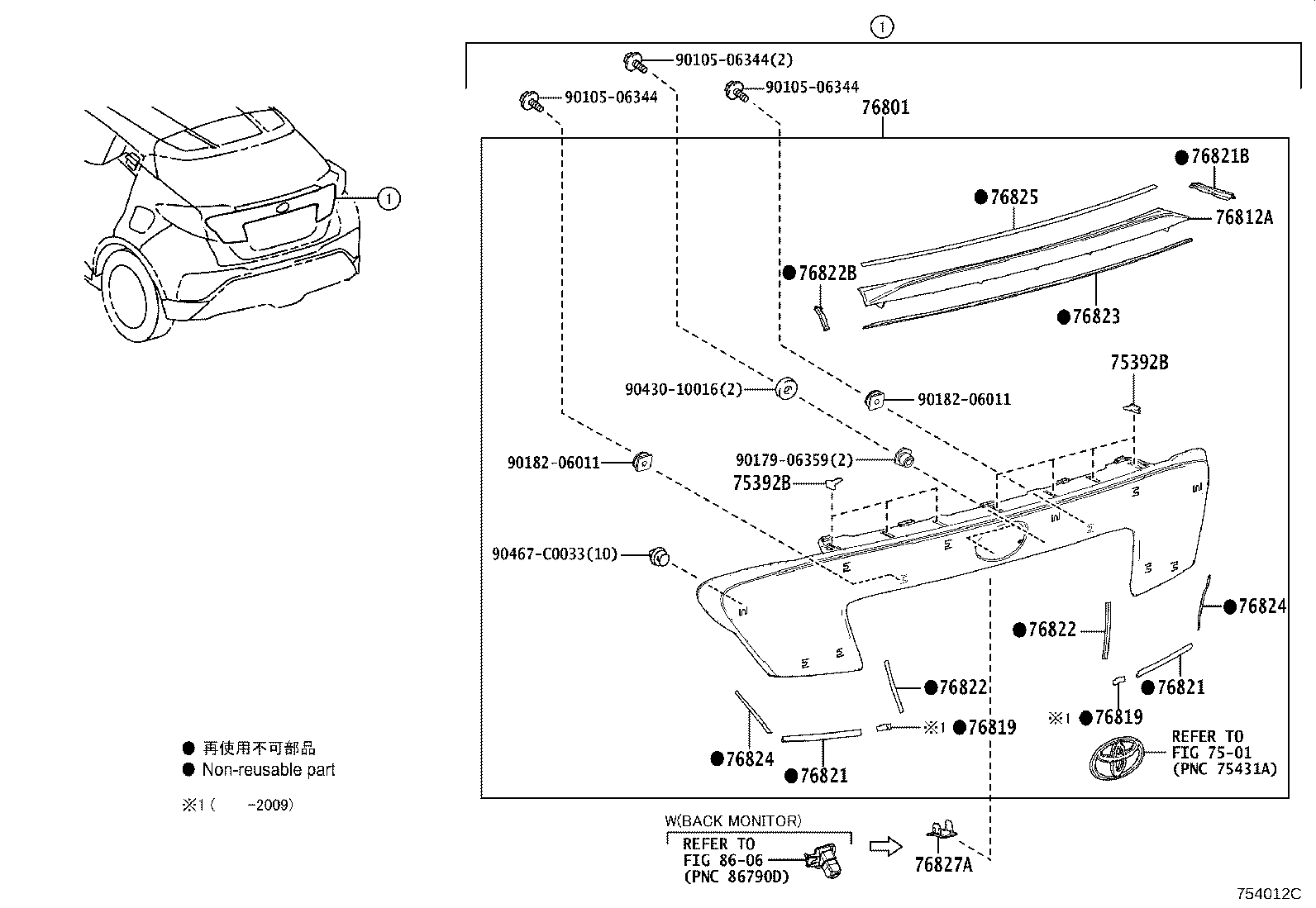

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 75392B — Reteiner, Outside Moulding, NO.1 | ||||
| 75392-0R030 |
Reteiner, Outside Moulding, NO.1
2020-05 → —
|
KPX10 | — | |
| 76801 — Garnish Sub-assy, Back Door, Outside | ||||
| 76801-F4150-A0 note |
Garnish Sub-assy, Back Door, Outside
2020-05 → 2021-05
ended
|
KPX10 | — | |
| 76801-F4150-A1 note |
Garnish Sub-assy, Back Door, Outside
2021-05 → —
|
KPX10 | — | |
| 76801-F4150-B0 note |
Garnish Sub-assy, Back Door, Outside
2020-05 → —
|
KPX10 | — | |
| 76801-F4150-C0 note |
Garnish Sub-assy, Back Door, Outside
2020-05 → —
|
KPX10 | — | |
| 76801-F4150-D0 note |
Garnish Sub-assy, Back Door, Outside
2020-05 → —
|
KPX10 | — | |
| 76801-F4150-E0 note |
Garnish Sub-assy, Back Door, Outside
2020-05 → 2021-05
ended
|
KPX10 | — | |
| 76801-F4150-J0 note |
Garnish Sub-assy, Back Door, Outside
2020-05 → 2021-05
ended
|
KPX10 | — | |
| 76801-F4150-J1 note |
Garnish Sub-assy, Back Door, Outside
2021-05 → —
|
KPX10 | — | |
| 76812A — Garnish, Back Door, Outside NO.2 | ||||
| 76812-F4050-A0 note |
Garnish, Back Door, Outside NO.2
2020-05 → 2021-05
ended
|
KPX10 | — | |
| 76812-F4050-A1 note |
Garnish, Back Door, Outside NO.2
2021-05 → —
|
KPX10 | — | |
| 76812-F4050-B0 note |
Garnish, Back Door, Outside NO.2
2020-05 → —
|
KPX10 | — | |
| 76812-F4050-C0 note |
Garnish, Back Door, Outside NO.2
2020-05 → —
|
KPX10 | — | |
| 76812-F4050-D0 note |
Garnish, Back Door, Outside NO.2
2020-05 → —
|
KPX10 | — | |
| 76812-F4050-E0 note |
Garnish, Back Door, Outside NO.2
2020-05 → 2021-05
ended
|
KPX10 | — | |
| 76812-F4050-J0 note |
Garnish, Back Door, Outside NO.2
2020-05 → 2021-05
ended
|
KPX10 | — | |
| 76812-F4050-J1 note |
Garnish, Back Door, Outside NO.2
2021-05 → —
|
KPX10 | — | |
| 76819 — Seal, Back Door Outside Garnish | ||||
| 76819-F4030 |
Seal, Back Door Outside Garnish
2020-05 → 2020-09
ended
|
KPX10 | — | |
| 76821 — Protector, Back Door Garnish Moulding, Upper | ||||
| 76821-F4030 |
Protector, Back Door Garnish Moulding, Upper
2020-05 → —
|
KPX10 | — | |
| 76821B — Protector, Back Door Garnish Side, RH | ||||
| 76841-F4030 |
Protector, Back Door Garnish Side, RH
2020-05 → —
|
KPX10 | — | |
| 76822 — Protector, Back Door Garnish Moulding, Lower | ||||
| 76822-F4030 |
Protector, Back Door Garnish Moulding, Lower
2020-05 → —
|
KPX10 | — | |
| 76822B — Protector, Back Door Garnish Side, LH | ||||
| 76842-F4030 |
Protector, Back Door Garnish Side, LH
2020-05 → —
|
KPX10 | — | |
| 76823 — Protector, Back Door Garnish Moulding, RH | ||||
| 76823-F4030 |
Protector, Back Door Garnish Moulding, RH
2020-05 → —
|
KPX10 | — | |
| 76824 — Protector, Back Door Garnish Moulding, LH | ||||
| 76824-F4030 |
Protector, Back Door Garnish Moulding, LH
2020-05 → —
|
KPX10 | — | |
| 76825 — Protector, Back Door Outside Garnish | ||||
| 76825-F4030 |
Protector, Back Door Outside Garnish
2020-05 → —
|
KPX10 | — | |
| 76827A — Retainer, Back Door Garnish, NO.2 | ||||
| 76827-F4020 |
Retainer, Back Door Garnish, NO.2
2020-05 → —
|
KPX10 D | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
