Toyota Izoa
2020-05 → 2022-07 · chassis KPX10 · catalogue 539310 · General
Supported model
Data version 2023-05

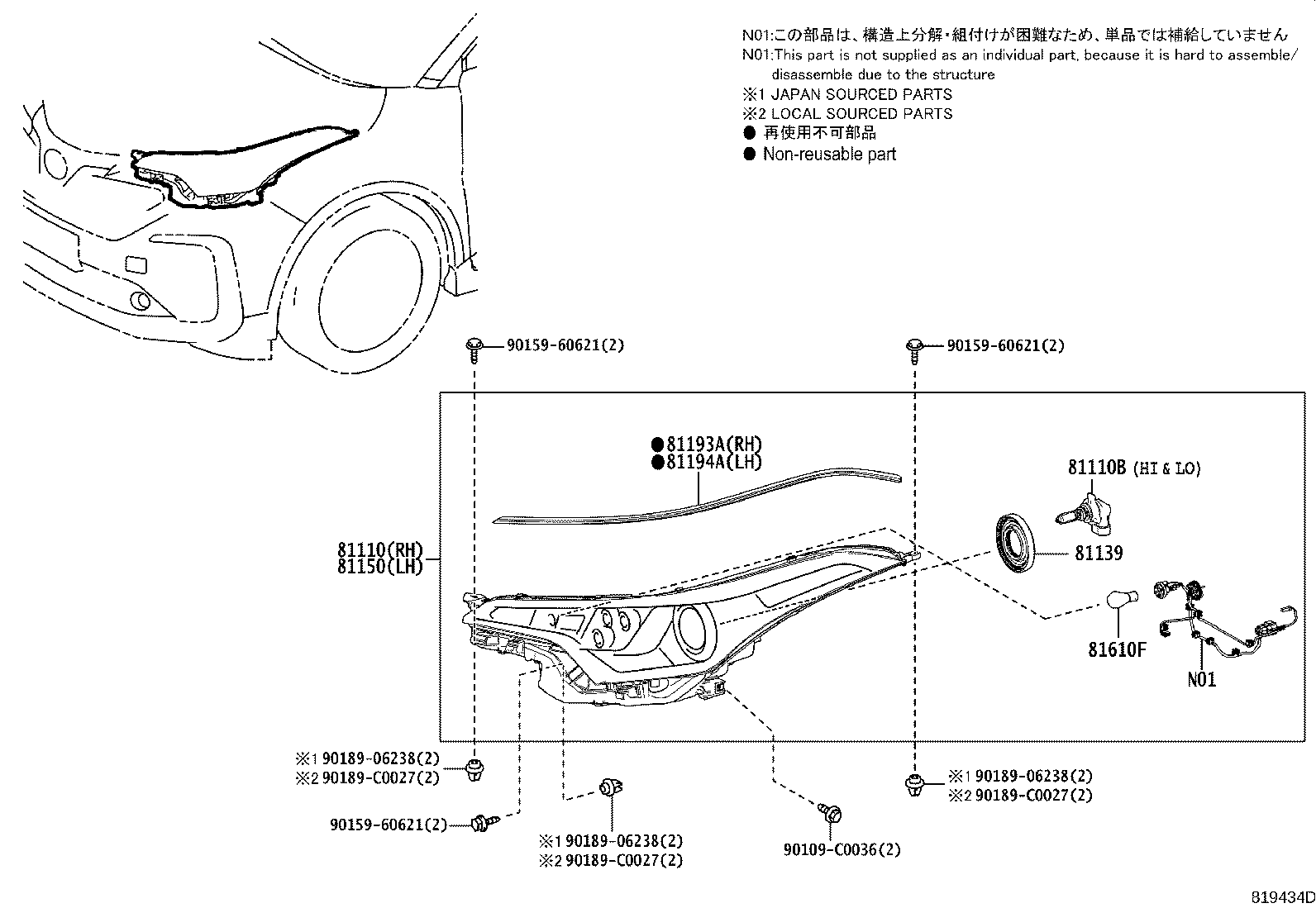

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 81110 — Headlamp Assy, RH | ||||
| 81110-F4111 |
Headlamp Assy, RH
2020-05 → —
|
KPX10 D,N | — | |
| 81110-F4121 |
Headlamp Assy, RH
2020-05 → —
|
KPX10 E | — | |
| 81110B — Bulb(FOR HEADLAMP, NO.1) | ||||
| 90981-13089 note |
Bulb(FOR HEADLAMP, NO.1)
2020-05 → —
|
KPX10 D,N | — | |
| 81139 — Cover, Headlamp Socket | ||||
| 90069-81120 |
Cover, Headlamp Socket
2020-05 → —
|
KPX10 D,N | — | |
| 81150 — Headlamp Assy, LH | ||||
| 81150-F4111 |
Headlamp Assy, LH
2020-05 → —
|
KPX10 D,N | — | |
| 81150-F4121 |
Headlamp Assy, LH
2020-05 → —
|
KPX10 E | — | |
| 81193A — Protector, Headlamp, RH | ||||
| 81193-F4090 |
Protector, Headlamp, RH
2020-05 → —
|
KPX10 | — | |
| 81194A — Protector, Headlamp, LH | ||||
| 81194-F4090 |
Protector, Headlamp, LH
2020-05 → —
|
KPX10 | — | |
| 81610F — Bulb(FOR CLEARANCE LAMP) | ||||
| 90981-15020 note |
Bulb(FOR CLEARANCE LAMP)
2020-05 → —
|
KPX10 D,N | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
