Toyota Izoa
2020-05 → 2022-07 · chassis KPX10 · catalogue 539310 · General
Supported model
Data version 2023-05

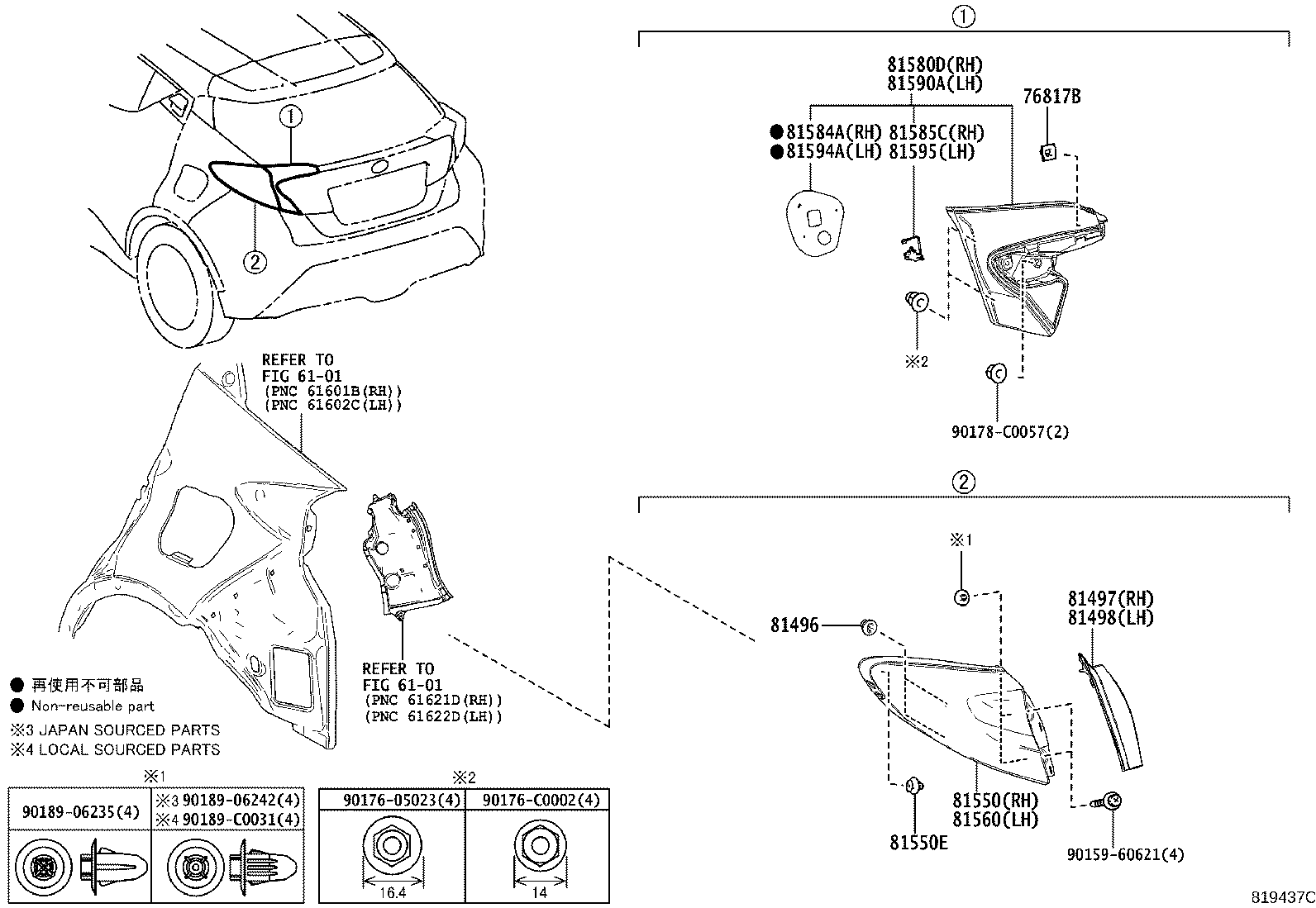

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 76817B — Clip, Rear Lamp | ||||
| 76817-26040 note |
Clip, Rear Lamp
2021-10 → —
|
KPX10 | — | |
| 76817-26040 |
Clip, Rear Lamp
2020-05 → 2021-10
ended
|
KPX10 | — | |
| 90467-C0083 note |
Clip, Rear Lamp
2021-10 → —
|
KPX10 | — | |
| 81496 — Guide, Rear Combination Lamp | ||||
| 81496-02020 |
Guide, Rear Combination Lamp
2020-05 → —
|
KPX10 | — | |
| 81497 — Cover, Rear Combination Lamp, RH | ||||
| 81497-F4030 |
Cover, Rear Combination Lamp, RH
2020-05 → —
|
KPX10 | — | |
| 81498 — Cover, Rear Combination Lamp, LH | ||||
| 81498-F4030 |
Cover, Rear Combination Lamp, LH
2020-05 → —
|
KPX10 | — | |
| 81550 — Lamp Assy, Rear Combination, RH | ||||
| 81550-F4081 |
Lamp Assy, Rear Combination, RH
2020-05 → —
|
KPX10 D,N | — | |
| 81550-F4090 |
Lamp Assy, Rear Combination, RH
2020-05 → —
|
KPX10 E | — | |
| 81550E — Clip(FOR REAR COMBINATION LAMP) | ||||
| 90467-C0019 |
Clip(FOR REAR COMBINATION LAMP)
2020-05 → —
|
KPX10 | — | |
| 81560 — Lamp Assy, Rear Combination, LH | ||||
| 81560-F4081 |
Lamp Assy, Rear Combination, LH
2020-05 → —
|
KPX10 D,N | — | |
| 81560-F4090 |
Lamp Assy, Rear Combination, LH
2020-05 → —
|
KPX10 E | — | |
| 81580D — Lamp Assy, Rear, RH | ||||
| 81580-F4051 |
Lamp Assy, Rear, RH
2020-05 → —
|
KPX10 D,N | — | |
| 81580-F4060 |
Lamp Assy, Rear, RH
2020-05 → —
|
KPX10 E | — | |
| 81584A — Gasket, Rear Lamp RH | ||||
| 81584-F4050 |
Gasket, Rear Lamp RH
2020-05 → —
|
KPX10 D,N | — | |
| 81584-F4060 |
Gasket, Rear Lamp RH
2020-05 → —
|
KPX10 E | — | |
| 81585C — Socket & Wire, Rear Lamp, RH | ||||
| 81585-F4060 |
Socket & Wire, Rear Lamp, RH
2020-05 → —
|
KPX10 E | — | |
| 81590A — Lamp Assy, Rear, LH | ||||
| 81590-F4051 |
Lamp Assy, Rear, LH
2020-05 → —
|
KPX10 D,N | — | |
| 81590-F4060 |
Lamp Assy, Rear, LH
2020-05 → —
|
KPX10 E | — | |
| 81594A — Gasket, Rear Lamp LH | ||||
| 81594-F4050 |
Gasket, Rear Lamp LH
2020-05 → —
|
KPX10 D,N | — | |
| 81594-F4060 |
Gasket, Rear Lamp LH
2020-05 → —
|
KPX10 E | — | |
| 81595 — Socket & Wire, Rear Lamp, LH | ||||
| 81585-F4060 |
Socket & Wire, Rear Lamp, LH
2020-05 → —
|
KPX10 E | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
