Toyota Izoa
2020-05 → 2022-07 · chassis KPX10 · catalogue 539310 · General
Supported model
Data version 2023-05

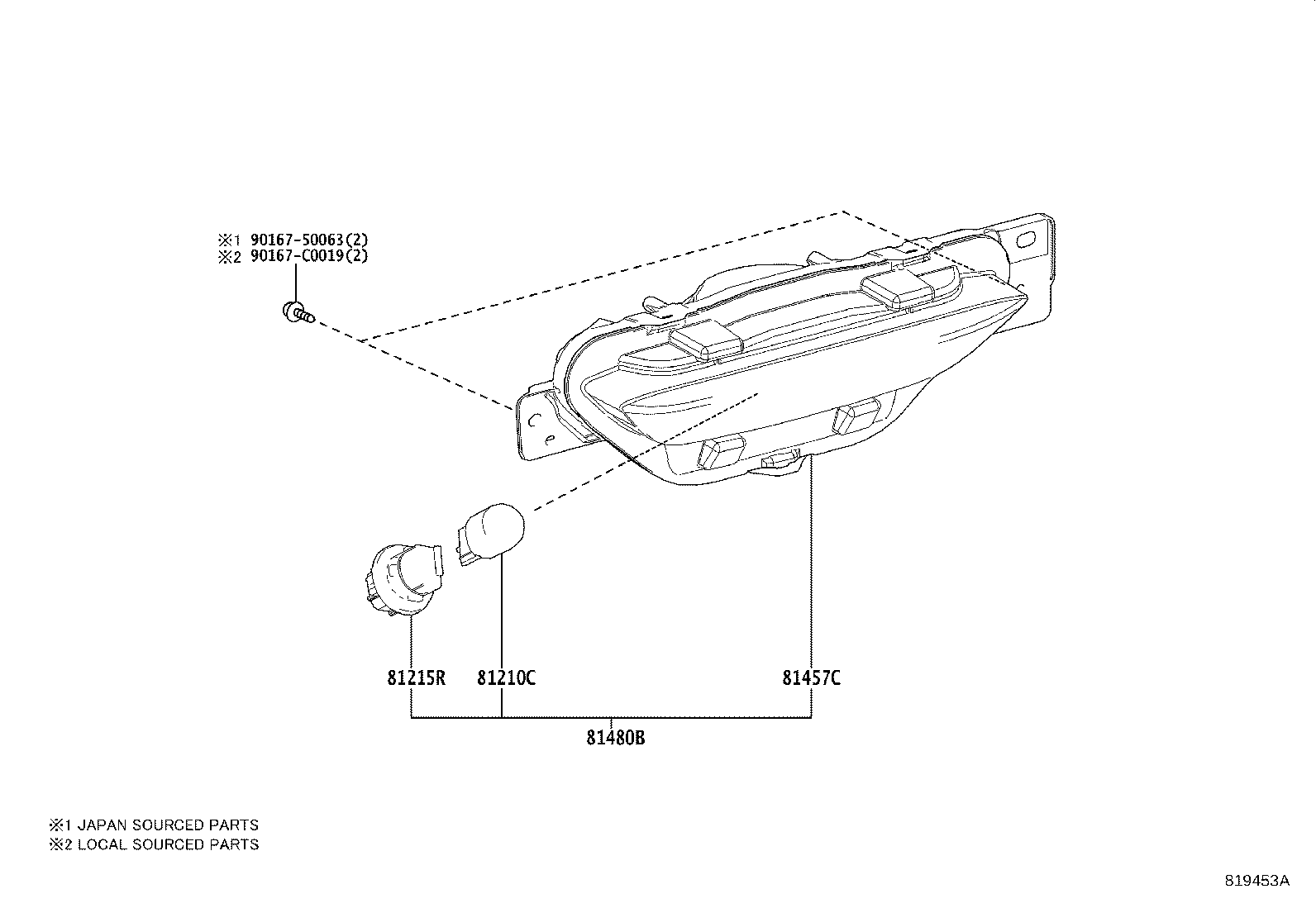

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 81210C — Bulb, Rear Fog Lamp | ||||
| 90981-CD005 note |
Bulb, Rear Fog Lamp
2020-05 → —
|
KPX10 | — | |
| 81215R — Socket & Wire, Rear Fog Lamp | ||||
| 81459-0R030 |
Socket & Wire, Rear Fog Lamp
2020-05 → —
|
KPX10 | — | |
| 81457C — Lens & Body, Rear Fog Lamp | ||||
| 81457-F4020 |
Lens & Body, Rear Fog Lamp
2020-05 → —
|
KPX10 | — | |
| 81480B — Lamp Assy, Rear Fog | ||||
| 81480-F4020 |
Lamp Assy, Rear Fog
2020-05 → —
|
KPX10 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
