Toyota Izoa
2020-05 → 2022-07 · chassis KPX10 · catalogue 539310 · General
Supported model
Data version 2023-05

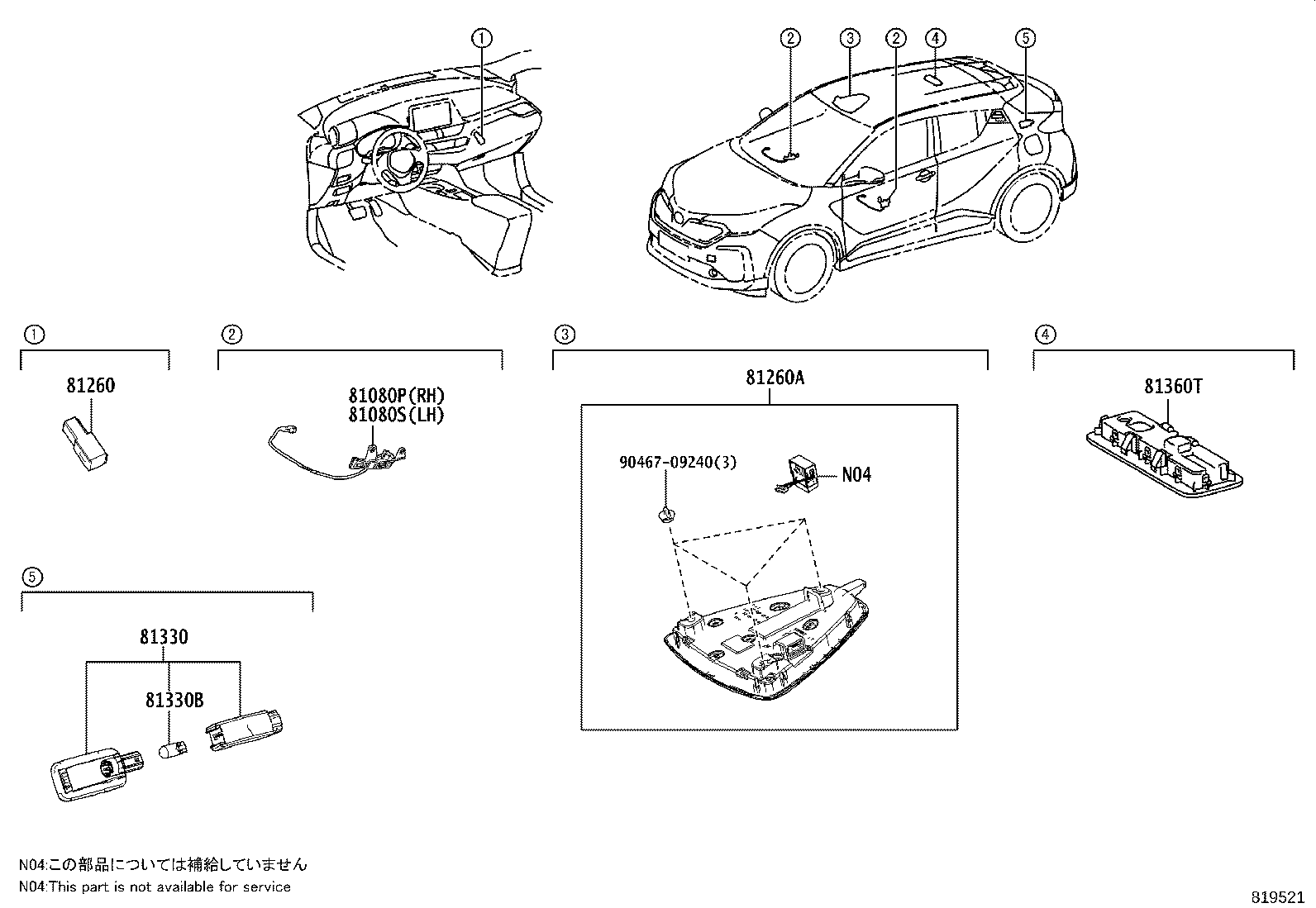

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 81080P — Lamp Assy, Interior Illumination, NO.1 RH | ||||
| 81080-F4030-C1 note |
Lamp Assy, Interior Illumination, NO.1 RH
2020-05 → —
|
KPX10 N | — | |
| 81080-F4030-C2 note |
Lamp Assy, Interior Illumination, NO.1 RH
2020-05 → —
|
KPX10 E | — | |
| 81080-F4030-C3 note |
Lamp Assy, Interior Illumination, NO.1 RH
2020-05 → —
|
KPX10 E | — | |
| 81080S — Lamp Assy, Interior Illumination, NO.1 LH | ||||
| 81090-F4030-C1 note |
Lamp Assy, Interior Illumination, NO.1 LH
2020-05 → —
|
KPX10 N | — | |
| 81090-F4030-C2 note |
Lamp Assy, Interior Illumination, NO.1 LH
2020-05 → —
|
KPX10 E | — | |
| 81090-F4030-C3 note |
Lamp Assy, Interior Illumination, NO.1 LH
2020-05 → —
|
KPX10 E | — | |
| 81260 — Lamp Assy, Glove Box | ||||
| 81080-06570 |
Lamp Assy, Glove Box
2021-04 → 2021-10
ended
|
KPX10 | — | |
| 81080-0E060 |
Lamp Assy, Glove Box
2021-11 → —
|
KPX10 | — | |
| 81080-58100 |
Lamp Assy, Glove Box
2020-05 → 2021-03
ended
|
KPX10 | — | |
| 81260A — Lamp Assy, Map | ||||
| 81260-F4181-C0 note |
Lamp Assy, Map
2020-05 → —
|
KPX10 D | — | |
| 81260-F4181-C0 note |
Lamp Assy, Map
2020-05 → —
|
KPX10 E | — | |
| 81260-F4181-C0 note |
Lamp Assy, Map
2020-05 → —
|
KPX10 N | — | |
| 81260-F4191-C0 note |
Lamp Assy, Map
2020-05 → —
|
KPX10 N | — | |
| 81260-F4191-C0 note |
Lamp Assy, Map
2020-05 → —
|
KPX10 E | — | |
| 81330 — Lamp Assy, Luggage Compartment, NO.1 | ||||
| 81250-30210 |
Lamp Assy, Luggage Compartment, NO.1
2020-05 → —
|
KPX10 | — | |
| 81330B — Bulb, Luggage Compartment Lamp | ||||
| 99132-12050 note |
Bulb, Luggage Compartment Lamp
2020-05 → —
|
KPX10 | — | |
| 81360T — Lamp Assy, Spot | ||||
| 81360-0N030-C0 note |
Lamp Assy, Spot
2020-05 → —
|
KPX10 E | — | |
| 81360-0N030-C0 note |
Lamp Assy, Spot
2020-05 → —
|
KPX10 D,N | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
