Toyota Izoa
2020-05 → 2022-07 · chassis KPX10 · catalogue 539310 · General
Supported model
Data version 2023-05

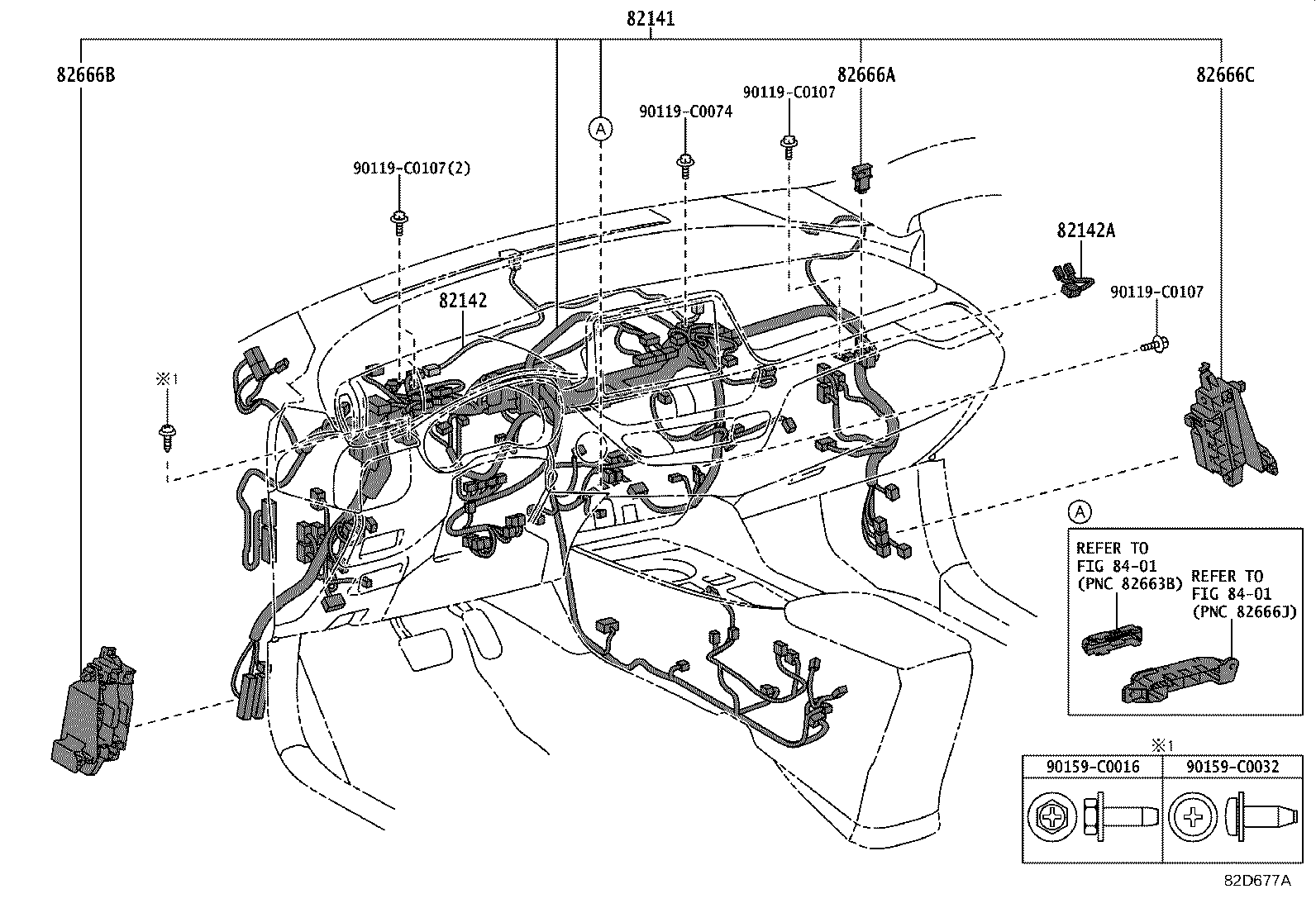

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82141 — Wire, Instrument Panel | ||||
| 82141-F4D90 |
Wire, Instrument Panel
2020-05 → —
|
KPX10 D | — | |
| 82141-F4E00 |
Wire, Instrument Panel
2020-05 → —
|
KPX10 N | — | |
| 82141-F4E10 |
Wire, Instrument Panel
2020-05 → —
|
KPX10 E | — | |
| 82142 — Wire, Instrument Panel, NO.2 | ||||
| 82142-F4130 |
Wire, Instrument Panel, NO.2
2020-05 → —
|
KPX10 E | — | |
| 82142-F4140 |
Wire, Instrument Panel, NO.2
2020-05 → —
|
KPX10 D,N | — | |
| 82142A — Wire, Instrument Panel, NO.2 | ||||
| 82140-F4030 |
Wire, Instrument Panel, NO.2
2020-05 → —
|
KPX10 | — | |
| 82666A — Holder, Connector NO.2 | ||||
| 82666-20270 |
Holder, Connector NO.2
2020-05 → —
|
KPX10 | — | |
| 82666B — Holder, Connector NO.3 | ||||
| 82666-F4130 |
Holder, Connector NO.3
2020-05 → —
|
KPX10 | — | |
| 82666C — Holder, Connector NO.4 | ||||
| 82666-F4140 |
Holder, Connector NO.4
2020-05 → —
|
KPX10 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
