Toyota Izoa
2020-05 → 2022-07 · chassis KPX10 · catalogue 539310 · General
Supported model
Data version 2023-05

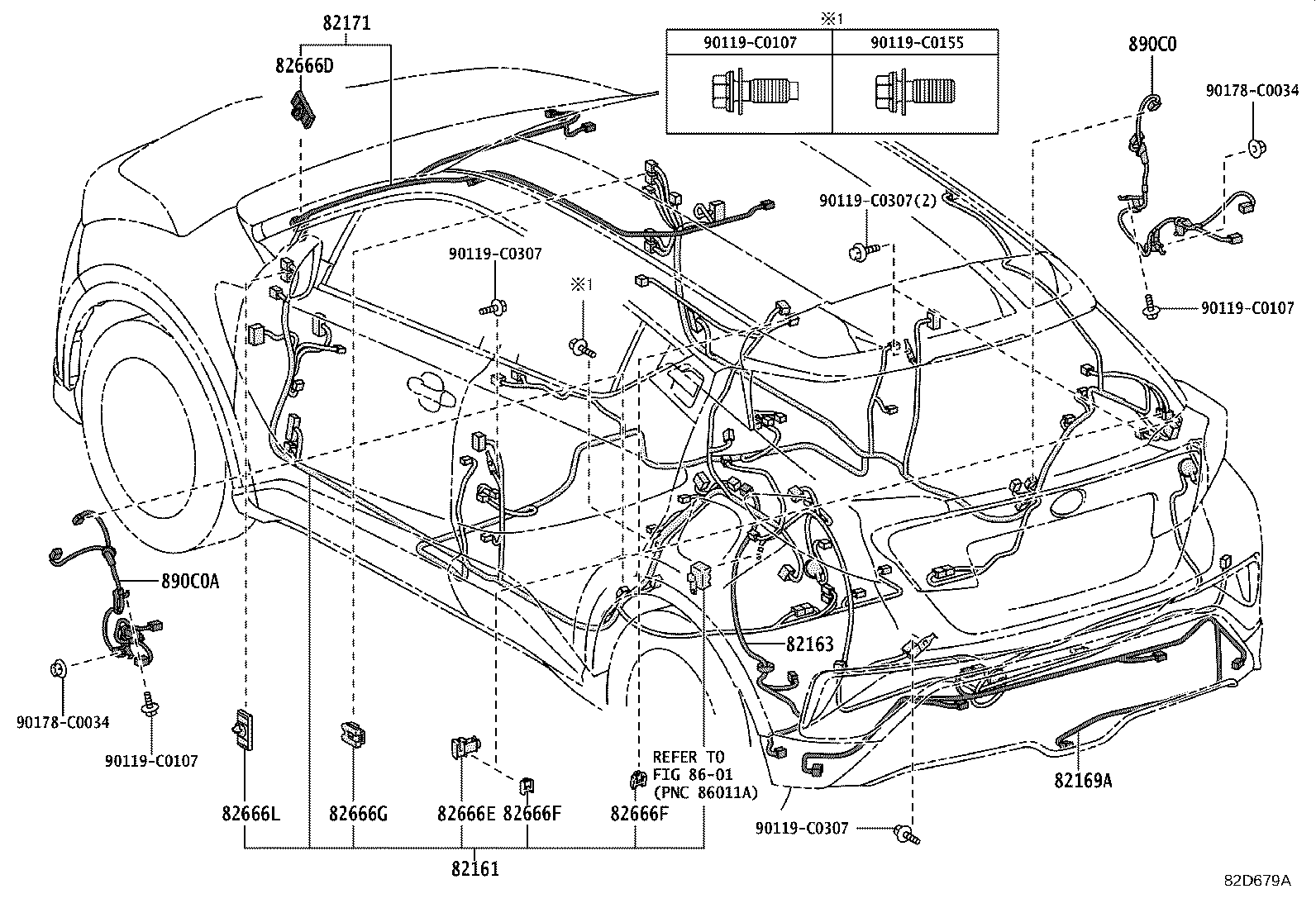

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82161 — Wire, Floor | ||||
| 82161-F4N90 |
Wire, Floor
2020-05 → 2020-08
ended
|
KPX10 N | — | |
| 82161-F4N91 |
Wire, Floor
2020-08 → —
|
KPX10 N | — | |
| 82161-F4P00 |
Wire, Floor
2020-05 → 2020-08
ended
|
KPX10 D | — | |
| 82161-F4P01 |
Wire, Floor
2020-08 → —
|
KPX10 D | — | |
| 82161-F4P10 |
Wire, Floor
2020-05 → 2020-08
ended
|
KPX10 E | — | |
| 82161-F4P11 |
Wire, Floor
2020-08 → —
|
KPX10 E | — | |
| 82163 — Wire, Floor, NO.3 | ||||
| 82163-F4050 |
Wire, Floor, NO.3
2020-05 → —
|
KPX10 E | — | |
| 82169A — Wire, Floor, NO.6 | ||||
| 82169-F4050 |
Wire, Floor, NO.6
2020-05 → —
|
KPX10 | — | |
| 82171 — Wire, Roof, NO.1 | ||||
| 82171-F4C70 |
Wire, Roof, NO.1
2020-05 → —
|
KPX10 E,N | — | |
| 82171-F4C80 |
Wire, Roof, NO.1
2020-05 → —
|
KPX10 D | — | |
| 82171-F4C80 note |
Wire, Roof, NO.1
2020-05 → —
|
KPX10 E,N | — | |
| 82666D — Holder, Connector NO.5 | ||||
| 82666-60220 |
Holder, Connector NO.5
2020-05 → —
|
KPX10 | — | |
| 82666E — Holder, Connector NO.6 | ||||
| 82666-20270 |
Holder, Connector NO.6
2020-05 → —
|
KPX10 | — | |
| 82666F — Holder, Connector NO.7 | ||||
| 82666-21040 |
Holder, Connector NO.7
2020-05 → —
|
KPX10 | — | |
| 82666G — Holder, Connector NO.8 | ||||
| 82666-26080 |
Holder, Connector NO.8
2020-05 → —
|
KPX10 | — | |
| 82666L — Holder, Connector NO.9 | ||||
| 82666-60220 |
Holder, Connector NO.9
2020-05 → —
|
KPX10 | — | |
| 890C0 — Wire Assy, Parking Brake, NO.1 | ||||
| 890C0-F4060 |
Wire Assy, Parking Brake, NO.1
2020-05 → —
|
KPX10 | — | |
| 890C0A — Wire Assy, Parking Brake, NO.2 | ||||
| 890C0-F4110 |
Wire Assy, Parking Brake, NO.2
2020-05 → —
|
KPX10 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
