Toyota Izoa
2020-05 → 2022-07 · chassis KPX10 · catalogue 539310 · General
Supported model
Data version 2023-05

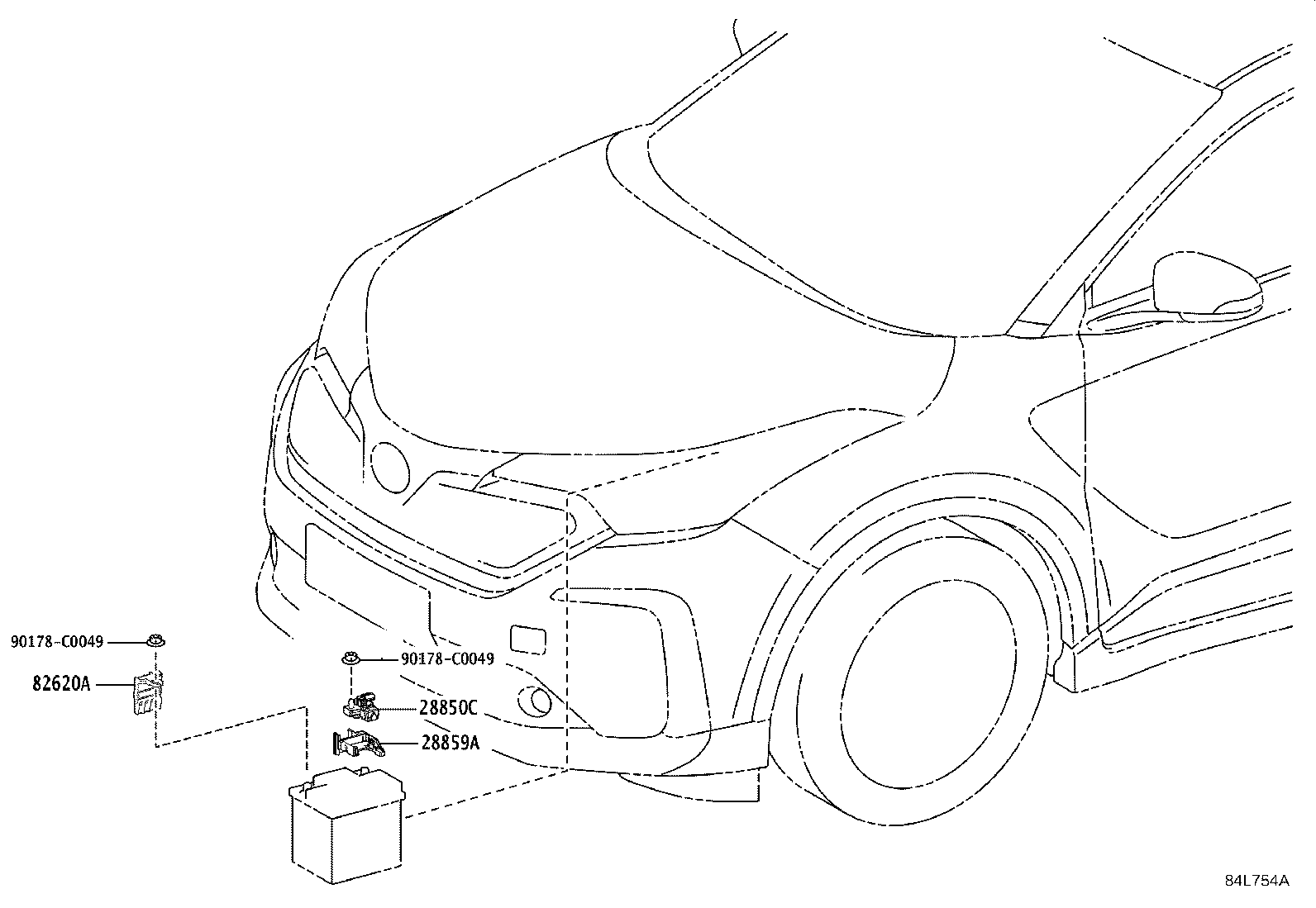

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 28850C — Sensor Assy, Battery State | ||||
| 28850-K0010 |
Sensor Assy, Battery State
2020-05 → —
|
4KM KPX10 | — | |
| 28859A — Holder, Battery Current Sensor | ||||
| 28859-0Z010 |
Holder, Battery Current Sensor
2020-05 → —
|
4KM KPX10 | — | |
| 82620A — Block Assy, Fusible Link | ||||
| 82620-47090 |
Block Assy, Fusible Link
2020-05 → —
|
KPX10 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
