Toyota Izoa
2020-05 → 2022-07 · chassis KPX10 · catalogue 539310 · General
Supported model
Data version 2023-05

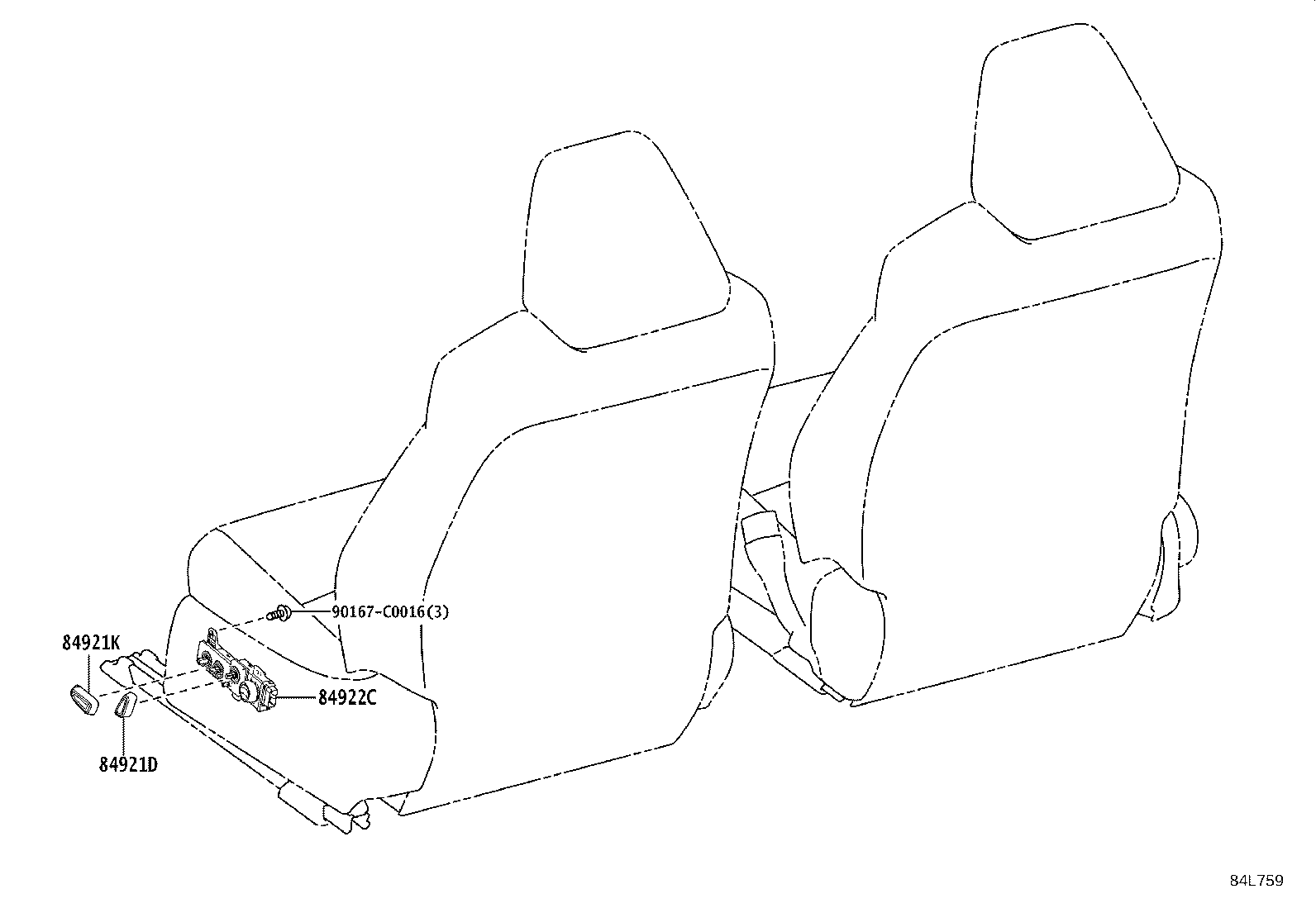

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 84921D — Knob, Power Seat Switch, LH | ||||
| 84921-07020-C1 note |
Knob, Power Seat Switch, LH
2020-05 → —
|
KPX10 E | — | |
| 84921K — Knob, Power Seat Switch, LH | ||||
| 84921-07010-C1 note |
Knob, Power Seat Switch, LH
2020-05 → —
|
KPX10 E | — | |
| 84922C — Switch, Front Power Seat, LH | ||||
| 84922-07040-C1 note |
Switch, Front Power Seat, LH
2020-05 → —
|
KPX10 E | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
