Toyota Izoa
2020-05 → 2022-07 · chassis KPX10 · catalogue 539310 · General
Supported model
Data version 2023-05

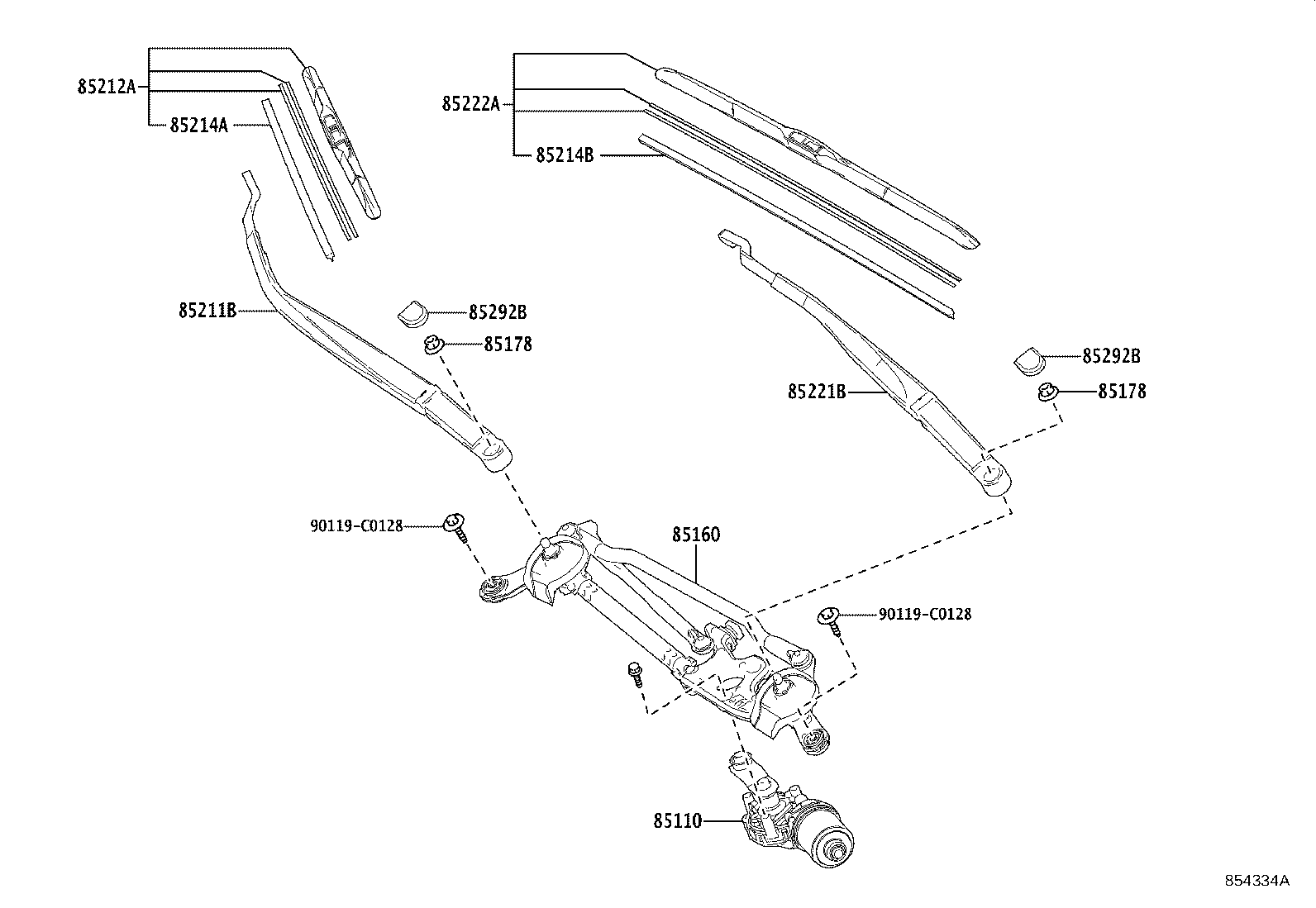

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 85110 — Motor Assy, Windshield Wiper | ||||
| 85110-F4070 |
Motor Assy, Windshield Wiper
2020-05 → 2020-08
ended
|
KPX10 | — | |
| 85110-F4090 |
Motor Assy, Windshield Wiper
2020-08 → —
|
KPX10 | — | |
| 85160 — Link Assy, Windshield Wiper | ||||
| 85150-F4060 |
Link Assy, Windshield Wiper
2020-05 → —
|
KPX10 | — | |
| 85178 — Nut (FOR FRONT WIPER ARM SETTING) | ||||
| 90182-C0012 |
Nut (FOR FRONT WIPER ARM SETTING)
2020-05 → —
|
KPX10 | — | |
| 85211B — Arm, Front Wiper, RH | ||||
| 85211-F4061 |
Arm, Front Wiper, RH
2020-05 → —
|
KPX10 | — | |
| 85212A — Blade, FR Wiper, RH | ||||
| 85212-F4051 |
Blade, FR Wiper, RH
2020-05 → —
|
KPX10 | — | |
| 85214A — Rubber, Wiper, RH | ||||
| 85214-0R060 |
Rubber, Wiper, RH
2020-05 → —
|
KPX10 | — | |
| 85214B — Rubber, Wiper, LH | ||||
| 85214-02340 |
Rubber, Wiper, LH
2020-05 → —
|
KPX10 | — | |
| 85221B — Arm, Front Wiper, LH | ||||
| 85221-F4061 |
Arm, Front Wiper, LH
2020-05 → —
|
KPX10 | — | |
| 85222A — Blade, FR Wiper, LH | ||||
| 85222-02320 |
Blade, FR Wiper, LH
2020-05 → —
|
KPX10 | — | |
| 85292B — Cap, Front Wiper Arm Head | ||||
| 85292-0D070 |
Cap, Front Wiper Arm Head
2020-05 → —
|
KPX10 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
