Toyota Izoa
2020-05 → 2022-07 · chassis KPX10 · catalogue 539310 · General
Supported model
Data version 2023-05

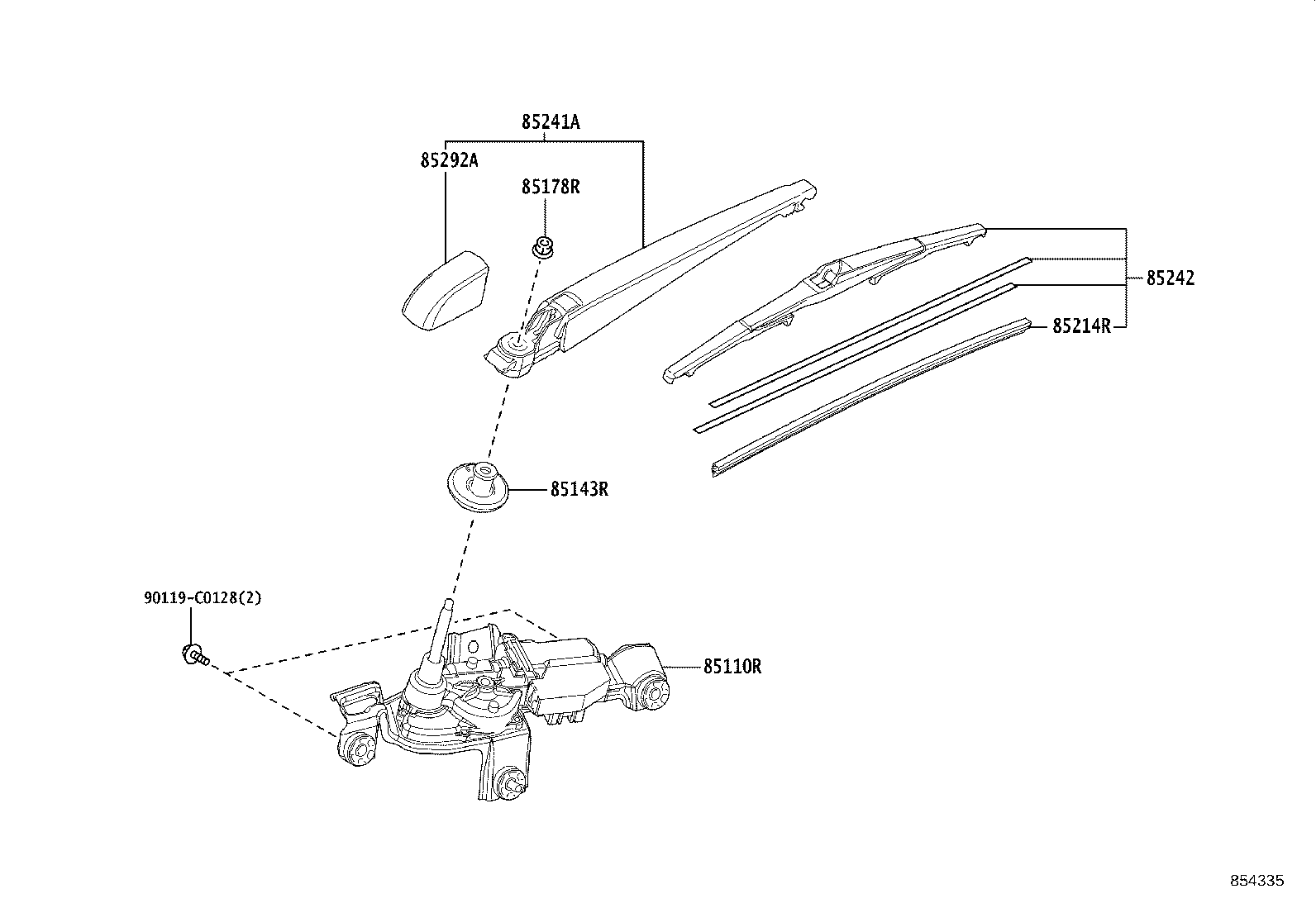

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 85110R — Motor Assy, Rear Wiper | ||||
| 85130-F4050 |
Motor Assy, Rear Wiper
2020-05 → —
|
KPX10 | — | |
| 85143R — Grommet, Rear Wiper Motor | ||||
| 85143-F4040 |
Grommet, Rear Wiper Motor
2020-05 → —
|
KPX10 | — | |
| 85178R — Nut (FOR REAR WIPER ARM SETTING) | ||||
| 90182-C0004 |
Nut (FOR REAR WIPER ARM SETTING)
2020-05 → —
|
KPX10 | — | |
| 85214R — Rubber, Rear Wiper | ||||
| 85214-F4080 |
Rubber, Rear Wiper
2020-05 → —
|
KPX10 | — | |
| 85241A — Arm, Rear Wiper | ||||
| 85241-F4030 |
Arm, Rear Wiper
2020-05 → —
|
KPX10 | — | |
| 85242 — Blade, RR Wiper | ||||
| 85242-F4020 |
Blade, RR Wiper
2020-05 → —
|
KPX10 | — | |
| 85292A — Cap, Rear Wiper Arm Head | ||||
| 85292-F4050 |
Cap, Rear Wiper Arm Head
2020-05 → —
|
KPX10 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
