Toyota Izoa
2020-05 → 2022-07 · chassis KPX10 · catalogue 539310 · General
Supported model
Data version 2023-05

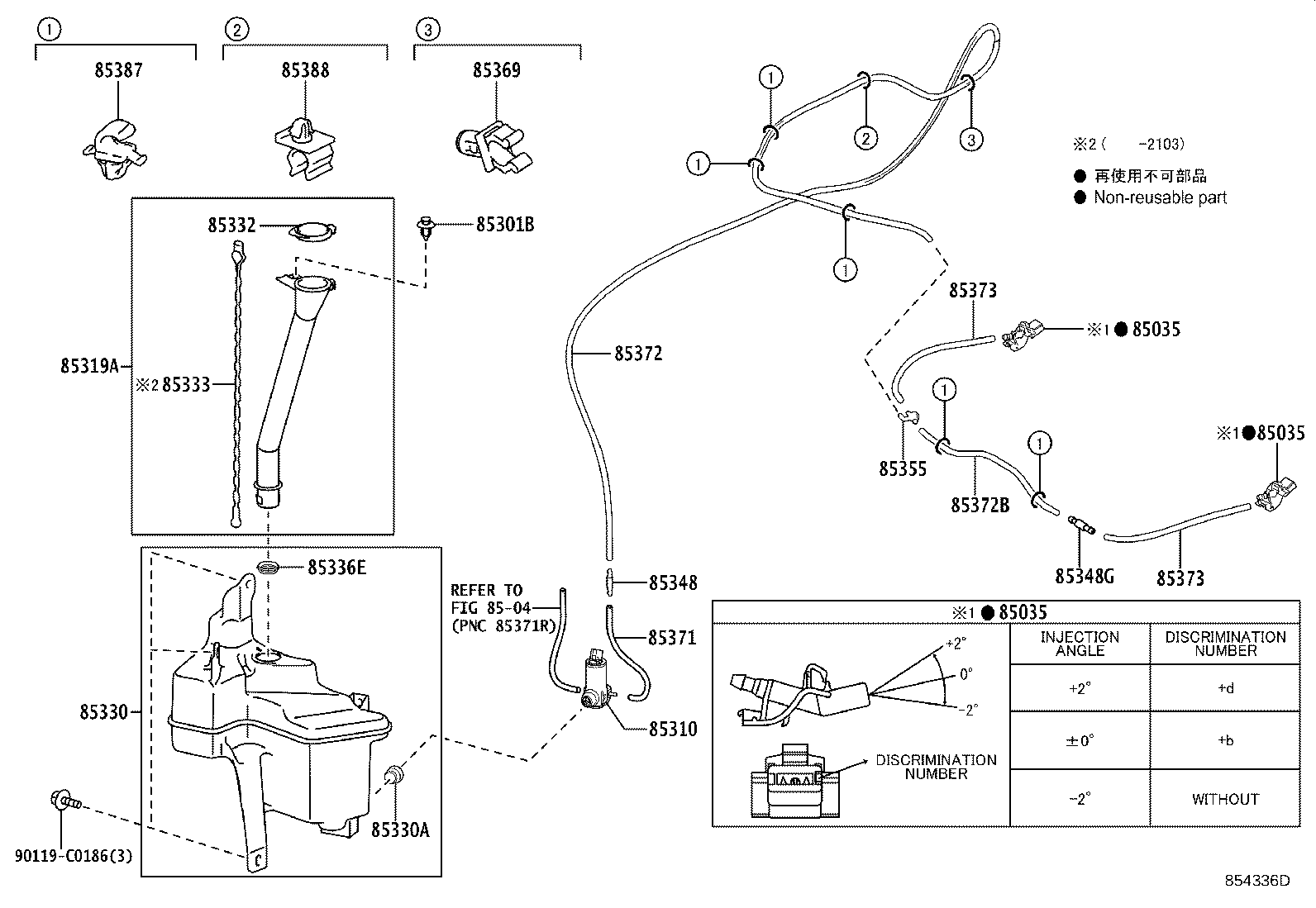

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 85035 — Nozzle Sub-assy, Washer | ||||
| 85381-30220 note |
Nozzle Sub-assy, Washer
2020-05 → —
|
KPX10 | — | |
| 85381-30230 note |
Nozzle Sub-assy, Washer
2020-05 → —
|
KPX10 | — | |
| 85381-30240 note |
Nozzle Sub-assy, Washer
2020-05 → —
|
KPX10 | — | |
| 85301B — Clip, Washer | ||||
| 90467-07214 |
Clip, Washer
2020-05 → —
|
KPX10 | — | |
| 85310 — Motor And Pump Assy, Windshield Washer | ||||
| 85330-47090 |
Motor And Pump Assy, Windshield Washer
2020-05 → 2020-12
ended
|
KPX10 | — | |
| 85330-47091 |
Motor And Pump Assy, Windshield Washer
2021-01 → 2021-02
ended
|
KPX10 | — | |
| 85330-47091 |
Motor And Pump Assy, Windshield Washer
2021-02 → —
|
KPX10 | — | |
| 85319A — Hose, Inlet | ||||
| 85319-F4110 |
Hose, Inlet
2020-05 → 2021-03
ended
|
KPX10 | — | |
| 85319-F4111 |
Hose, Inlet
2021-03 → —
|
KPX10 | — | |
| 85330 — Jar Assy, Windshield Washer | ||||
| 85315-F4110 |
Jar Assy, Windshield Washer
2020-05 → —
|
KPX10 | — | |
| 85330A — Bush, Windshield Washer Jar | ||||
| 90068-32006 |
Bush, Windshield Washer Jar
2020-05 → —
|
KPX10 | — | |
| 85332 — Cap, Windshield Washer Jar | ||||
| 85316-0D200 |
Cap, Windshield Washer Jar
2020-05 → —
|
KPX10 | — | |
| 85333 — Filter, Windshield Washer Jar | ||||
| 85318-F4110 |
Filter, Windshield Washer Jar
2020-05 → 2021-03
ended
|
KPX10 | — | |
| 85336E — Packing, Windshield Washer Inlet Hose | ||||
| 85336-30160 |
Packing, Windshield Washer Inlet Hose
2020-05 → —
|
KPX10 | — | |
| 85348 — Joint, Windshield Washer Hose, NO.1 | ||||
| 85375-0D030 |
Joint, Windshield Washer Hose, NO.1
2020-05 → —
|
KPX10 | — | |
| 85348G — Joint, Windshield Washer Hose, NO.2 | ||||
| 85375-0D030 |
Joint, Windshield Washer Hose, NO.2
2020-05 → —
|
KPX10 | — | |
| 85355 — Valve, Windshield Washer Hose | ||||
| 85321-28020 |
Valve, Windshield Washer Hose
2020-05 → —
|
KPX10 | — | |
| 85369 — Clamp | ||||
| 85371-52110 |
Clamp
2020-05 → —
|
KPX10 | — | |
| 85371 — Hose, Windshield Washer (FROM MOTOR TO JOINT) | ||||
| 90068-33133 note |
Hose, Windshield Washer (FROM MOTOR TO JOINT)
2020-05 → —
|
KPX10 | — | |
| 85372 — Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1 | ||||
| 90068-33319 note |
Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
2020-05 → —
|
KPX10 | — | |
| 85372B — Hose, Windshield Washer (FROM JOINT TO JOINT), NO.2 | ||||
| 90068-33317 note |
Hose, Windshield Washer (FROM JOINT TO JOINT), NO.2
2020-05 → —
|
KPX10 | — | |
| 85373 — Hose, Windshield Washer (FROM JOINT TO NOZZLE) | ||||
| 90068-33320 note |
Hose, Windshield Washer (FROM JOINT TO NOZZLE)
2020-05 → —
|
KPX10 | — | |
| 85387 — Clamp NO.1 (FOR WINDSEIELD WASHER) | ||||
| 85371-0A020 note |
Clamp NO.1 (FOR WINDSEIELD WASHER)
2020-12 → —
|
KPX10 | — | |
| 85371-12040 |
Clamp NO.1 (FOR WINDSEIELD WASHER)
2020-05 → 2020-12
ended
|
KPX10 | — | |
| 85371-12040 note |
Clamp NO.1 (FOR WINDSEIELD WASHER)
2020-12 → —
|
KPX10 | — | |
| 85388 — Clamp NO.2 (FOR WINDSEIELD WASHER) | ||||
| 85371-0A010 note |
Clamp NO.2 (FOR WINDSEIELD WASHER)
2020-12 → —
|
KPX10 | — | |
| 85371-32020 |
Clamp NO.2 (FOR WINDSEIELD WASHER)
2020-05 → 2020-12
ended
|
KPX10 | — | |
| 85371-32020 note |
Clamp NO.2 (FOR WINDSEIELD WASHER)
2020-12 → —
|
KPX10 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
