Toyota Izoa
2020-05 → 2022-07 · chassis KPX10 · catalogue 539310 · General
Supported model
Data version 2023-05

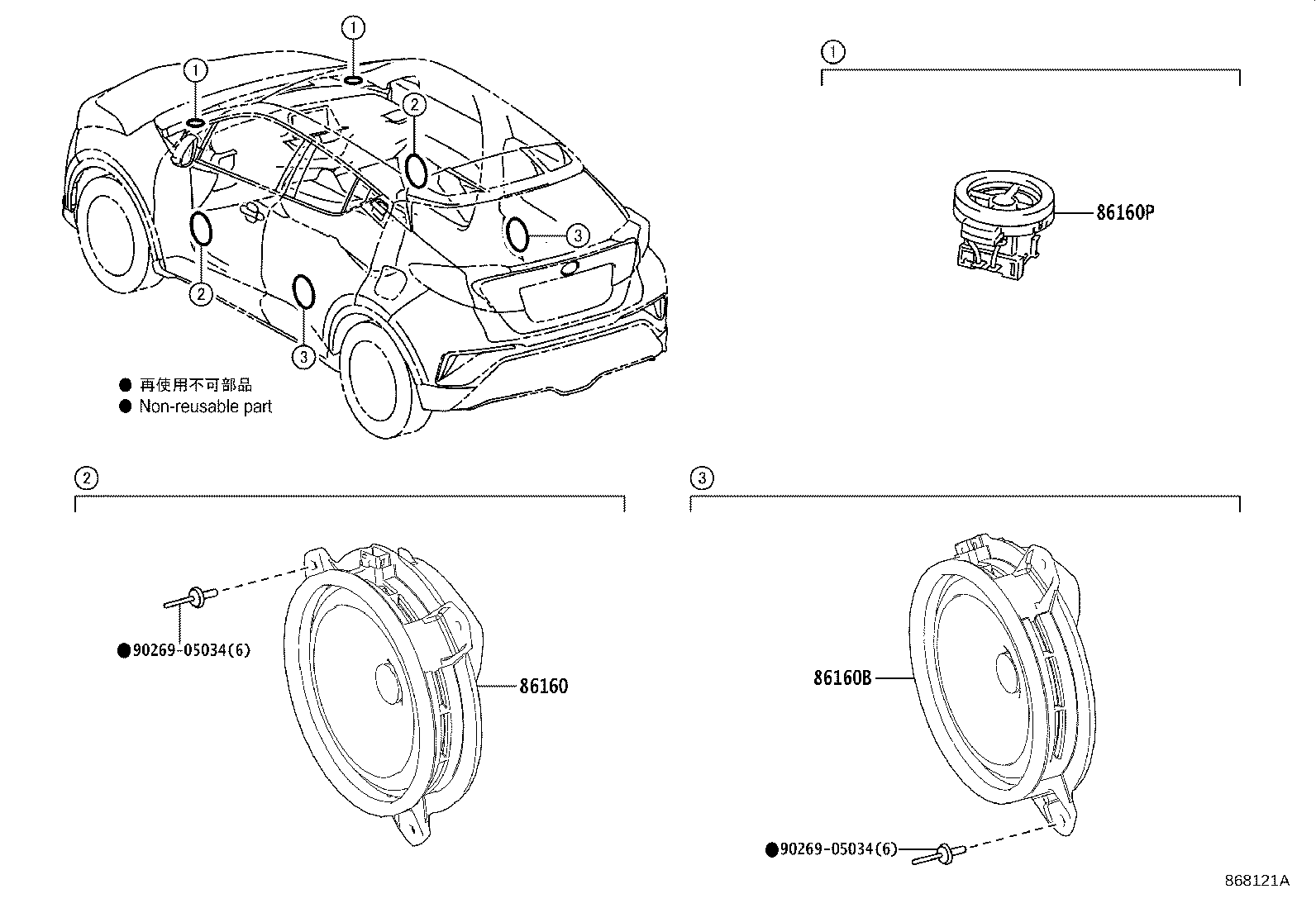

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 86160 — Speaker Assy, Front NO.1 | ||||
| 86160-0D380 |
Speaker Assy, Front NO.1
2020-05 → —
|
KPX10 | — | |
| 86160B — Speaker Assy, Rear | ||||
| 86160-0D380 |
Speaker Assy, Rear
2020-05 → —
|
KPX10 E,N | — | |
| 86160P — Speaker Assy, Front NO.2 | ||||
| 86160-0D300 |
Speaker Assy, Front NO.2
2020-05 → —
|
KPX10 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
