Toyota Izoa
2020-05 → 2022-07 · chassis KPX10 · catalogue 539310 · General
Supported model
Data version 2023-05

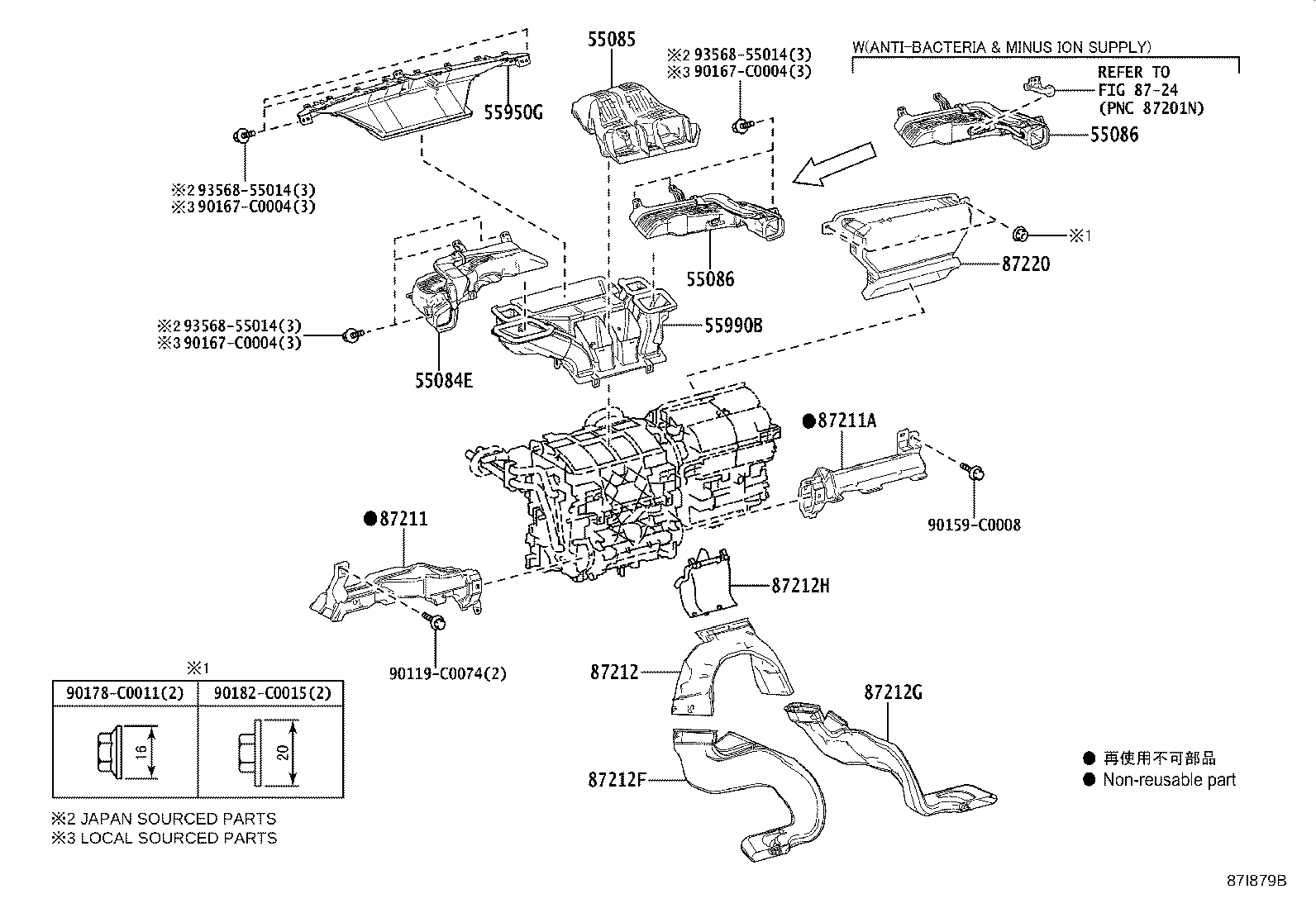

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 55084E — Duct Sub-assy, Heater TO Register, NO.1 | ||||
| 55084-F4070 |
Duct Sub-assy, Heater TO Register, NO.1
2020-05 → —
|
KPX10 | — | |
| 55085 — Duct Sub-assy, Heater TO Register, NO.2 | ||||
| 55085-F4050 |
Duct Sub-assy, Heater TO Register, NO.2
2020-05 → —
|
KPX10 | — | |
| 55086 — Duct Sub-assy, Heater TO Register, NO.3 | ||||
| 55086-F4080 |
Duct Sub-assy, Heater TO Register, NO.3
2020-05 → —
|
KPX10 D,N | — | |
| 55086-F4090 |
Duct Sub-assy, Heater TO Register, NO.3
2020-05 → —
|
KPX10 E | — | |
| 55950G — Nozzle Assy, Defroster | ||||
| 55950-F4050 |
Nozzle Assy, Defroster
2020-05 → —
|
KPX10 | — | |
| 55990B — Nozzle Assy, Defroster, Lower | ||||
| 55990-F4040 |
Nozzle Assy, Defroster, Lower
2020-05 → —
|
KPX10 | — | |
| 87211 — Duct, Air, NO.1 | ||||
| 87211-F4110 |
Duct, Air, NO.1
2020-05 → —
|
KPX10 | — | |
| 87211A — Duct, Air, NO.2 | ||||
| 87211-F4120 |
Duct, Air, NO.2
2020-05 → —
|
KPX10 | — | |
| 87212 — Duct, Air, Rear NO.1 | ||||
| 87215-F4030 |
Duct, Air, Rear NO.1
2020-05 → —
|
KPX10 | — | |
| 87212F — Duct, Air, Rear NO.2 | ||||
| 87213-F4040 |
Duct, Air, Rear NO.2
2020-05 → —
|
KPX10 | — | |
| 87212G — Duct, Air, Rear NO.3 | ||||
| 87212-F4040 |
Duct, Air, Rear NO.3
2020-05 → —
|
KPX10 | — | |
| 87212H — Duct, Air, Rear NO.4 | ||||
| 87413-F4030 |
Duct, Air, Rear NO.4
2020-05 → —
|
KPX10 | — | |
| 87220 — Duct Assy, Air | ||||
| 87220-F4040 |
Duct Assy, Air
2020-05 → —
|
KPX10 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
